Allied

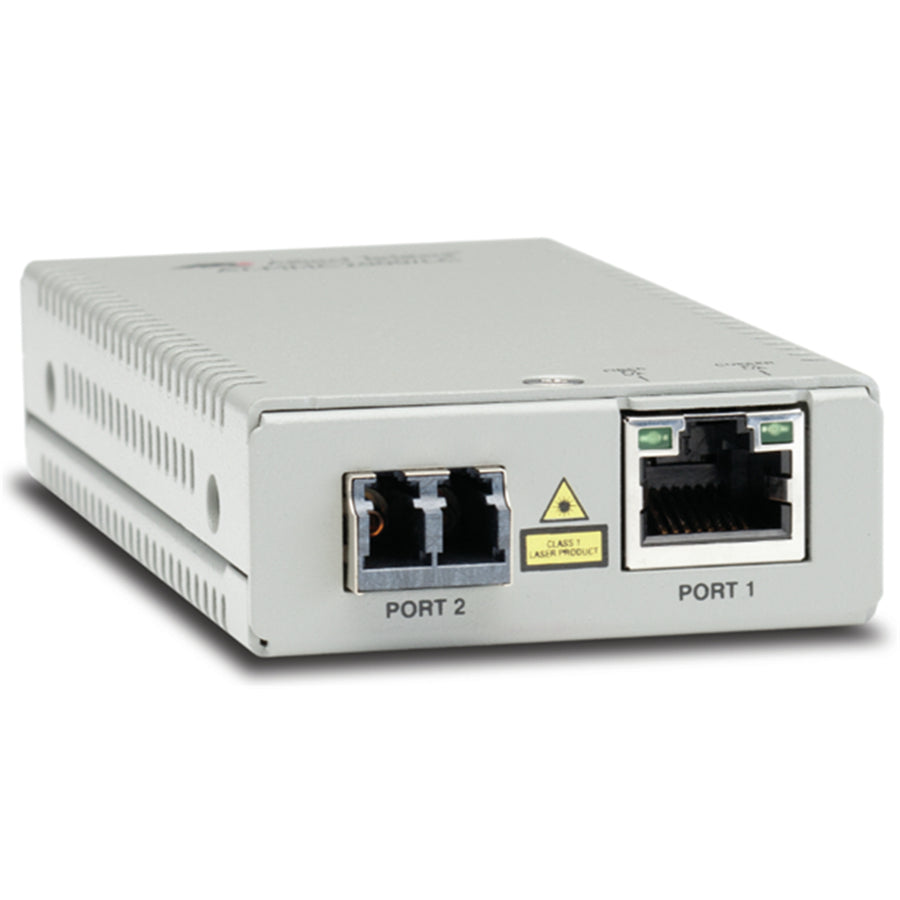

Allied Telesis AT-MMC2000/LC-960 10/100/1000T TO 1000SX/LC MM MEDIA RATE CONVERTER MULTI-REGION PSU TAA FEDERAL
$718.26
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Allied Telesis AT-MMC2000/LC-960 10/100/1000T TO 1000SX/LC MM MEDIA RATE CONVERTER MULTI-REGION PSU TAA FEDERAL
Specifications
Technical Specifications
| Manufacturer part number | AT-MMC2000/LC-960 |
|---|---|
| LED indicators | Activity, Link |
| Product colour | Grey |
| Safety | FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI |
| Certification | CE, EN55024, EN61000-3-2, EN61000-3-3 |
| Input voltage | 12 V |
| Input current | 0.14 A |
| Power consumption (typical) | 1.7 W |
| Power over Ethernet (PoE) | Yes |
| Width | 54.9 mm |
| Depth | 101.6 mm |
| Height | 21.8 mm |
| Weight | 170 g |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | 30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Maximum data transfer rate * | 1000 Mbit/s |
| Converter input interface | 10Base-T,100Base-T,1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE-SX |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| Duplex system | Full |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector * | LC |
| DC-in jack | Yes |
| Maximum transfer distance * | 2000 m |
| Wavelength * | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cl | 50/125,62.5/125 µm |
| Tx power (min) | 20 dBmW |
| Tx power (max) | 14 dBmW |
| Rx power (min) | 32 dBmW |
| Product type | Network Accessories |
| Weight | 1.01 kg |
| Warranty | 12 months |
| Brand | Allied |
|---|---|
| Product Type | Network Accessories |
| Weight | 1.01 kg |
| Warranty |
|---|
