Allied AT-IMC2000T/SP-980
Allied AT-IMC2000T/SP-980
Allied

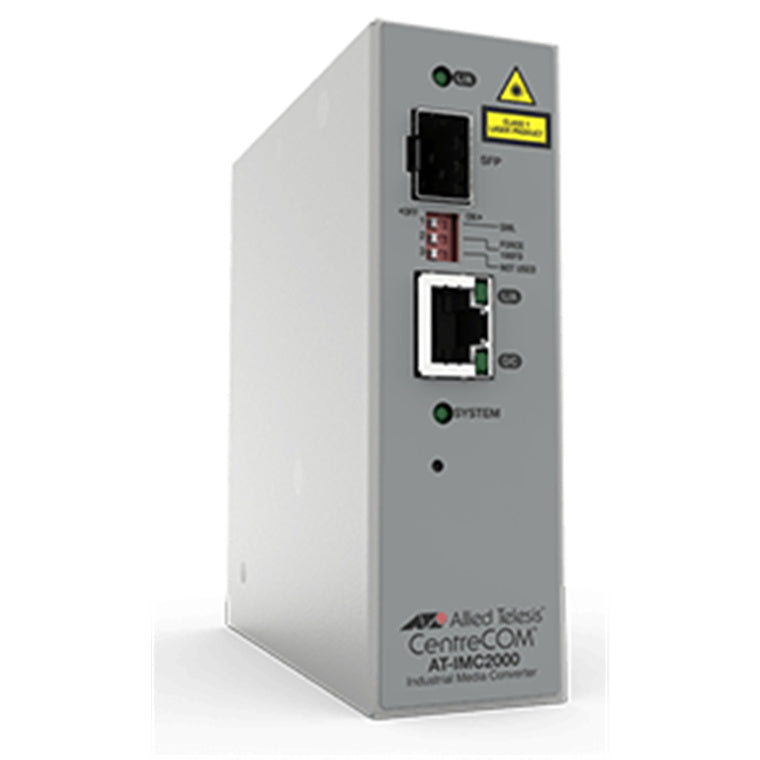

Allied Telesis IMC2000T/SP Transceiver / Media Converter - 1 x Network (RJ-45) - Gigabit Ethernet - 10/100/1000Base-T - 1000Base-X - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Standalone

SKU: AT-IMC2000T/SP-980 ● In Stock
$1,162.61
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Allied Telesis IMC2000T/SP Transceiver / Media Converter - 1 x Network (RJ-45) - Gigabit Ethernet - 10/100/1000Base-T - 1000Base-X - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Standalone - Rail-mountable - TAA Compliant

Specifications

Technical Specifications

Manufacturer part number AT-IMC2000T/SP-980
[Left LED] Green The port has established a link to a network device [Left LED] Blinking Green Activity [Left LED] Off The port has not established a link to a network device [PoE Power] Green The
[Left LED] Blinking Green Activity [Left LED] Off The port has not established a link to a network device [PoE Power] Green The twisted-pair port is connected to a powered device and is providing power [PoE
[Left LED] Off The port has not established a link to a network device [PoE Power] Green The twisted-pair port is connected to a powered device and is providing power [PoE Power] Off The twisted
[PoE Power] Green The twisted-pair port is connected to a powered device and is providing power [PoE Power] Off The twisted-pair port is not supplying power to the network device DIP Switch SML On
[PoE Power] Off The twisted-pair port is not supplying power to the network device
SML On: Smart MissingLink feature is enabled Off: Smart MissingLink feature is disabled
100FD Off: Auto Negotiate On: Forced 100-FD on copper
Remote PoE+ Control Off: Turned off On: PoE power is forced off when fiber link goes down
Green The port has established a link to a network device
Blinking Green Activity
Off The port has not established a link to a network device
Forwarding/filtering rate 1,488,000pps for 1Gbps 148,880pps for 100Mbps 14,880pps for 10Mbps
Latency 14.31sec (64 byte packet, 100Mbps full-duplex)
Maximum packet 10,000 bytes size
Wavelength 1310 nm IMC200 (SC) 850 nm IMC2000 (SC)
Fiber cable IMC2000 (SC) Up to 2 km (100Base-FX) on OM1/ OM2 Up to 275 m (1000Base-SX) OM1 Up to 550 m (1000Base-SX) OM2
SFP See specific SFP, SMF datasheet at www.alliedtelesis.com
IMC200 (SC) Min -19 dBm Max -14 dBm
IMC2000 (SC) Min -9.5 dBm Max -4 dBm
IMC200 (SC) Min -32 dBm Max -3 dBm
IMC2000 (SC) Min -17 dBm Max -3 dBm
PoE 48-57V DC
PoE+ 51-57V DC
Non-PoE 12--48V DC
Operating mode IEEE 802.3at, PoE+, 30W LTPoE++, 4-pair up tp 70W
Maximum power 70W
Operating temperature 40ºC to 75ºC (-40°F to 167°F)
Storage temperature 40ºC to 85ºC (-40°F to 180°F)
Operating altitude Up to 3,048m (10k ft)
Relative humidity 5% to 95% (non-condensing)
Dimensions 11.1 cm x 9.6 cm x 3.5 cm
(W x D x H) (4.4 in x 3.8 in x 1.4 in)
Weight 0.748 kg (1.65 lb)
Safety UL 62368-1, EN 62368-1 UL 60950-1 (UL mark) CAN/CSA C22.2 No. 60950-1 (cUL mark) EN 60950-1 (TUV mark) IP30
Electrical Approvals and Compliances EMI/Emission & Stability FCC Class A EN55024 (immunity standard) EN55032 Class A EN55035 VCCI Class A RoHS
Product type Network Accessories
Weight 1.01 kg
Warranty 12 months
