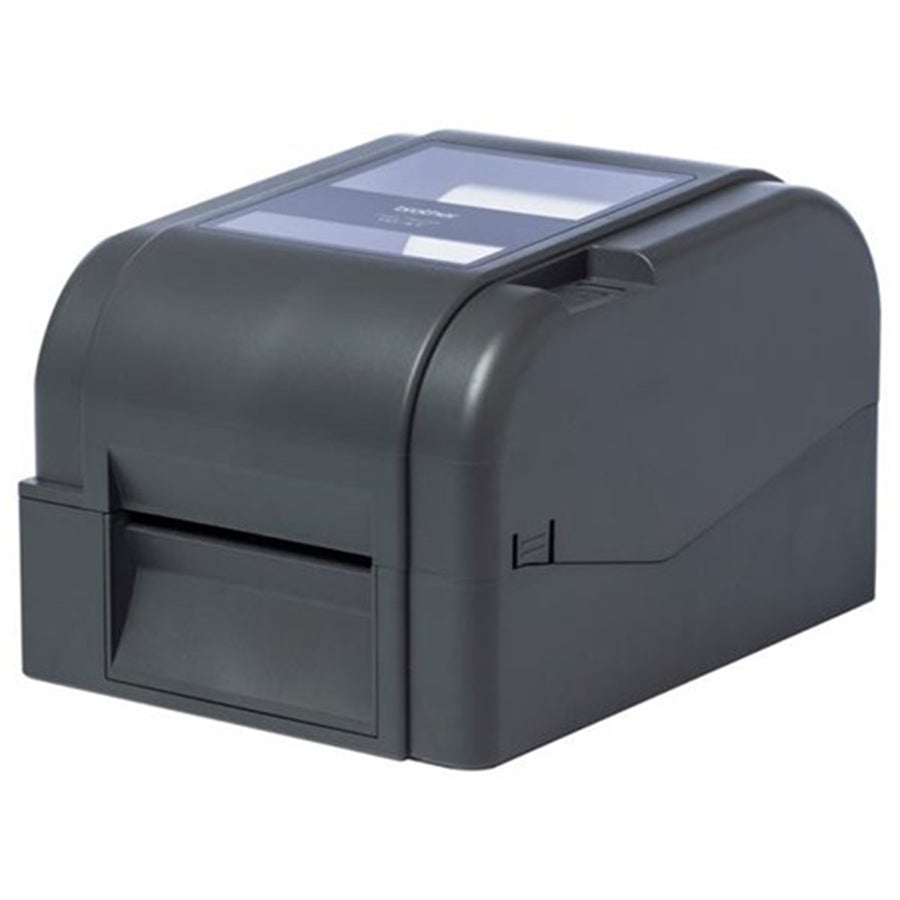

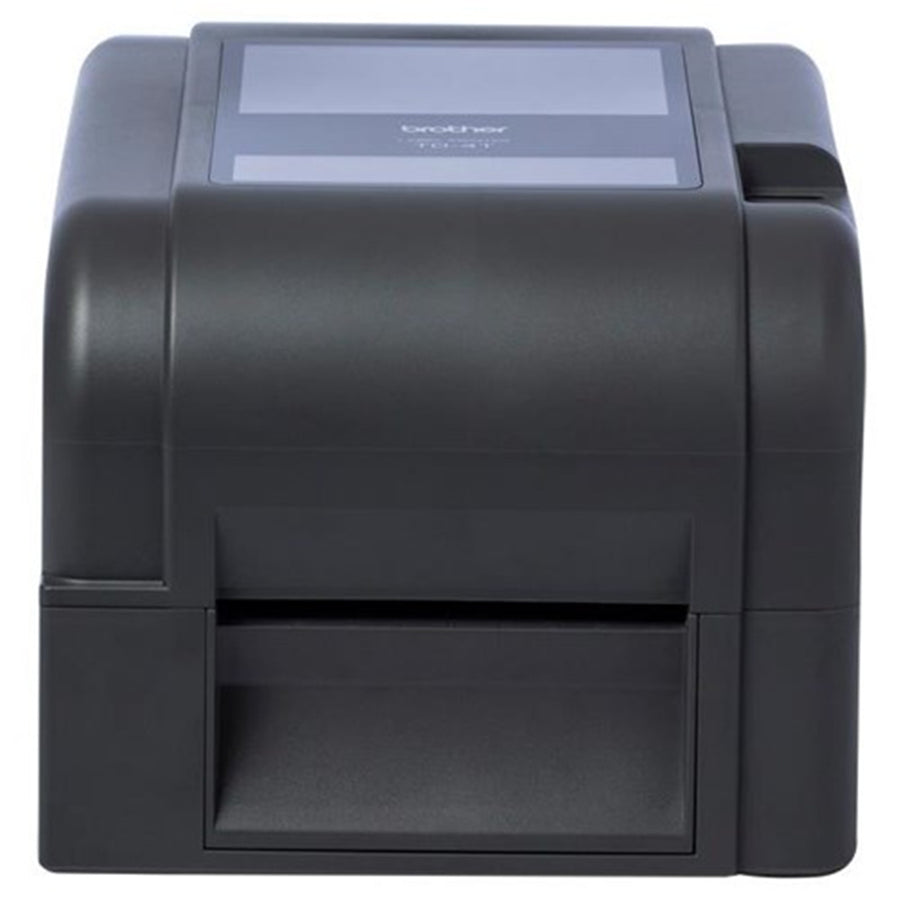

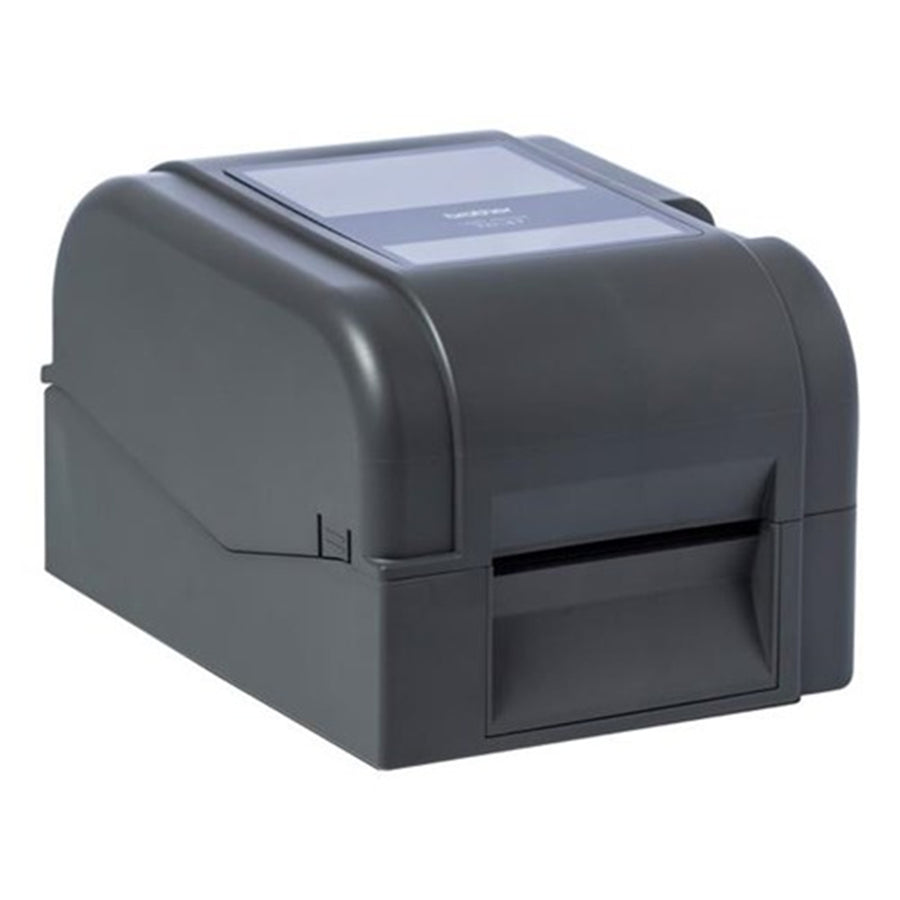

Brother TD4520TN Thermal Direct Transfer Label Printer, to print NZ Post, Courier Post Or Pace Labels
Features
High-quality thermal transfer printing
The 300dpi print resolution produces incredibly crisp, easy-to-read text and barcodes using thermal transfer ink ribbons and media. As your printing needs change, so too can the Brother label printer.

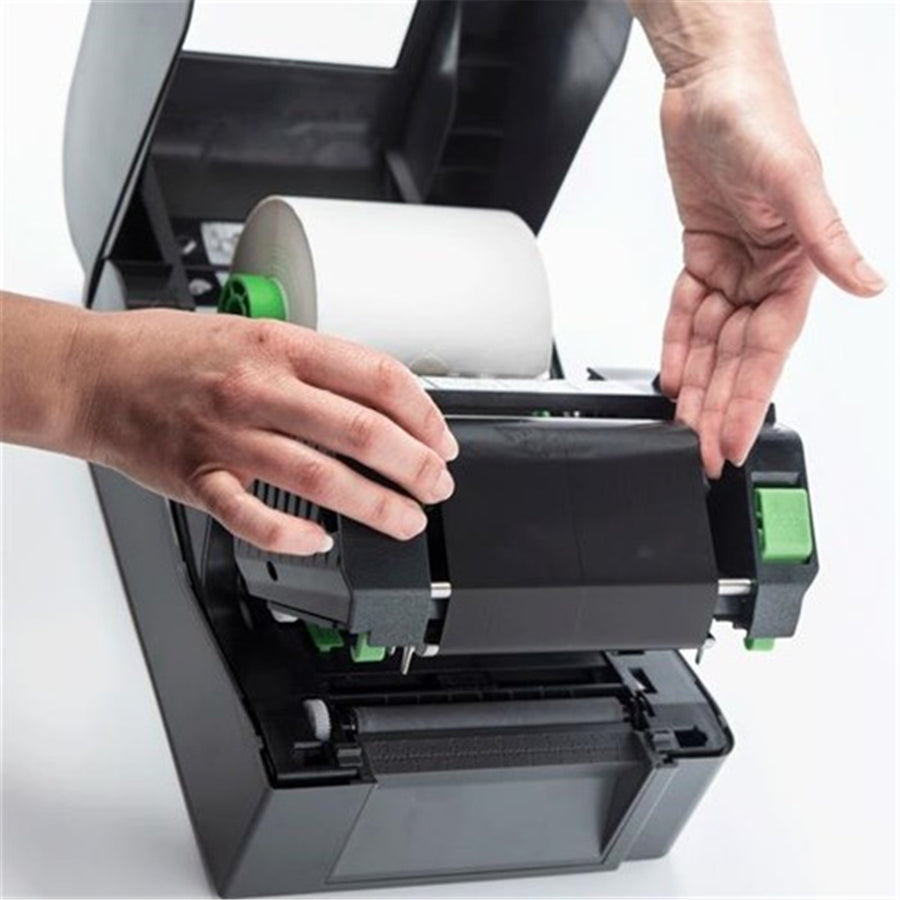

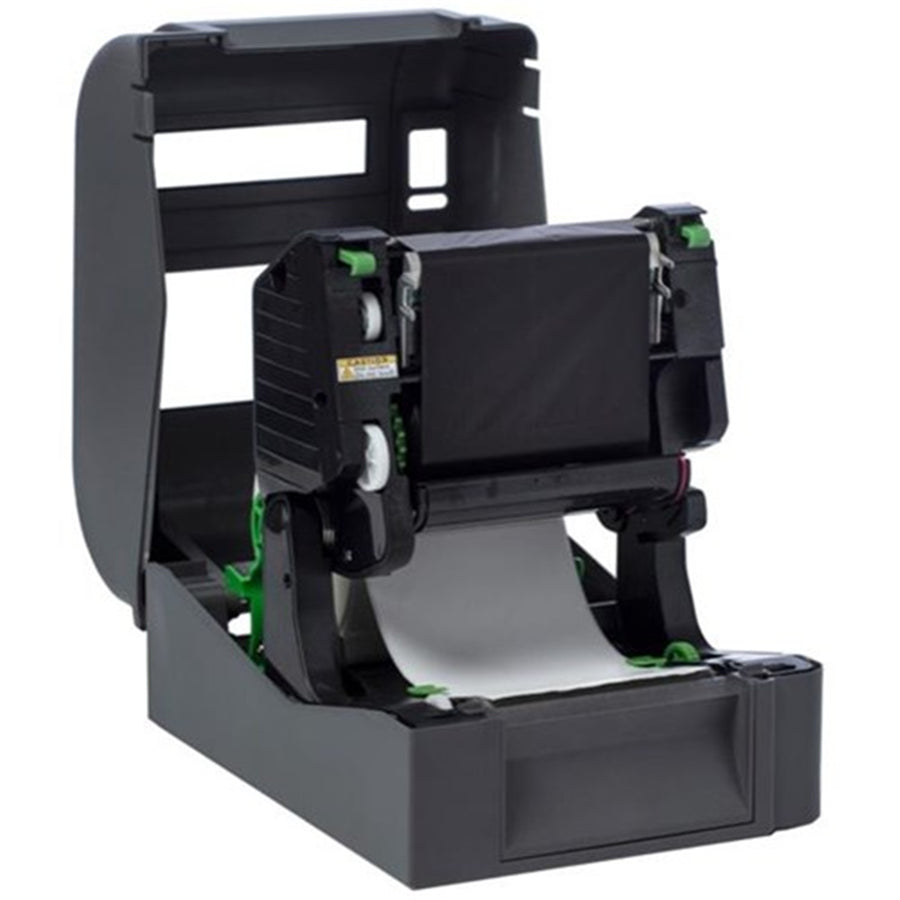

High capacity thermal transfer print ribbons in various materials depending on application
Large capacity ribbons of up to 300 metres can be installed, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.

Industry-standard printer commands, as standard
Print from Windows using the standard printer driver, or integrate the Brother label printer into your legacy systems using ZPL/ZPL2 or EPL printer commands without needing to change your existing software.

Fast print speed and processing to improve efficiency
A fast print speed of 152.4mm/second means less time waiting for your labels to print and more time being productive.

Connectivity to suit your requirements
With integrated USB, Ethernet, Serial ports, Bluetooth, and WiFi as standard, this label printer will have no problems connecting to your existing equipment and infrastructure.

Optional accessories to further improve productivity
Add a durable label cutter, automatic label peeler or external roll holder for larger capacity rolls to further enhance your efficiency and provide maximum printer up-time.

Redeem your Brother Cashback (If applicable)
To redeem any Brother cashback that may be applicable to your printer purchase (cash back offers and valid dates are shown in the product title) click here
Specifications
Technical Specifications
| Maximum label width (mm) | 102 |
|---|---|
| Office | Industrial |
| Buttons | Power, Feed |
| Database upload from PC | Yes |
| Flash RAM | 40 MB |
| RAM | 256 MB |
| Technology | Direct thermal |
| Serial | RS232C Original serial cable |
| USB interface | USB Ver. 2.0 (Full Speed) (Type B) |
| Wired network interface | 10/100BASE-TX |
| Dimensions | 180 mm (W) x 224 mm (D) x 155 mm (H) |
| Weight | 2.08 kg |
| AC adaptor | Yes |
| AC adaptor power cord | Yes |
| Others | Documentation |
| Supplies | 1" ribbon paper core, 30m standard wax starter ribbon. |
| USB cable | Yes |
| Linux | Linux |
| Macintosh | Mac OS X 11, OS X 10 10, OS X 10 11, Mac OS X 10 12, Mac OS X 10 13, Mac OS X 10 14, Mac OS X 10 15 |
| Windows | Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2008 (32-bit), Windows Server 2008 (64-bit), Windows Server 2008 R2, Windows Server 2012, Windows 10 (32 and 64 bit), Windows 8.1 (32 and 64 bit), Windows 8, Windows 7 32 and 64 bit |
| 1 dimensional barcode symbologies | Linear: CODE 39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar (Standard (Omnidirectional)/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded), CODE93, POSTNET, UPC/EAN EXTENSION, MSI,Intelligent Mail Barcode |
| Maximum print length | 3000 mm |
| Maximum print width | 104.1 mm |
| Resolution (dpi) | 300 |
| Supported commands | Raster ESC/P P-touch Template ZPL emulation CPCL emulation(CPCL page print mode / CPCL line print mode) SBPL emulation (JP model only) |
| Brand | Brother |
|---|---|
| Product Type | Printers & Office > Labels & Receipt Paper |
| Weight | 1.859 kg |
