Chief
Chief TS318SU Swing Arm Mount TV Mounts
$800.00
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features

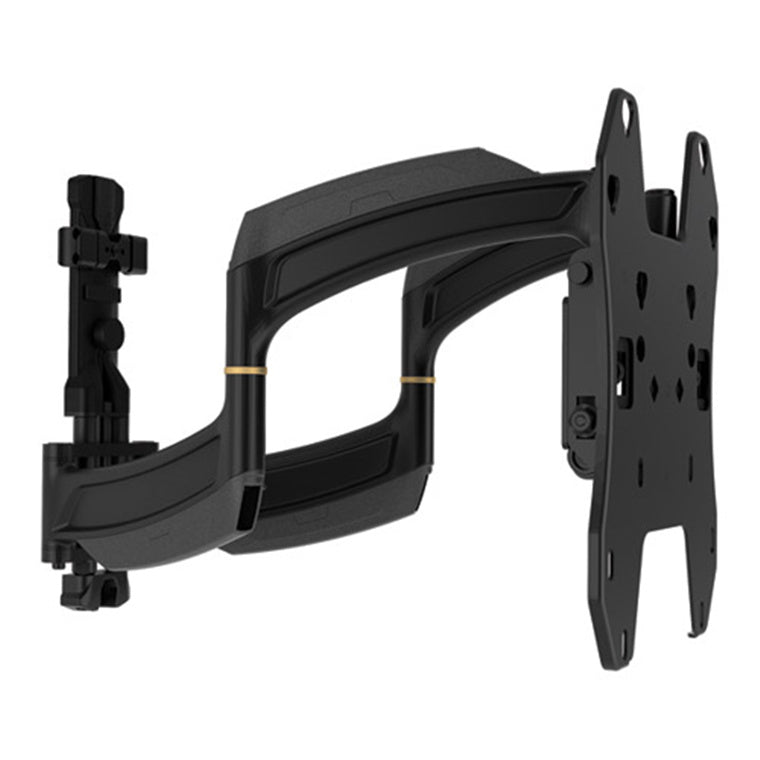

Chief TS318SU Swing Arm Mount TV Mounts
Specifications
Technical Specifications
| Manufacturer part number | TS318SU |
|---|---|
| Certifications | UL Listed |
| Color | Black |
| Manual Height Adjustment | 1" (25 mm) |
| Maximum Extension | 18" (457.2 mm) |
| Maximum Screen Thickness | 3" (76 mm) |
| Minimum Depth | 1.8" (46 mm) |
| Mounting Pattern Compatibility (Universa | 100 x 100mm - 600 x 400mm |
| Overall Dimensions (H x W x D) | 13.5" x 22.6" x 1.8" (343 x 574 x 46mm) |
| Pivot Numerical Value | ±90° (depending on screen width) |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 23 lbs (10.43 kg) |
| Solution Type | Universal |
| Tilt | + 15° , - 15° |
| Typical Screen Sizes | 32 - 65" |
| Wall Stud Compatibility In | Single Stud |
| Weight Capacity | 75 lbs (34 kg) |
| Orientation | Landscape |
| Product type | TV Mounts/Accessory |
| Weight | 1.01 kg |
| Warranty | 12 months |
| Brand | Chief |
|---|---|
| Product Type | TV Mounts/Accessory |
| Weight | 1.01 kg |
| Warranty |
|---|
