Cisco ATA192-3PW-K9
Cisco ATA192-3PW-K9
Cisco ATA192-3PW-K9
Cisco

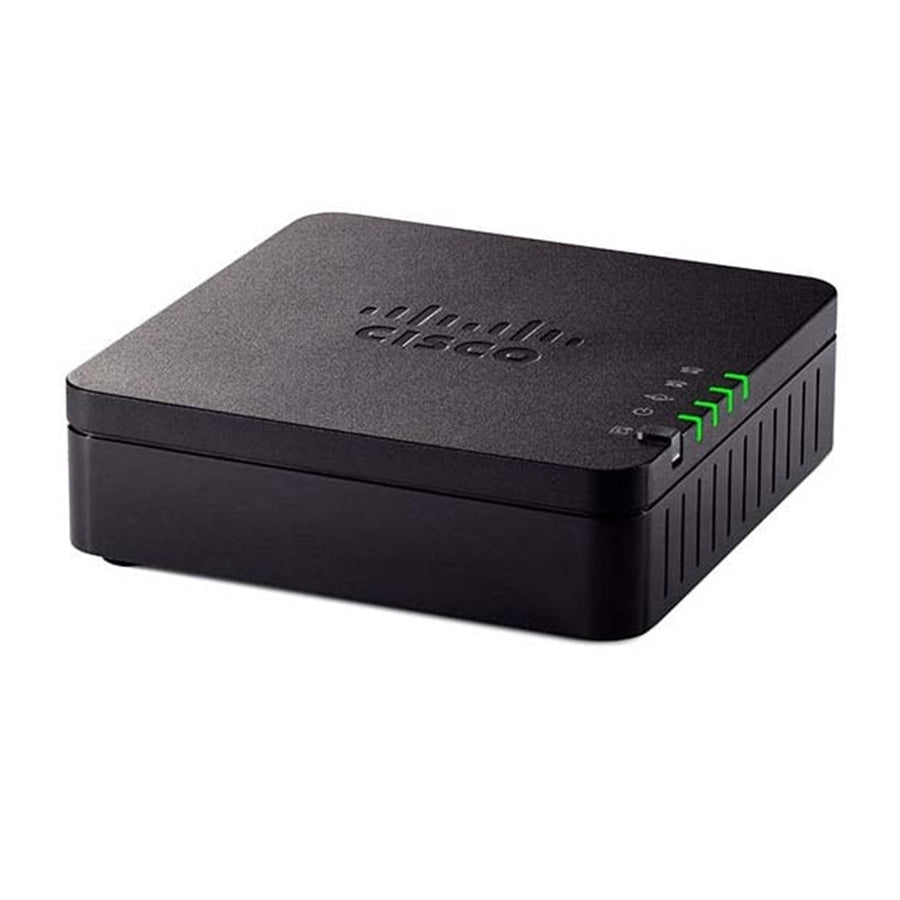

Cisco ATA192-3PW-K9 2-Port Analog Telephone Adapter for Multiplatform

SKU: ATA192-3PW-K9 ● In Stock
$387.83
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Cisco

Cisco MGBSX1 Gigabit SX Mini-GBIC SFP Transceiver

$159.13
inc GST ▲ +GST
CISCO

CISCO DBS-210-3PC-AU-K9 Cisco IP DECT Base Station 210 Series 3PCC AU and NZ

$918.26
inc GST ▲ +GST
CISCO

CISCO IW-ANT-OMV-2567-N 2.4/5/6 GHz 7dBi Omni Vertical Polarized Antenna N Conn

$688.70
inc GST ▲ +GST
CISCO

CISCO C9K-ADPT-BRKT-12T Power adaptor bracket for 12T compact switches spare

$41.74
inc GST ▲ +GST
CISCO

CISCO CAB-L240-10-SM-TM 10-ft3M Ultra Low Loss LMR240 Cable with SMA/TNC Connector

$280.00
inc GST ▲ +GST

Features

Cisco ATA192-3PW-K9 2-Port Analog Telephone Adapter for Multiplatform

Specifications

Technical Specifications

Manufacturer part number ATA192-3PW-K9

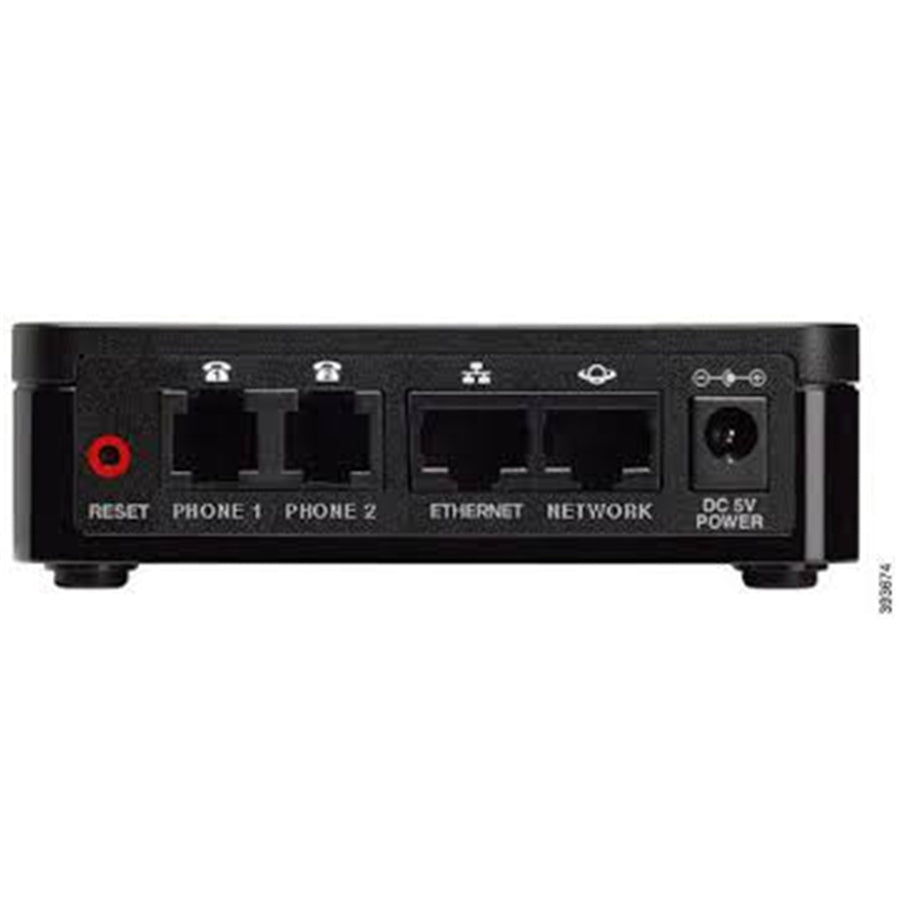

Hardware Interface: Two RJ-11 FXS ports, two 10/100 Mbps RJ-45 Ethernet ports, - Power button: Reset / Problem Reporting (PRT) - LED indicators: Power, Network, Phone 1, Phone 2, PRT - Wa
Subscriber Line Interface Circuit (SLIC) Ring voltage: 40 to 90 Vpk configurable - Ring frequency accuracy: 1% - Ring waveform: Trapezoidal or sinusoidal - Maximum ringer load: 3 Ringer Equivalence Numbers (RENs) - On-h
Networking MAC address - IPv4 only - IPv6 only - IPv4/IPv6 dual stack - Session Initiation Protocol (SIP) - Transmission Control Protocol (TCP) - User Datagram Protocol (UDP) - Real Time Pr
Routing Routing and bridging - Static and dynamic address assignment - Network Address Translation (NAT) - DHCP client reservation - MAC address cloning - Port forwarding - DMZ mode - VP
Quality of Service (QoS) IEEE 802.1p/Q (QoS and VLAN tagging) - Differentiated Services (DiffServ), Type of Service (ToS)
Telephony Anonymous call and call blocking - Call forwarding: No answer, busy, and all - Call hold and resume - Caller ID blocking - Caller ID generation (name and number): Bellcore, BT, a
Audio Codec: G.711 a-law, G.711 ?-law, G.729a, G.729ab, G.726 - Codec name assignment - Full-duplex audio - Echo cancellation - Voice activity detection - Silence suppression - Configu
Fax Real-time fax over IP via T.38 fax relay (Group 3) - Fax pass-through via G.711 (Group 3) - Fax tone detection and pass-through - Automatic negotiation on transmission rate
Provisioning and management Cloud provisioning (remote configuration) - Web-based administration - Interactive Voice Response (IVR) - Automated provisioning and upgrading via HTTP, HTTPS, and TFTP - TR-069
Security Password-protected system reset to factory default - Password-protected administrator and user access authority - Provisioning, configuration, and authentication - HTTPS with fac
Power DC input voltage: 5V DC at 2.0A maximum - Power consumption: 5W - Switching type (100-240V) automatic - Power adapter: 100-240V and 50-60 Hz (26-34 VA) AC input, with 1.8 m cord
Reliability Mean Time Between Failures (MTBF): 300,000 hours - Operating temperature: 0° to 40°C - Nonoperating temperature: -10° to 60°C - Humidity: Operating 10% to 90%, non-condensing / n
Compliance (regulatory) CE Markings per directives 2014/30/EU and 2014/35/EU
Compliance (safety) UL 60950 Second Edition - CAN/CSA-C22.2 No. 60950 Second Edition - IEC 60950-1:2005 (Second Edition) + A1:2009 + A2:2013 and/or AS/NZS 60950.1:2015
Compliance (EMC) AS/NZS CISPR 32:2015 Class B - CISPR 32: 2015 Class B - EN 55032: 2015 Class B - EN 61000-3-2: 2014 Class A - EN 61000-3-3: 2013 - EN 55024:2010+A1: 2015 - EN 61000-4-2: 2009 - E
General Specifications Dimensions (HxWxD): 100 x 100 x 28 mm - Weight (approx.): 132.1 g
Product type Network Accessories
Weight 1.01 kg
Warranty 12 months
