Cisco MS120-8-HW
Cisco MS120-8-HW
Cisco

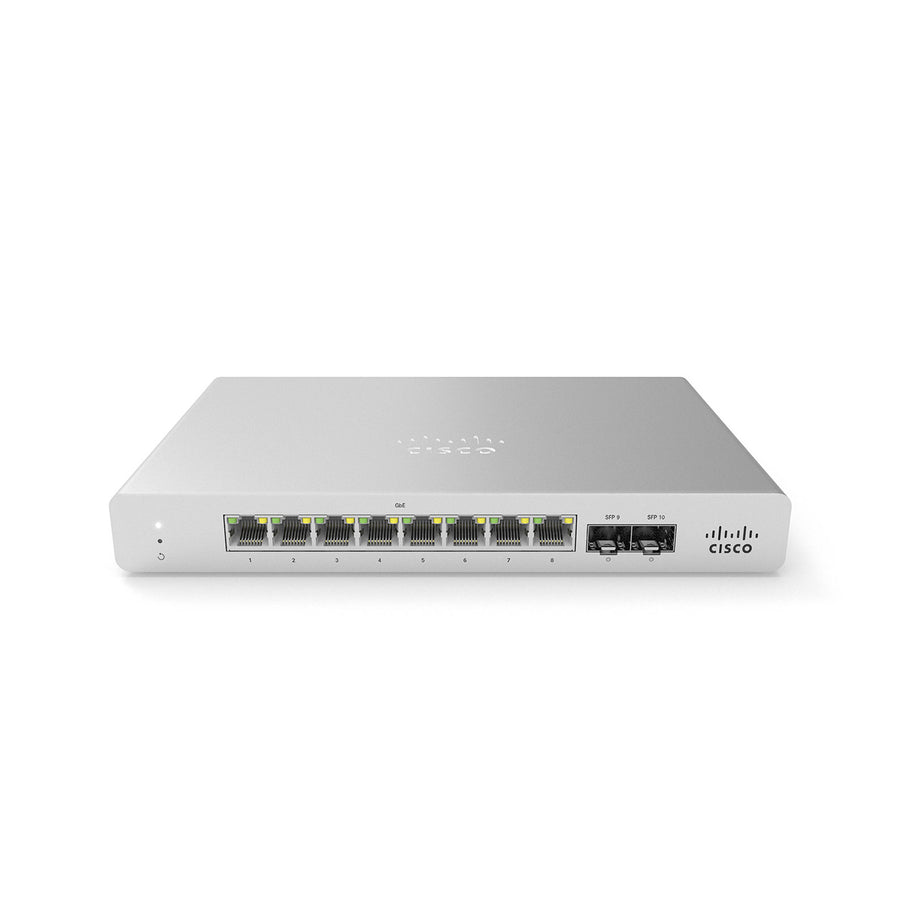

Cisco Meraki MS120-8-HW MS120-8 1G L2 Cloud Managed 8x GIGE Switch

SKU: MS120-8-HW ● In Stock
$1,052.17
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Cisco Meraki MS120-8-HW MS120-8 1G L2 Cloud Managed 8x GIGE Switch

Specifications

Technical Specifications

Manufacturer part number MS120-8-HW
Interfaces 8 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS120-8LP/FP model, available on all ports (maximum of 3
Management Managed via the web with the Meraki cloud management platform Integrated with Meraki wireless and complete portfolio of IT products and solutions Zero-touch remote provisioning (no
Remote diagnostics Email, SMS and mobile push notification alerts1 Cable testing and link failure detection with alerting Live remote packet capture Dynamic and interactive network discovery and topo
Stacking Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities 802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping 802.1Q VLAN and trunking support for up to 4,094 VLANs 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, S
Security Integrated two-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control SSO, Corporate-wide password policy en
Power over Ethernet 802.3af (PoE) 15.4W per port and 802.3at (PoE+) 30W per port Maximum PoE output: 67/124W PoE available on all ports simultaneously
Performance Switching capacity: 20Gbps Forwarding rate: 14.88mpps with standard packet size Jumbo frame support (9578 byte Ethernet frame) Flow control support
Power Power input: 100 - 240 VAC, 47-63 Hz Power consumption: 5 - 161W External power supply for MS120-8, MS120-8 LP
Mounting Wall or utility board mountable with included mount hardware Desktop-mountable with included feet Kensington lock slot included
Environment Operating temperature: 32°F to 104°F (0°C to 40°C), 45°C Humidity: 5 to 95% non-condensing Fanless operation
Regulatory CSA-US (US, Canada) FCC (USA) IC (Canada) CE (Europe) RCM (Australia/New Zealand) RoHS
MTBF MS120-8 1,307,036 MS120-8LP 837,035 MS120-8FP 579,132
Physical dimensions (H×W×D) MS120-8: 1.1" × 8.74" × 5.91" (2.8 × 22.2 × 15cm) MS120-8LP: 1.1" × 8.74" × 5.91" (2.8 × 22.2 × 15cm) MS120-8FP: 1.75" × 8.97" × 8.58" (4.4 × 22.7 × 23cm)
Physical Weight MS120-8: 2.36 lb (1.07 kg) MS120-8LP:2.76 lb (1.25 kg) MS120-8FP: 3.42 lb (1.55 kg)
Product type Switches
Weight 0.5 kg
Warranty 12 months
