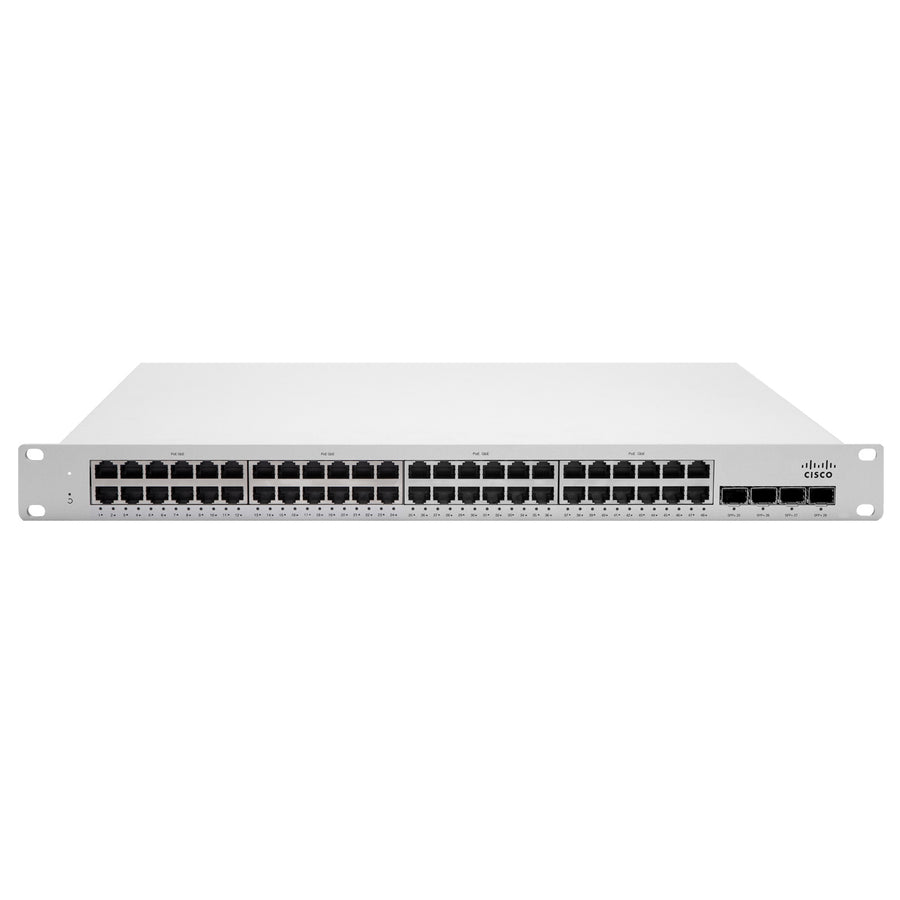

Cisco MS250-48LP-HW
Cisco MS250-48LP-HW
Cisco

Cisco Meraki MS250-48LP-HW MS250-48LP L3 STCK CLD-MNGD 48X GIGE 370W POE SWITCH

SKU: MS250-48LP-HW ● In Stock
$15,262.61
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Cisco Meraki MS250-48LP-HW MS250-48LP L3 STCK CLD-MNGD 48X GIGE 370W POE SWITCH

Specifications

Technical Specifications

Manufacturer part number MS250-48LP-HW
Interfaces 48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS250-24P, available on all ports (maximum of 30W per port for PoE
Management Managed via the cloud using the Meraki dashboard Integrated with Meraki Wireless and complete portfolio of IT products and solutions No-touch remote deployment (no staging needed)
Remote diagnostics Email, SMS and Mobile push notification alerts Cable testing and link failure detection with alerting Live remote packet capture Dynamic and interactive network discovery and topol
Flexible stacking Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models Virtual stacking supports thousands of switch ports in a single logical stack for unified managemen
Ethernet switching capabilities 802.1p Quality of Service prioritization 802.1Q VLAN tagging with 4,094 addressable tags 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) Broadcast storm control 802.1ab Lin
Security Integrated two-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control Corporate wide password policy enforce
Power over Ethernet 802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port Maximum PoE output (48LP/48FP): 370 / 740 W PoE available on all ports simultaneously
Performance Non-blocking switching fabric Switching capacity: 128Gbps (24-port models), 176Gbps (48-port models) Forwarding rate (mpps): 95.24 (24-port models), 127.98 (48-port models) Jumbo F
Layer 3 capabilities Static routing Dynamic routing (OSPFv2) DHCP Server and Relay Warm spare (VRRP) with DHCP Failover
Power Power input: 100 - 240 VAC, 47-63 Hz Power consumption: 24 - 874 W Power Supplies are field-replaceable, one power supply is included
Mounting 1U Rack-mountable with included rack mount hardware 2-post front mounting options available
Environment Operating temperature: 32°F to 104°F (0°C to 40°C) Humidity: 5 to 95% non-condensing Fan control
Regulatory CSA-US (US, Canada) FCC (USA) IC (Canada) CE (Europe) RCM (Australia/New Zealand) RoHS
MTBF at 25°C MS250-48: 392,906 MS250-48LP: 339,906 MS250-48FP: 338,366
Physical dimensions (H×W×D) MS250-48: 1.72" x 19.08" x 20.32"(4.38cm x 48.46cm x 51.6cm) MS250-48LP: 1.72" x 19.08" x 20.32"(4.38cm x 48.46cm x 51.6cm) MS250-48FP: 1.72" x 19.08" x 23.42"(4.38cm x 48.46cm x 5
Physical Weight MS250-48: 11.56 lb (5.24 kg) MS250-48LP: 12.37 lb (5.61 kg) MS250-48FP: 12.83 lb (5.82 kg)
Product type Switches
Weight 1.01 kg
Warranty 12 months
