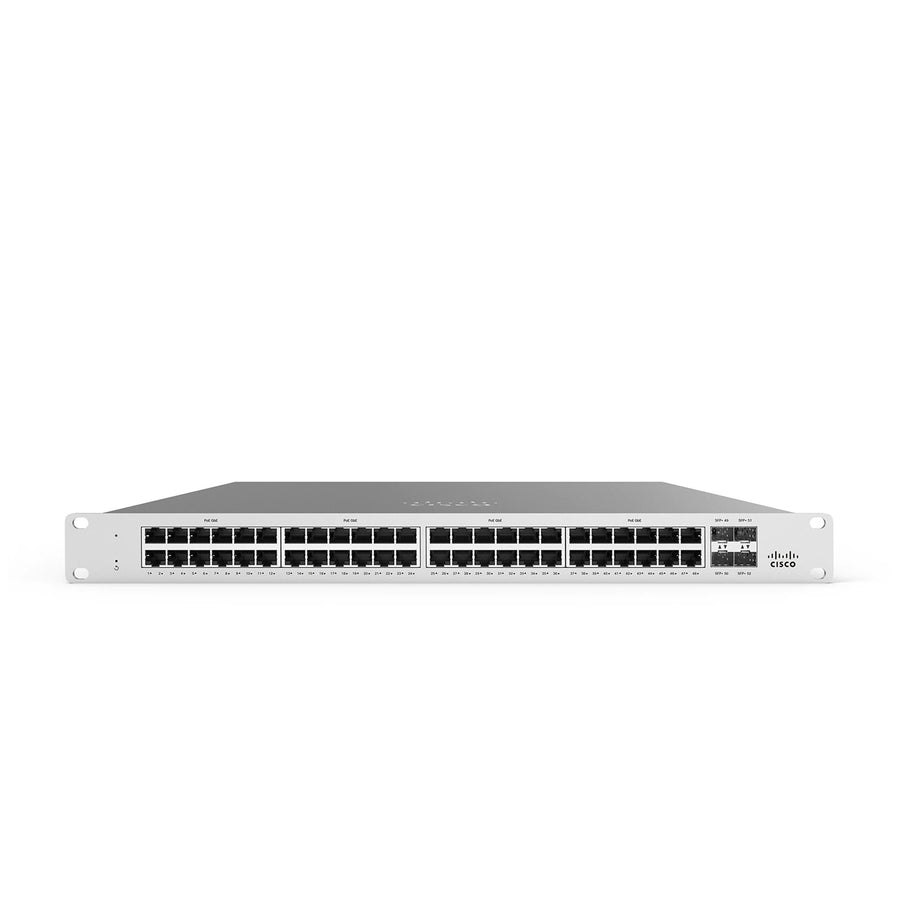

Cisco MS125-48FP-HW
Cisco MS125-48FP-HW
Cisco

Cisco MS125-48FP-HW APL-MERAKI MS125-48FP 10G L2 CLD-MNGD 48X GIGE 740W POE SWITCH

SKU: MS125-48FP-HW ● In Stock
$9,694.78
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Cisco MS125-48FP-HW APL-MERAKI MS125-48FP 10G L2 CLD-MNGD 48X GIGE 740W POE SWITCH

Specifications

Technical Specifications

Manufacturer part number MS125-48FP-HW
Interfaces 48 × 10/100/1000BASE-T Ethernet (RJ45) 4 × 10G SFP+ ports for uplinks Auto-negotiation and crossover detection
Management Managed via the Web with the Meraki cloud management platform Integrated with Meraki wireless and complete portfolio of IT products and solutions Zero-touch remote provisioning (no
Remote Diagnostics Email, SMS, and Mobile push notification alerts Ping, traceroute, cable testing, and link failure detection with alerting Remote packet capture Dynamic and interactive network disc
Stacking Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) 802.1Q VLAN and trunking support for up to 4,094 VLANs 802.1w, 802.1D Rapid Spanning Tree Protocol (
Security Integrated multi-factor authentication for cloud management platform Role-based access control (RBAC) with granular device and configuration control Corporate-wide password policy
Performance Switching capacity: 176 Gbps Forwarding rate: 130.95 mpps Jumbo frame support (9578 byte Ethernet frame) Flow control
Layer 3 DHCP Relay
Power Power input: 100 - 240 V~, 50-60 Hz MS125-48: 21.7-42W max, fanless MS125-48LP: 40.2-439.8 W MS125-48FP: 52-845.4 W
Mounting 1U Rack-mountable with included rack mount hardware 2-post front mounting options available
Environment Operating temperature: 0°C to 45°C 0°C - 40°C at sea level 0°C - 35°C at 10,000 feet for MS125-48 when using MA-SFP-10GB-ER Humidity: 5 to 95% RH
Regulatory CSA-US (US, Canada) FCC (USA) IC (Canada) CE (Europe) RCM (Australia/New Zealand) RoHS For international availability, please contact [email protected]
MTBF at 25°C MS125-48-HW: 1,628,120 MS125-48LP-HW: 287,429 MS125-48FP-HW: 311,726
Physical Specifications (H × W × D) MS125-48FP-HW 1.73" × 17.32" × 13.84" (4.40 × 44 × 34cm) 12.78 (5.80 kg)
Product type Switches
Weight 1.01 kg
Warranty 12 months
