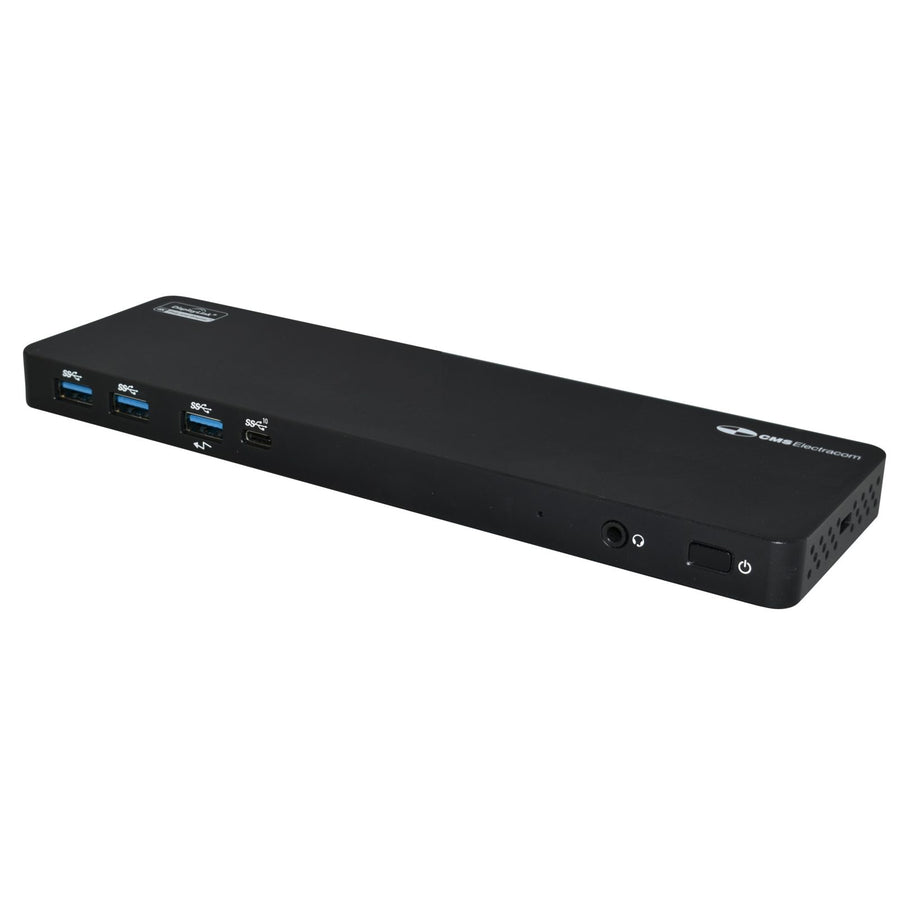

CMS Electracom THD-100 USB-C Dual 4K DisplayLink Dock Station
You May Also Like

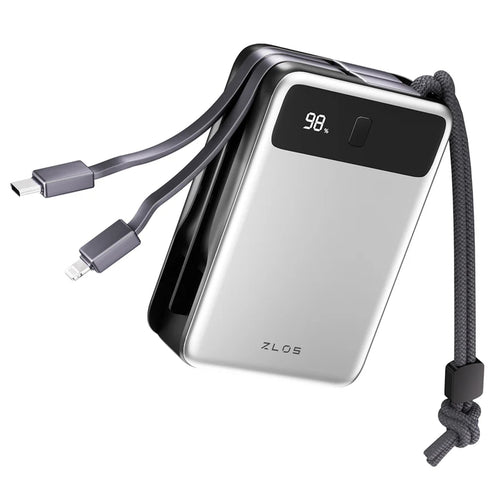

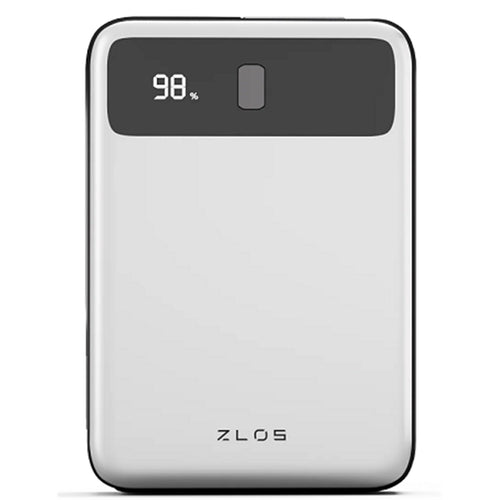

Zlos 20000mAh 65W 3-Output Laptop Power Bank with Dual-Cable & Display
Bonelk KM-322 Wireless Keyboard & Mouse Combo for PC and Mac - White
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox Playstation Smartphone Repair Tools
Features
Universal Docking Station
The Dual Stream 100W USB-C is the first of its kind in the market with the remote firmware update capability while Featuring the latest DL-6950 chipset, CMS Dual Stream Dock is capable of supporting up to 2x4K displays with the option of DisplayPort inputs and/or HDMI port inputs. The Dual Stream Dock delivers 100W charging via a PD 3.0 enabled USB Type-C 3.1 Gen2 Port While supporting multiple displays and high speed data transfer, ethernet and multiple USB3.1 Gen2 Type-A/C ports for desktop peripherals.
- 100W USB-C PD3.0 charging
- Supports dual 4K displays
- Remotely manageable
- Thunderbolt 3 compatible
- DisplayLink DL-6950 chipset
Universally Compatible
The ultimate dock for agile commercial workspaces. It is compatible with most laptop brands and operating systems supporting multiple display outputs, Ethernet, audio and other USB devices. IT administrators can standardise one docking station throughout an entire organisation.
Remote Management
For added productivity the commercial grade hardware has the capability to perform power re-boots and firmware upgrades remotely.
Future Proof
The first USB 3.1 Gen 2, 10Gbps docking station in the market that can deliver 100 watts power for efficient notebook charging which is also Thunderbolt compatible.
Designed for Commercial Enterprise
The THD-100 sets up a commercial workspace to it's full potential. The versatile docking station can be mounted above and below the desk via a softwired integrated power supply housing, freeing updesk space reducing tampering.
Legacy Compatible
THD-100 supports USB-A equipped laptops by way of a USB-C to USB-A adaptor while also supporting DC power. This means it can be used with any computer with a USB port.
Designed for Commercial Enterprise
The THD-100 sets up a commercial workspace to it's full potential. The versatile docking station can be mounted above and below the desk via a softwired integrated power supply housing, freeing updesk space reducing tampering.
DisplayLink
Featuring the latest DisplayLink DL-6950 chipset, it is capable of supporting dual 4K displays via dual Display ports or HDMI ports.
Specifications
Technical Specifications
| MPN | THD-100 |
|---|---|
| DC Power IN | Power Jack x1 |
| Upstream | USB-C/F x 1 (USB 3.1 Gen 2) |
| Downstream | USB-A/F × 2 (USB 2.0)USB-A/F × 1 (USB 3.1 Gen 2)USB-A/F × 1 (USB 3.1 Gen 2) support BC 5V/2.4A fast chargeUSB-C/F x 1 (USB 3.1 Gen 2 ) Data only 5V/1.5AHDMI × 2DisplayPort × 2Gigabit Ethernet × 1Combo Audio Jack x 1 |
| Interface Transfer Rates | USB 3.1 Gen 2: 10 Gbps* |
| Max Resolutions | 4096 x 2160 / 60Hz(when supported by host and display) x2, 5K x 1 monitor |
| Power - ( PD 3.0 ) | 100W |
| USB-C Support | Upstream:Data transferPower Delivery |
| OS Support | Windows 10 and later, Mac OS X 10.10.2 and later, Andriod, Ubuntu |
| Power Supply | 150w power adaptor |
| Dimensions (W x L x H) | 230 x 70 x 17 mm |
| Brand | CMS |
|---|---|
| Weight | 1.08 kg |
| Warranty |
|---|
