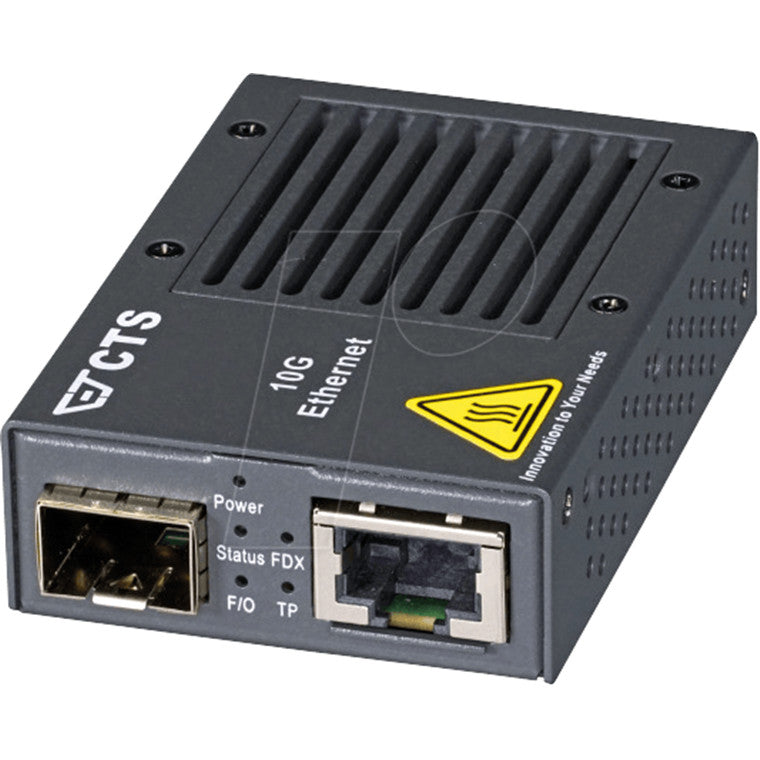

CTS MCT-5002SFPPLUS Compact 10G Ethernet Compact Media Converter

SKU: MCT-5002SFPPLUS ● In Stock
$655.65
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

CTS MCT-5002SFPPLUS Compact 10G Ethernet Compact Media Converter

Specifications

Technical Specifications

Manufacturer part number MCT-5002SFPPLUS
Interface F/O Port (Type): 1x 10Gbps (SFP+) TP Port (Type): 1x 100M/1G/2.5G/5G/10Gbps (RJ45)
Standards IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3ae 10GBase-R IEEE 802.3an 10GBase-T
H/W Specification Jumbo frame: 9K Bytes
Auto Auto-Cross Over for MDI/MDIX in TP Ports Auto-Negotiation in TP Ports
Operation Full/Half Duplex Mode Operation
LED Power, TP Speed Link/Act, F/O Link/Act, Status, Duplex
Forward/Filter Rate 100M: 148,800/148,800pps 1G: 1,488,000/1,488,000pps 2.5G: 3,720,000/3,720,000pps 5G: 7,440,000/7,440,000pps 10G: 14,880,000/14,880,000pps
Ethernet Feature DIP Switch
Power Requirement AC to DC Power Adaptor Input: 100V~240V AC, 50/60Hz Input: 12V DC Power Consumption: 8W
Environmental Condition Operating Temperature: 0?~50?
Storage Temperature 20?~60?
Humidity 5%~90%, non-condensing
Dimension 51x74x20mm (WxDxH)
Weight 0.13kg
EMC/Safety FCC Class A, CE
Product type Network Accessories
Weight 0.5 kg
Warranty 12 months
