Datalogic TD1120-BK-65K1
Datalogic TD1120-BK-65K1
Datalogic

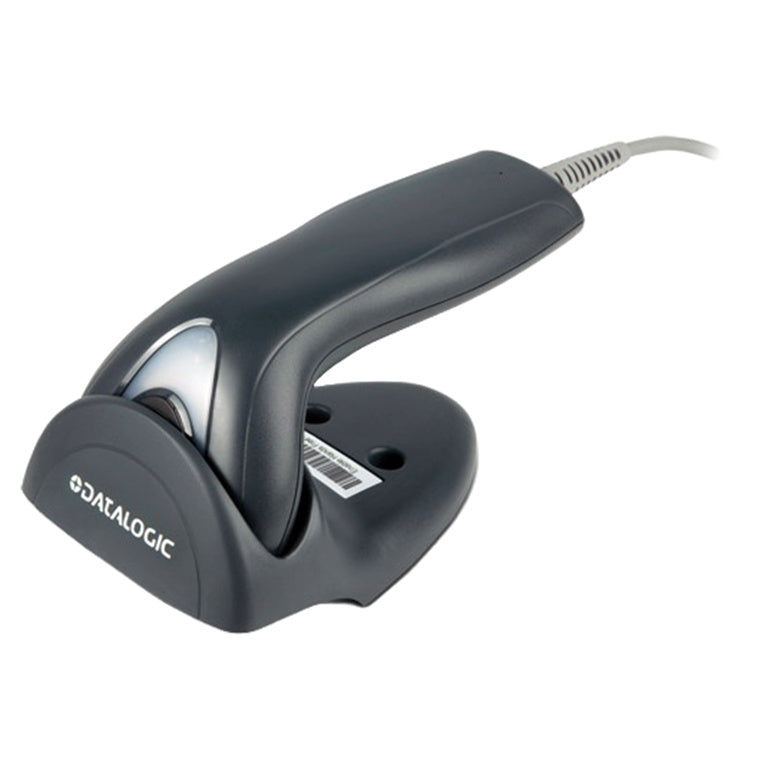

Datalogic TD1120-BK-65K1 Touch TD1100 65 Lite - Barcode Scanner - Handheld - decoded - USB General Purpose, Handheld, Black. Incl. Scanner, Holder, and 90A052065 Cable

SKU: TD1120-BK-65K1 ● In Stock
$153.04
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Datalogic TD1120-BK-65K1 Touch TD1100 65 Lite - Barcode Scanner - Handheld - decoded - USB General Purpose, Handheld, Black. Scanner, Holder, and 90A052065 Cable

Specifications

Technical Specifications

1D / Linear Codes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
Stacked Codes GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
Current Operating (Typical): < 100 mA @ 5 VDC Standby/Idle (Typical): 20 mA @ 5 VDC
Input Voltage 5 VDC +/- 0.5 V
Ambient Light 0 - 20,000 lux
Drop Resistance Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
ESD Protection (Air Discharge) 16 kV
Humidity (Non-Condensing) 5 - 95%
Particulate and Water Sealing IP30
Temperature Operating: 0 to 50 °C / 32 to 122 °F Storage/Transport: -20 to 70 °C / -4 to 158 °F
Interfaces RS-232 / Keyboard Wedge: Touch 65/90 Lite RS-232 / USB / Keyboard Wedge / Wand Emulation MultiInterface: Touch 65/90 Pro USB: Touch 65/90 Lite
Colour Black
Dimensions 65 Pro & Lite: 16.0 x 8.4 x 5.8 cm / 6.3 x 3.3 x 2.3 in
Weight 65 Pro & Lite: 130.0 g / 4.6 oz
Light Source Illumination: 640 nm LED
Print Contrast Ratio (Minimum) 25%
Read Angle Pitch: +/- 65º; Roll (Tilt): +/- 45º; Skew (Yaw): +/- 70º
Reading Indicators Beeper (Adjustable Tone); Good Read LED
Resolution (Maximum) 0.102 mm / 4 mil
Typical Depth of Field Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. Code 39: 7.5 mils: 0 to 8.1 cm / 0 to 3.2 in Code 39: 10 mi
Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certification
Environmental Compliance Complies to China RoHS; Complies to EU RoHS
Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge.
OPOS / JavaPOS JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge.
Remote Host Download Lowers service costs and improves operations.
Warranty 12 months
