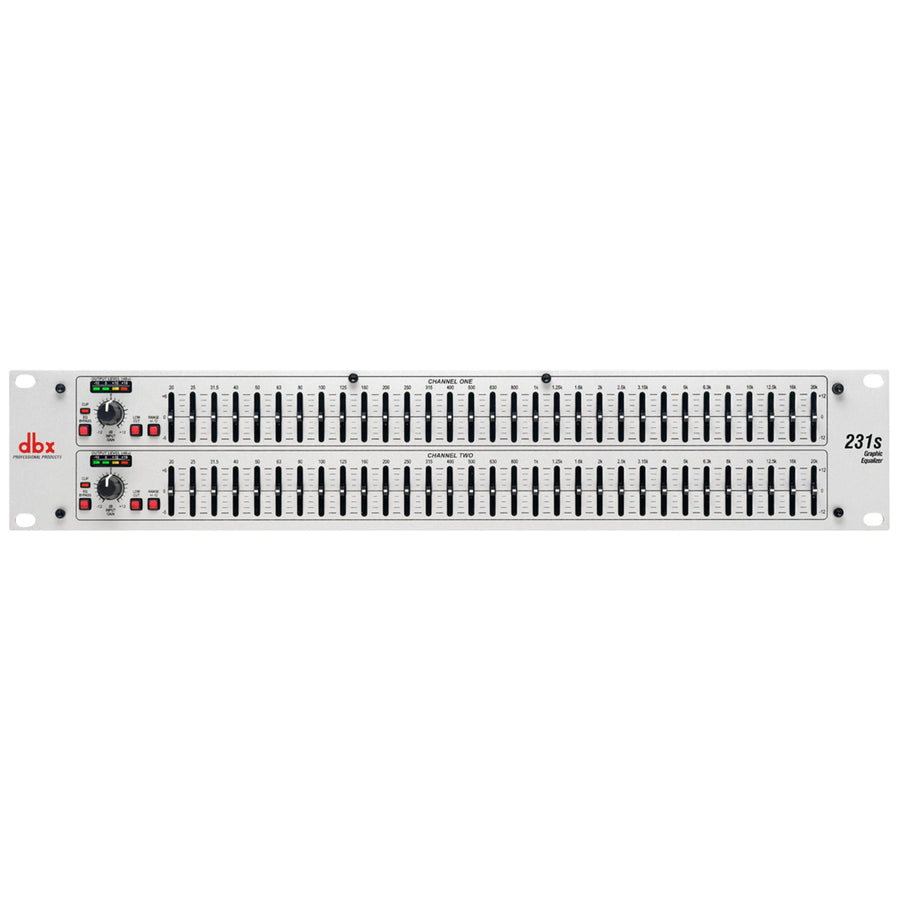

DBX 231S DUAL 31 BAND GRAPHIC EQ

SKU: 231S ● In Stock
$635.48
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

DBX 231S DUAL 31 BAND GRAPHIC EQ

Specifications

Technical Specifications

Input Connectors 1/4" TRS, female XLR (pin 2 hot)
Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance Balanced 40k ohm, unbalanced 20k ohm
Max Input >+21dBu balanced or unbalanced
CMRR >40dB, typically >55dB at 1kHz
Output Connectors 1/4" TRS, male XLR (pin 2 hot)
Output Type Impedance-balanced/unbalanced, RF filtered
Output Impedance Balanced 100 ohm, unbalanced 50 ohm
Max Output >+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
Bandwidth 20Hz to 20kHz, +0.5/-1dB
Frequency Response <10Hz to >50kHz, +0.5/-3dB
Dynamic Range Typically >112dB
Signal to Noise Ratio Typically >95dB
THD+Noise <0.003%
Interchannel Crosstalk <-90dB, 20Hz to 20kHz
Bypass Switch Bypasses the graphic equalizer section in the signal path
Low cut Switch Activates the 50Hz 12dB/octave high-pass filter
Range Switch Selects either +/- 6dB or +/-12dB slider boost/cut range
Operating Voltage 100-240VAC 50/60Hz
Power Consumption 15W
Power Connector IEC receptacle
Weight 6.2 lbs.(2.81 kg)
Dimensions (H x D x W) 3.5" x 6" x 19" (8.9cm x 15.24cm x 48.26cm)
Warranty 12 months
