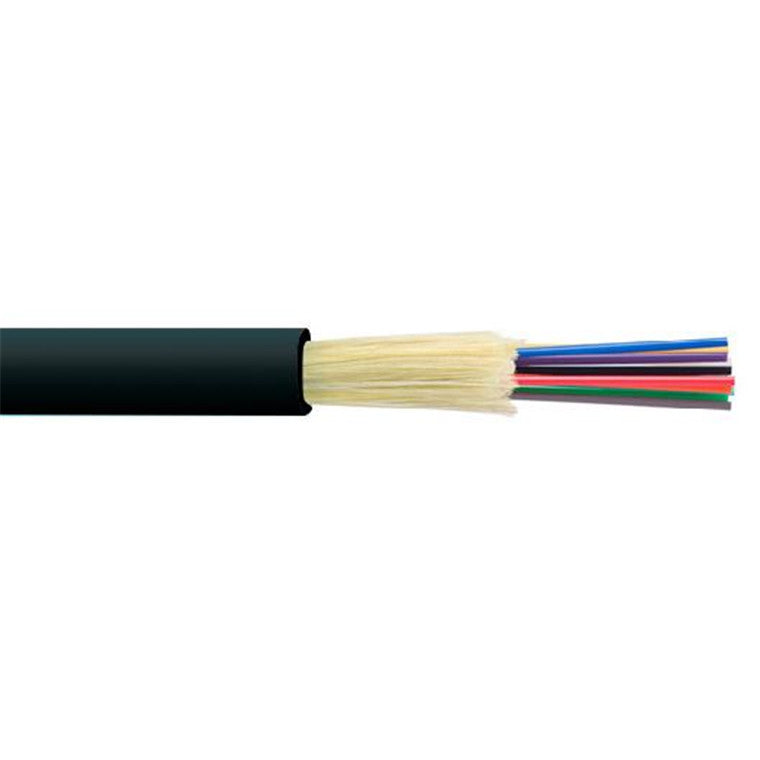

Dynamix F-TBOM406-300M 300m OM4 6Core Fibre Tight Buffered indoor/outdoor. ONFR.

SKU: F-TBOM406-300M ● In Stock
$1,026.08
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Dynamix

Dynamix RSR22-8X10 22RU Server Cabinet 1000mm Deep (800x1000x1166mm). Includes 1xFixed Shefl, 4x Fans, 25x Cage Nuts, 4x Castors & 4x Level Feet. Black

$1,859.99
inc GST ▲ +GST
Dynamix

Dynamix RST45-9X10 45RU Server Cabinet 1000mm deep 900 WIde.Includes Dual 150mm Vertical Cable Management 3x fixed shelves, 4x fans,Tray bifold front & rear mesh doors 6-Way PDU installed. Black

$4,619.12
inc GST ▲ +GST
Dynamix

Dynamix RDME12-700 DYNAMIX 12RU 700mm Deep Universal Swing Mount Wall Cabinet - 200mm Removable Backmount - Supplied with Rear Vertical Cable Tray, 6 Way PDU and 10 Cage Nuts - Mesh Front Door - B

$959.12
inc GST ▲ +GST
Dynamix

Dynamix RST42-6X8 DYNAMIX 42RU Server Cabinet 800mm Deep (600x 800x2081mm) Includes 3x FixedShelves, 4x Fans, 25x Cage Nuts, 4x Castors, 4x Levelling Feet Front & Rear Bifold Mesh Doors.

$2,724.35
inc GST ▲ +GST
Dynamix

Dynamix RODWSS9-600FK 9RU Stainless Vented Outdoor Wall Mount Cabinet(611x475x560). SUS316 Stainless Steel Construction. IP45 rated. Lockable front door. Supplied with dual extractor fans & i

$2,730.43
inc GST ▲ +GST

Features

Dynamix F-TBOM406-300M 300m OM4 6Core Fibre Tight Buffered indoor/outdoor.

Specifications

Technical Specifications

Manufacturer part number F-TBOM406-300M
Core Diameter 50±2.5µm
Core Non-Circularity =5.0%
Cladding Diameter 125.0 ±1.0µm
Cladding Non-Circularity =1.0%
Coating Diameter 245 ±7µm
Attenuation 850nm, =2.4dB/km 1300nm, =0.6dB/km
Overfilled Modal Bandwidth 850nm, =3500MHz/km 1300nm, =500MHz/km
Effective Modal Bandwidth 850nm, =4700MHz/km
40 & 100 Gigabit Ethernet 850nm, 150m
10GBASE-SR 850nm, 550m
1000BASE-SX 850nm, 1100m
Numerical Aperture 0.200±0.015
Group Refractive Index 850nm, 1.485 1300nm, 1.477
Zero Dispersion Wavelength, ?? 1259-1340nm
Zero Dispersion Slope, S0 1295nm=??=1310nm, =0.105ps/(nm2/km) 1310nm=??=1340nm, =0.000375 (1590-??) ps/(nm²/km)
Macro-bending Loss 100 Turns @37.5mm Rad 850nm, =0.50dB 1300nm, =0.50dB
Macro-bending Loss 2 Turns @15mm Radius 850nm, =0.50dB 1300nm, =0.50dB
Step (Mean of Bidirectional Measurement) =0.10dB
Irregularities Over Fibre Length & Point =0.10dB
Attenuation Uniformity =0.08dB/km
Temperature Cycling 60°C~85°C, =0.10dB/km
Temperature Humidity Cycling 60°C~85°C, 4%~98% RH, =0.10dB/km
Product type Racks and Cabinets
Weight 1.01 kg
Warranty 24 months
