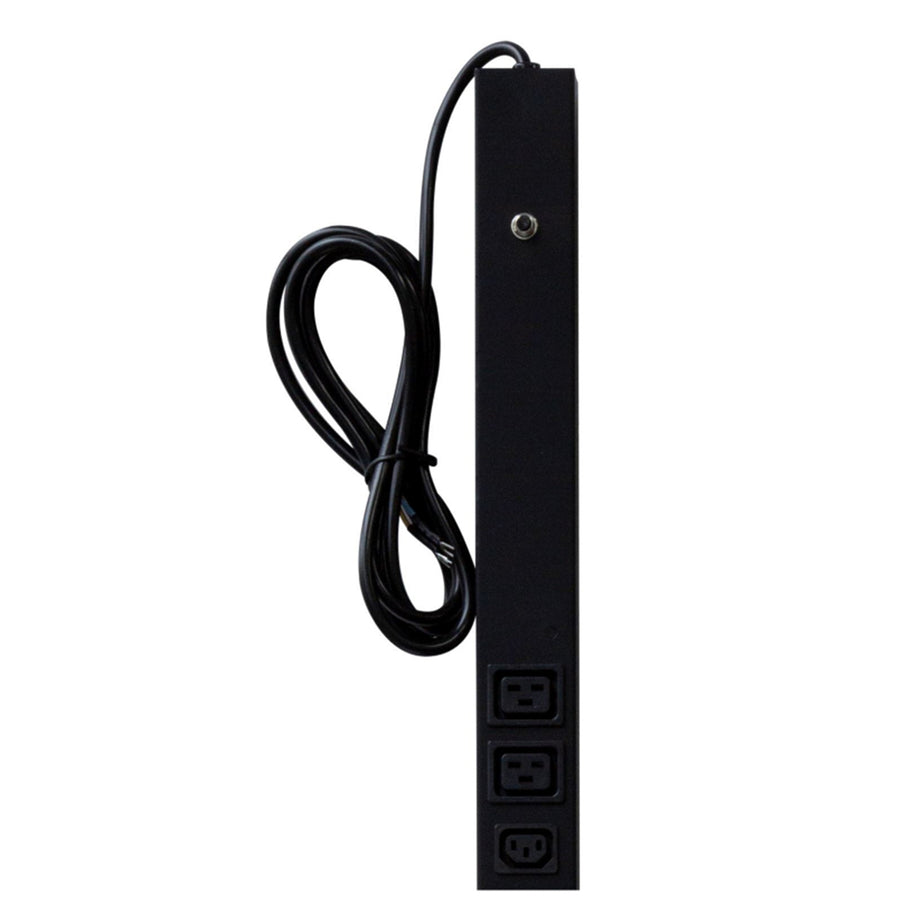

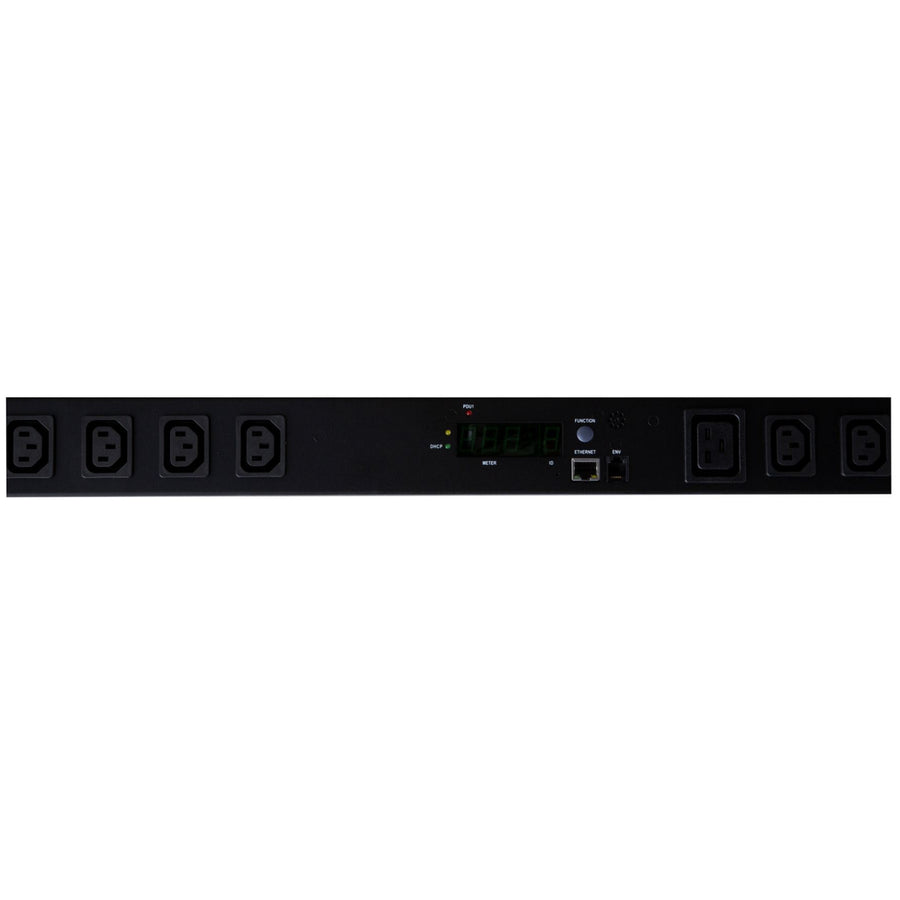

Dynamix WMV-1623W-24N1 24 Outlet Power Rail. Includes Remote Monitoring, Current Measurement, Mail Notification, Overload Protection. No Plug. 0U 16A 230V, (20)C13 & (4) C19 Outlets, (1)RJ45 (1)RJ11.

SKU: WMV-1623W-24N1 ● In Stock
$1,185.22
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Dynamix WMV-1623W-24N1 24 Outlet Power Rail. Includes Remote Monitoring, Current Measurement, Mail Notification, Overload Protection. 0U 16A 230V, (20)C13 & (4) C19 Outlets, (1)RJ45 (1)RJ11.

Specifications

Technical Specifications

Manufacturer part number WMV-1623W-24N1
Output Voltage 200V-240V AC Max. Current 16A Outlet (20) IEC320 C13 (4) IEC320 C19
Voltage 200V-240V AC
Frequency 50/60Hz, Full Range
Max. Capacity 2680VA
Connection No Plug, Power Cord 3.0m
Overload Protection Circuit breaker (UL1077)
Current +/-2%+/-0.1A @0.2A~20A
Voltage +/- 1% +/- 1V @80V~260V
Active Power +/- 1% +/- 5W @50W~8000W
Apparent Power +/- 1% @50VA~8000VA
Frequency +/- 1% @50~65Hz
Power Factor +/- 1% @0.1~1.0
kWh .001kWh~99999.999kWh, (+/-1% @50W~8000W) kh=1.0
ENV Connection RJ11
Net Size 1645 x 56 x 44mm
Net Weight 3.5kg
Operation Temp. 0°C~45°C
Operation Humid. 0%~90% RH
Storage Temp. 20°C~65°C
Storage Humid. 0%~90% RH
Product type UPS
Weight 1.01 kg
Warranty 12 months
