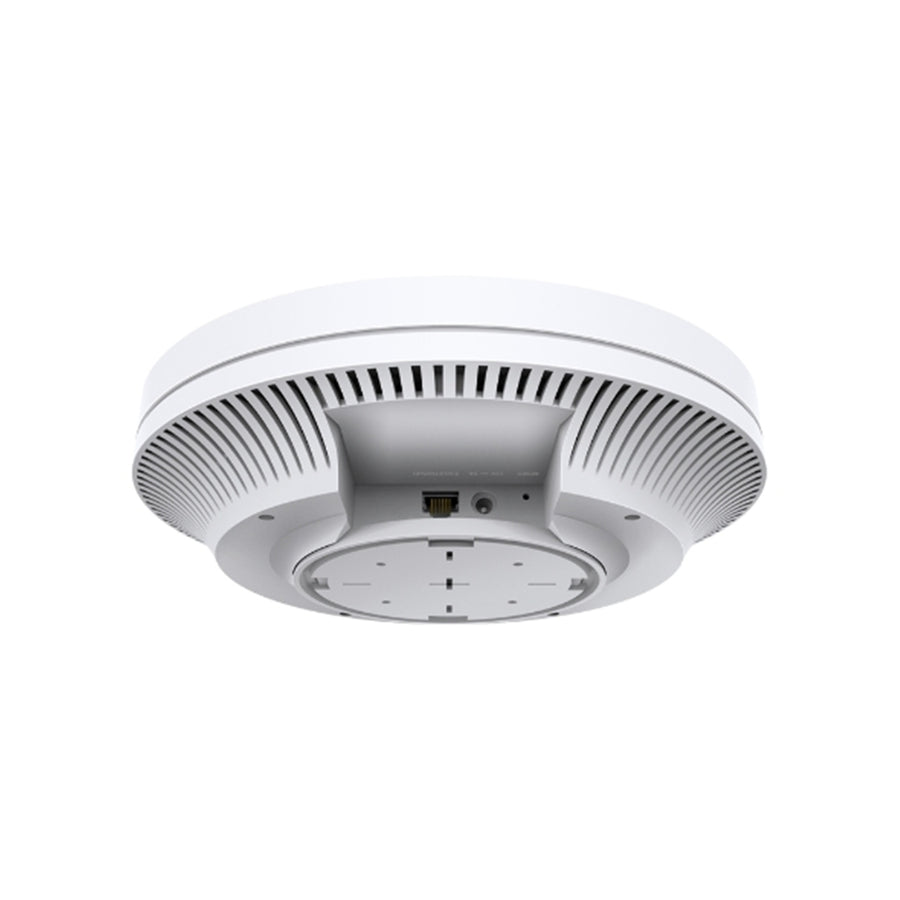

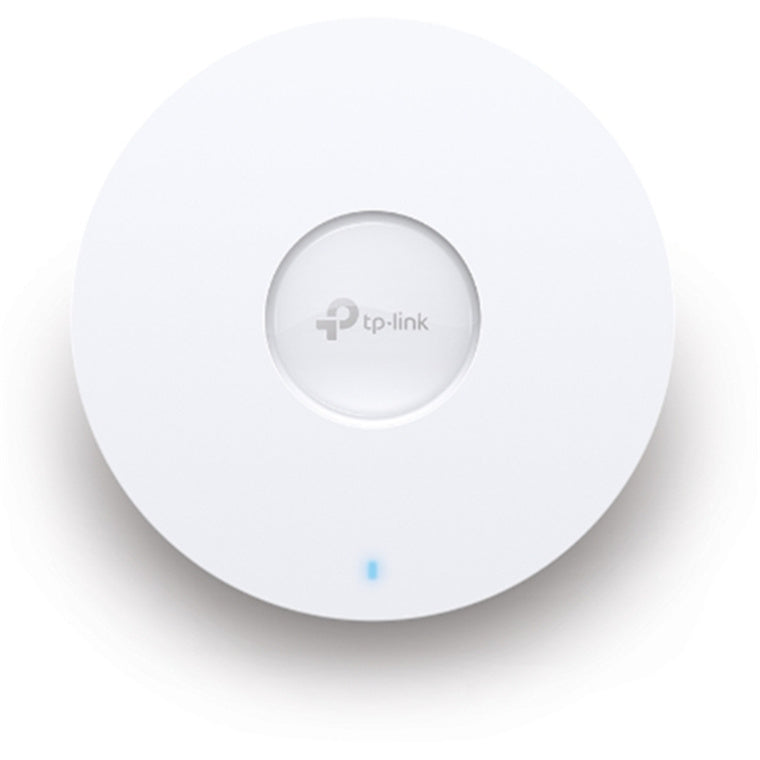

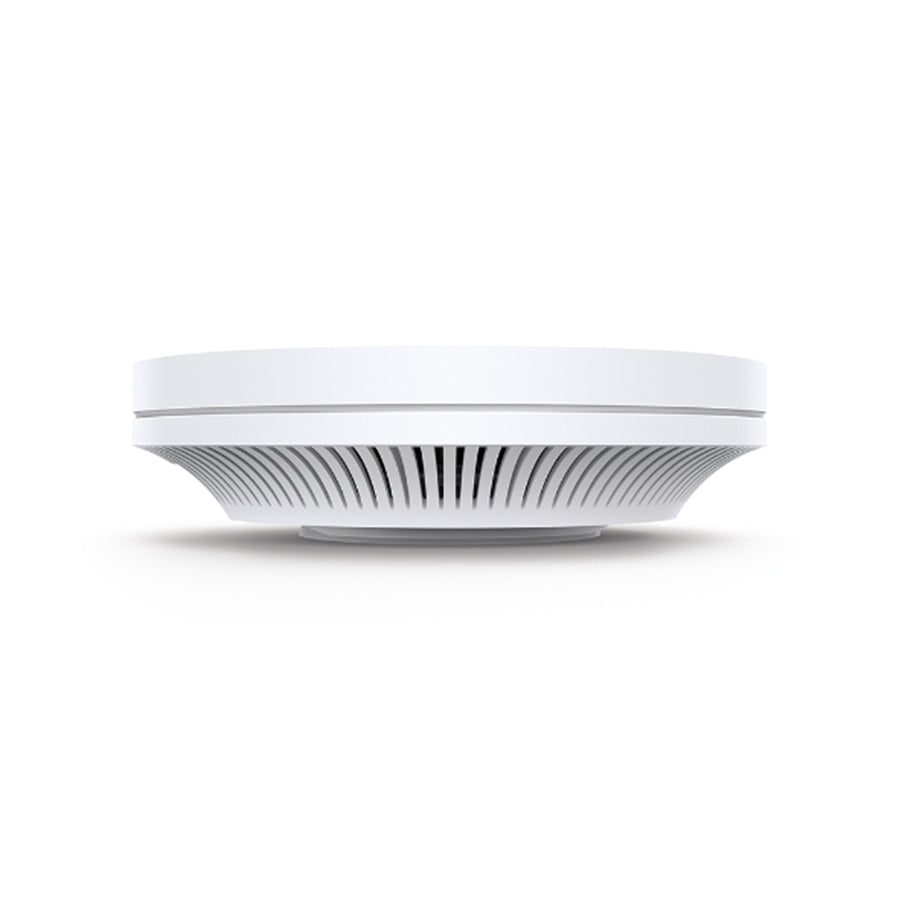

TP-Link Omada EAP610 (AX1800) Dual-Band 4-Stream Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 11W)
Features
AX1800 Wireless Dual Band Ceiling Mount Access Point
-Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
-High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
-Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
-Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
-Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
-PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations.
-Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Specifications
Technical Specifications
| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
|---|---|
| Button | Reset |
| Power Supply | 802.3at PoE 12 V / 1 A DC |
| Power Consumption | EU: 12.8 W (For PoE); 10.8 W (for DC) US: 13.9W (For PoE); 11.8 W (for DC) |
| Dimensions ( W x D x H ) | 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) |
| Antenna Type | Internal Omni 2.4 GHz: 2× 4 dBi 5 GHz: 2× 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Certification | CE, FCC, RoHS |
| Package Contents | - EAP610- Power Adapter- Ceiling/Wall Mounting Kits- Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Operating Temperature | 0-40 (32-104 ) |
| Storage Temperature | -40-70 (-40-158 ) |
| Operating Humidity | 10-90% RH non-condensing |
| Storage Humidity | 5-90% RH non-condensing |
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Wireless Access Points > Indoor Access Points |
| Weight | 0.8 kg |
| Warranty |
|---|
