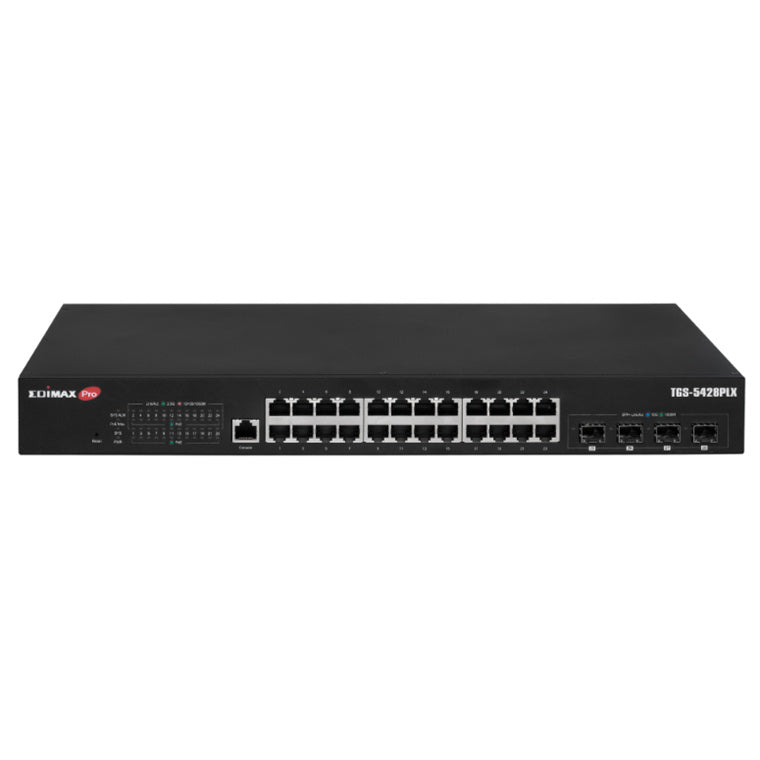

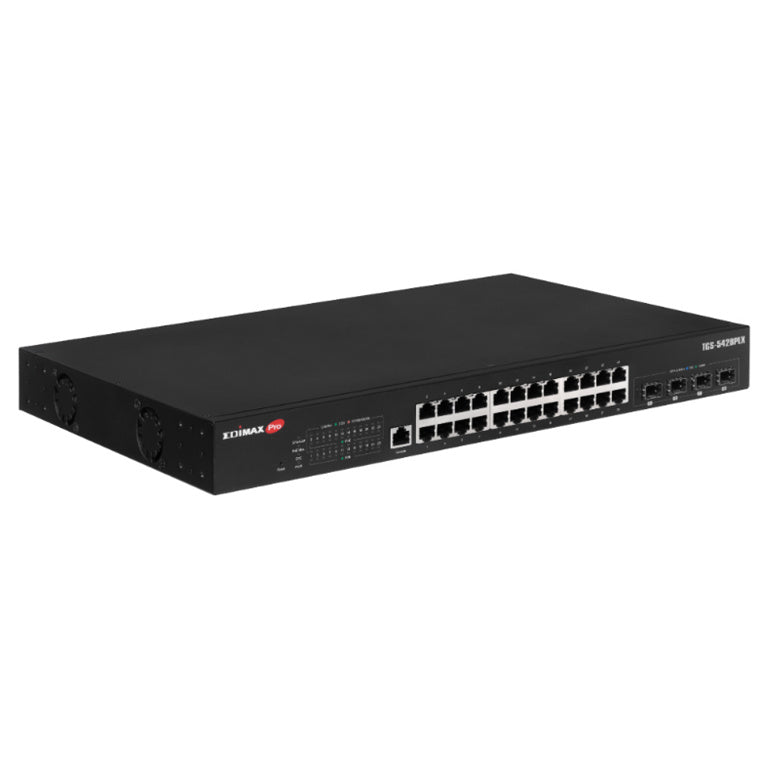

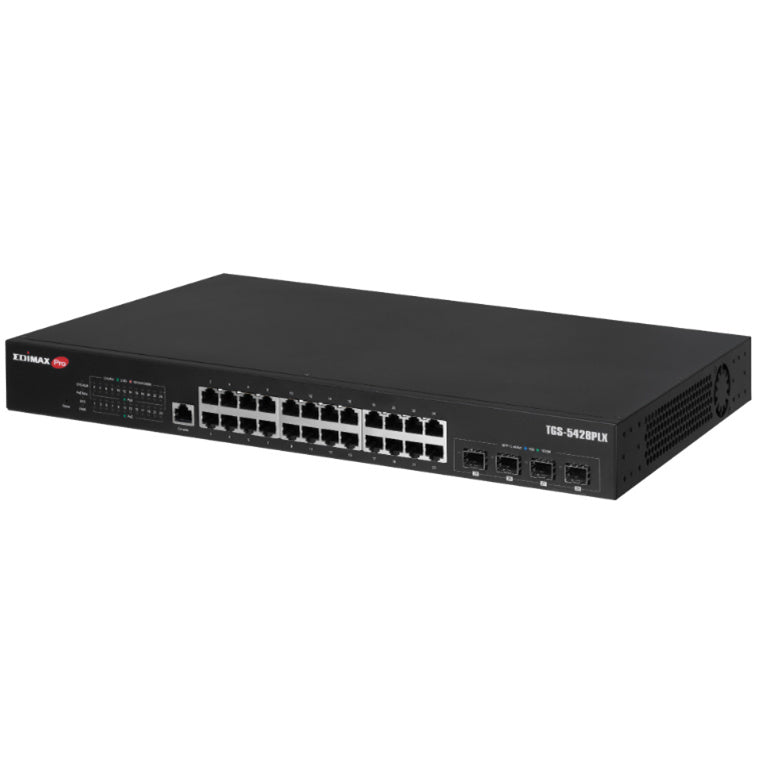

Edimax TGS-5428PLX 24-Port 2.5GbE PoE++ L2 with 4x 10GbE SFP+ Ports Surveillance VLAN Switch

SKU: TGS-5428PLX ● In Stock
$969.57
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Edimax TGS-5428PLX 24-Port 2.5GbE PoE++ L2 with 4x 10GbE SFP+ Ports Surveillance VLAN Switch

Specifications

Technical Specifications

Manufacturer part number TGS-5428PLX
Ports 24 x RJ45 2.5Base-T 2.5 Gigabit PoE++ Ports 4 x SFP+ 10GBase-X 10 Gigabit Uplink Ports 1 x RJ45 Console Port (Console Cable Included)
Buttons Reset button
LED Indicators SYS ALM: System Alert PoE Max.: PoE Power Budget Alert SYS: System Booting Status PWR: System Power Status Link/Act: Connection and Transmission Status (Port 1-24 RJ45, Port 25-28
Power Input 100-240V AC, 50-60 Hz, Internal Power Supply
Total Power Budget 400W
Mounting Desktop / Rack-mount (Rack-mount Kit Included)
Housing Metal
Fan 3 x Fans with Intelligent Thermal Controller
Dimensions 441 (W) x 270 (D) x 44 (H) mm (17.36 (W) x 10.63 (D) x 1.73 (H) inches)
Weight 4.45kg (9.81lb)
Switching Capacity / Backplane 200Gbps
Forwarding Rates Max. 169.28Mpps (64-byte Package Size)
MAC Address Table 32K
Jumbo Frames 12KB
Packet Buffer 16Mb
Standard IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+), IEEE 802.3af(PoE)
Power Output Up to 90W per Port
Pin Assignment IEEE 802.3at/af: Alternative A (Pin 1,2/3,6) IEEE 802.3bt: Alternative A & B (Pin 1,2/3,6 & Pin 4,5/7,8)
Management PoE Status, PoE Scheduling, PoE Priority, PoE On/Off, PoE PD Alive Check
Long Range Guaranteed PoE long distance to 200 meters at 10Mbps
Backfeed Protection Built-in
Quality of Service (QoS) Rate limiting on packets sent and received by an interface 8 queues on each port WRR, SP, WRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Rat
Class of Service (CoS) IEEE 802.1p class of service (SPQ, WRR) Port-based CoS IP TOS precedence 802.1p VLAN Information based CoS DSCP based CoS TCP/UDP Based CoS
Spanning Tree IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
VLAN Up to 256 VLANs and 4096 VLAN IDs 802.1Q tag-based VLAN Port-based VLAN Surveillance VLAN Voice VLAN MAC VLAN GVRP
IPV6 IPv6 over Ethernet (RFC 2464) Dual-stack (RFC 4213) ICMPv6 (RFC 4884) Neighbor discovery (RFC 4861) Auto configuration Static IPv6 address and prefix length Static IPv6 default gat
Port Trunking IEEE 802.3ad LACP Trunk-Static Trunk Up to 8 trunk groups
IGMP Snooping IGMP v1/v2/v3 snooping Block unknown multicast traffic
Port Mirroring Port Mirroring Traffic Direction: Both (Ingress and Egress) Ingress Egress
Security RADIUS TACACS+ AAA Management Access Authentication Manager Port Security Protected Port Broadcast Storm Control DoS Dynamic ARP Inspection DHCP Snooping IP Source Guard BPDU Guard
Management User Interface: Web-based management User Account: Login account configuration Firmware Upgrade: Firmware upgrade by WEB Syslog: Support event log, alarm log and security log Dual
Standard IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3bz 2.5GBase-T 2.5G Ethernet IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet over Fiber IEEE 802.
Environmental Condition Tempertatue: Operating: 0 ~ 50? (32~122°F) Storage: -40 ~ 70? (-40~158°F) Humidity: Operating: 10 ~ 90% (Non-condensing) Storage: 10 ~ 90% (Non-condensing)
Certifications FCC, CE
Product type Switches
Weight 3 kg
Warranty 12 months
