ELO

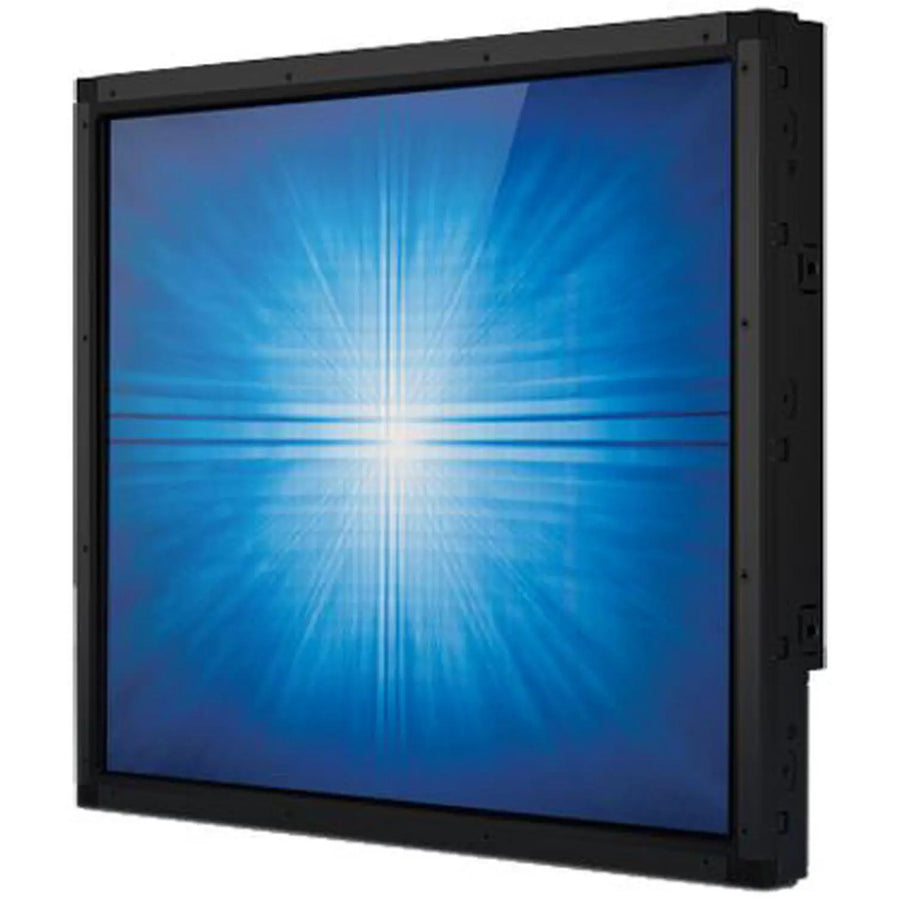

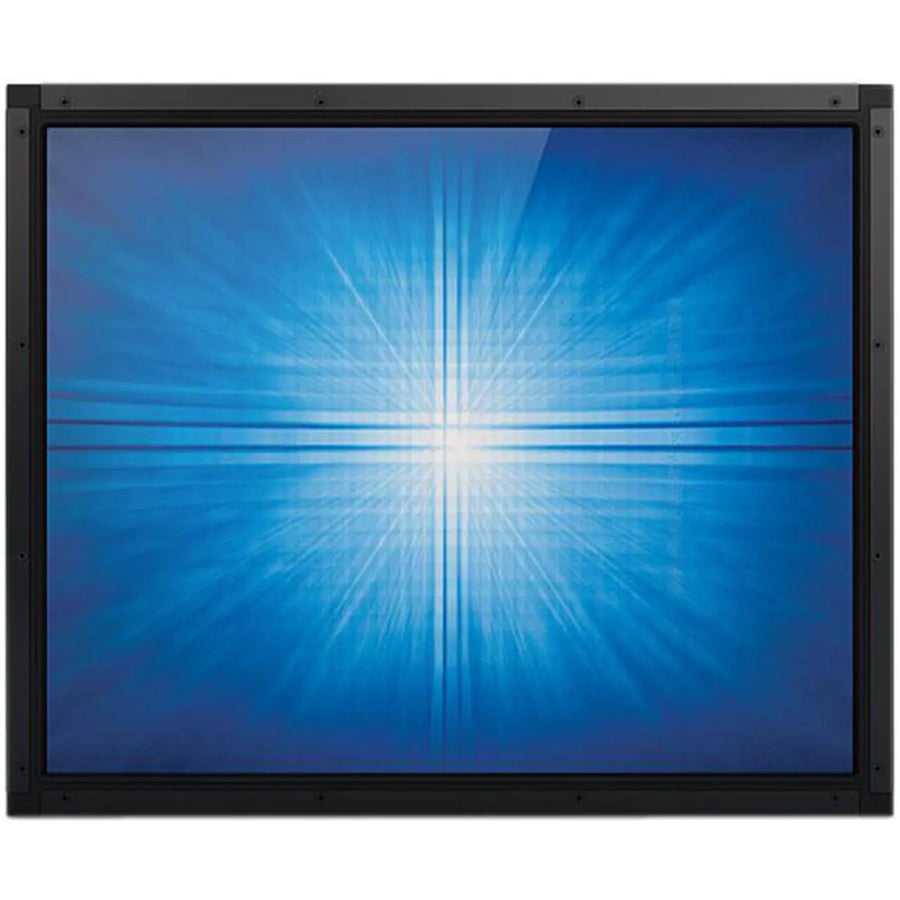

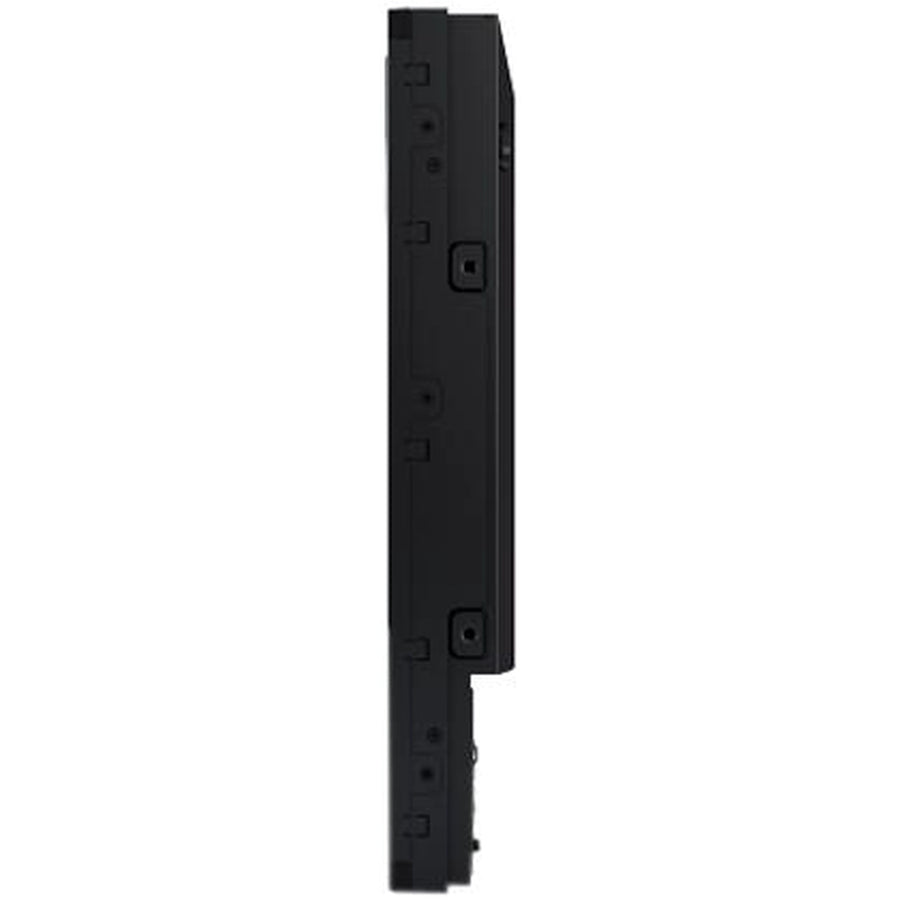

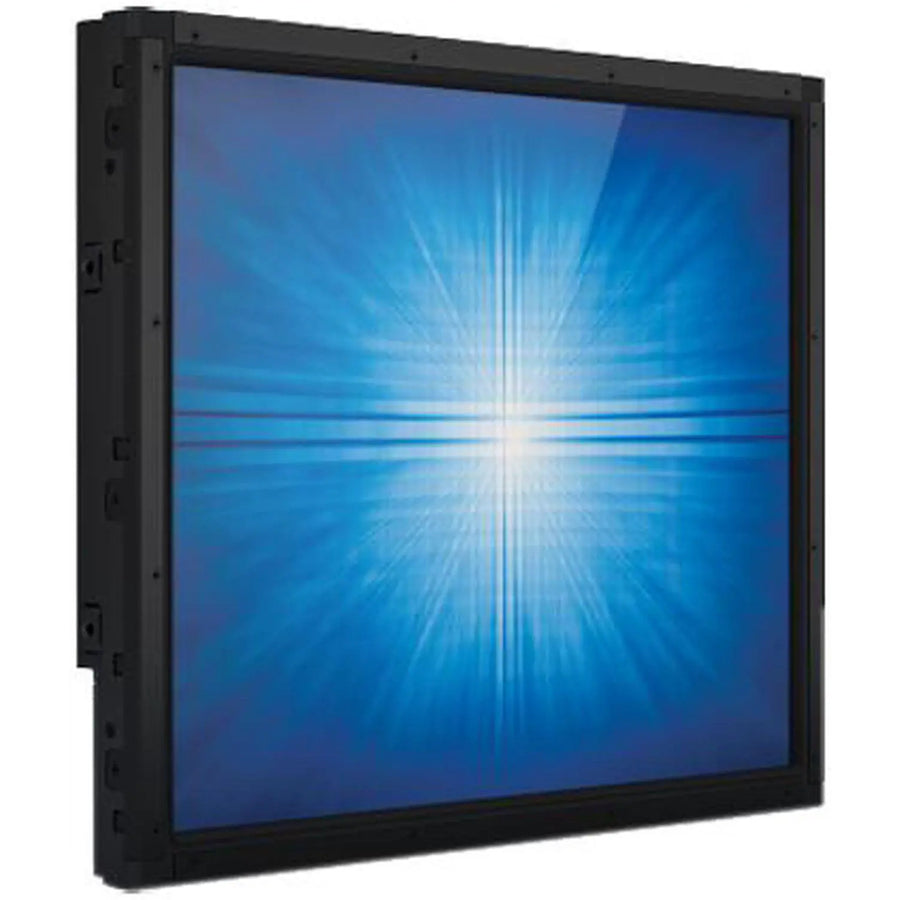

ELO E326541 TOUCH MONITORS ELO ELO KIOSK 1991L OPEN FRAME ACCUTOUCH VGA/DVI/HDMI
$1,765.22
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
ELO E326541 TOUCH MONITORS ELO ELO KIOSK 1991L OPEN FRAME ACCUTOUCH VGA/DVI/HDMI
Specifications
Technical Specifications
| Manufacturer part number | E326541 |
|---|---|
| MPN | AccuTouch (Worldwide) - E326541 |
| Enclosure Color | Black |
| Touch Technology & Capacity | 5-Wire Resistive (AccuTouch®) - Single-Touch |
| Touch Interface | TouchPro PCAP - USB 2.0 Dual serial/USB 2.0 |
| Diagonal Size | 19" diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 5:4 |
| Active Area | 14.76" x 11.80" / 374.78mm x 299.83mm |
| Resolution | 1280 x 1024 |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | AccuTouch: 200 nits |
| Response Time-total (typical) | 14 msec |
| Contrast Ratio | 1000:1 |
| Input Video Format | HDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DB-15 connector DisplayPort V1.1a - Supports later versions of Display Port video input |
| Input Video Frequency | Horizontal: 30 - 82 KHz Vertical: 50 - 75 Hz |
| Input power connector (Monitor) | Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) |
| Input Voltage | 12VDC +/- 5% |
| Adapter Output Power Connector | DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) |
| Power Consumption (Typical) | ON (Default - 75% Brightness): 10.82 W ON (Typical - 100% Brightness): 12.12 W SLEEP (monitor + adapter): 1.5 W OFF (monitor + adapter): 0.5 W |
| Dimensions | Bezel: 16.33" x 13.50" x 1.97" / 414.7mm x 342.7mm x 50mm Zero-Bezel: 16.54" x 13.70" x 1.60" / 420.1mm x 348.1mm x 40.7mm |
| Weight (Unpackaged) | 10.14 lbs / 4.6 Kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | 20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80% Storage: 10% to 95% |
| MTBF | 50,000 hours demonstrated |
| Product type | POS / Scanning |
| Weight | 1.01 kg |
| Warranty | 12 months |
| Brand | ELO |
|---|---|
| Product Type | POS / Scanning |
| Weight | 1.01 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
