Enlogic

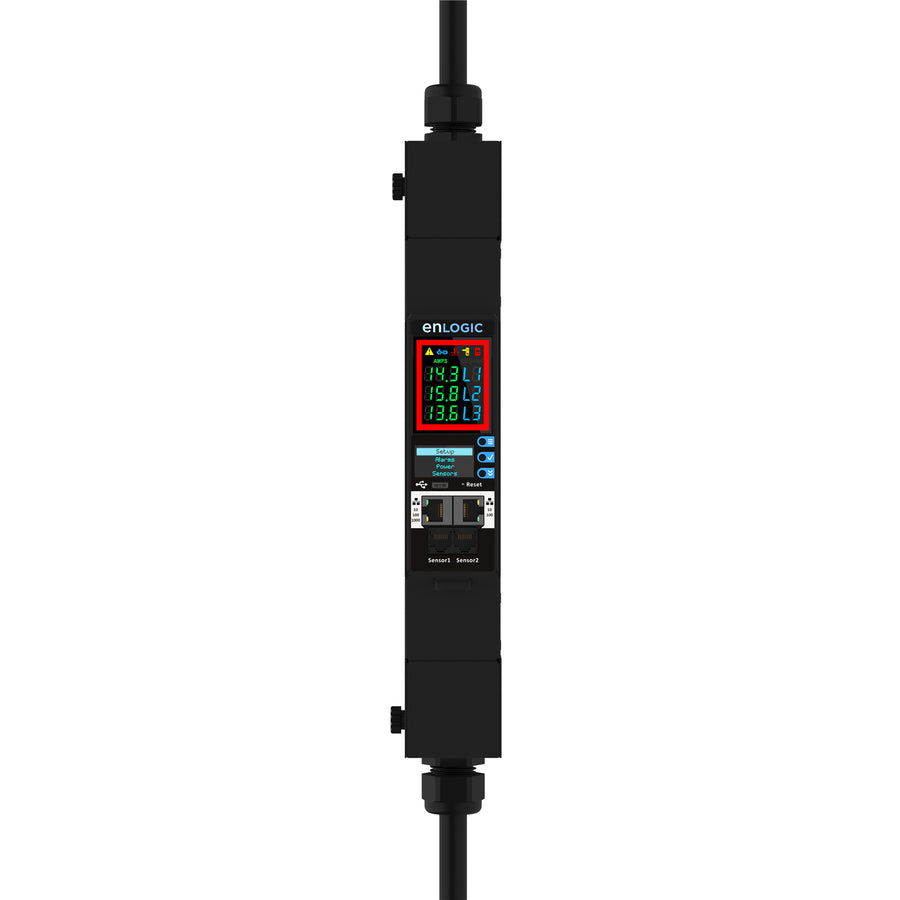

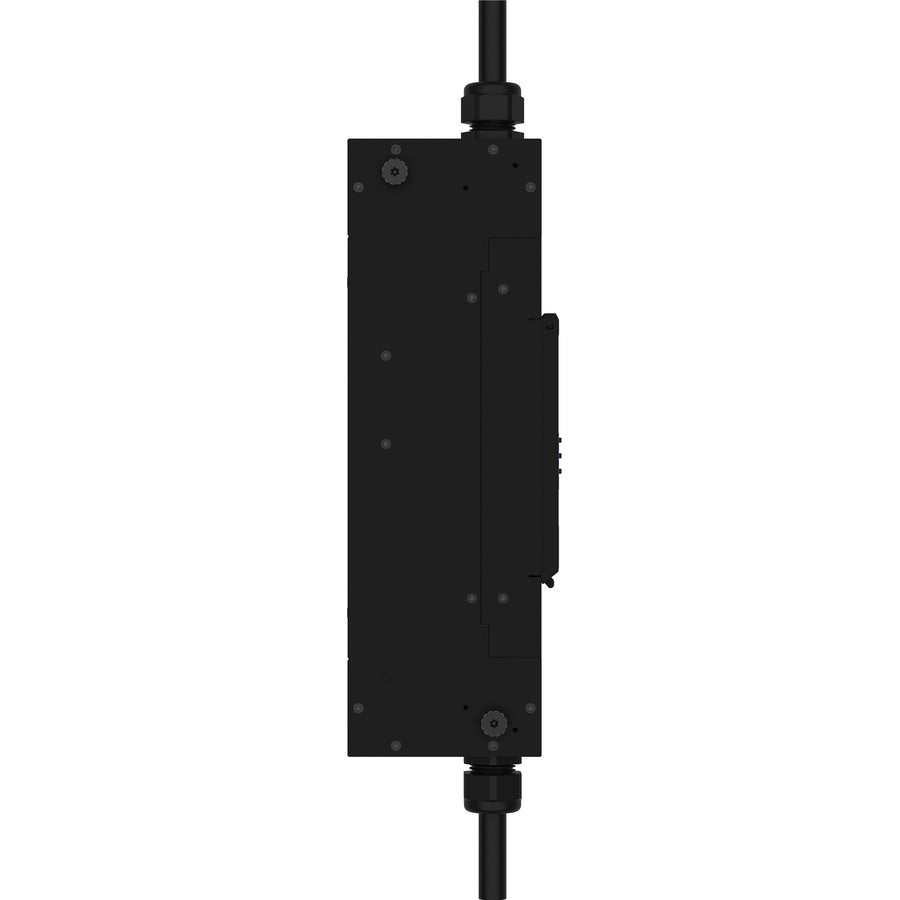

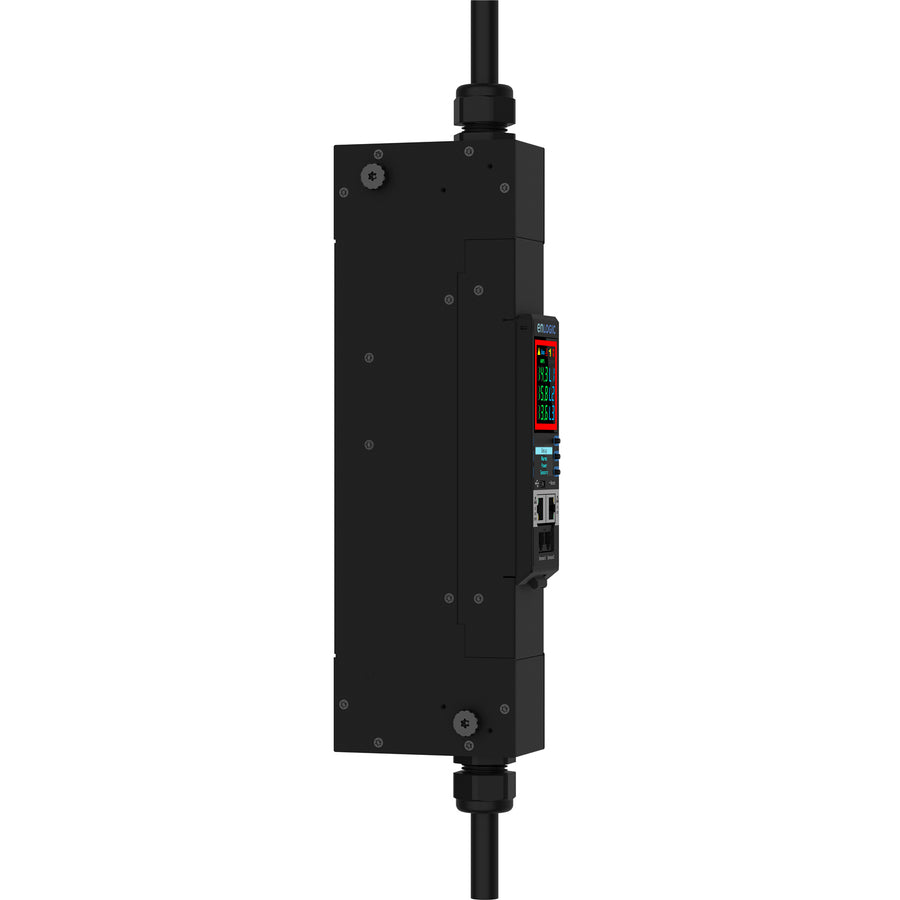

Enlogic ENL-EZ1732 Inline Energy Meter: 3 phase 32A IEC309 input plug/output connector
$1,928.70
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Enlogic ENL-EZ1732 Inline Energy Meter: 3 phase 32A IEC309 input plug/output connector
Specifications
Technical Specifications
| Manufacturer part number | ENL-EZ1732 |
|---|---|
| Product Type | Inline Energy Meter |
| Manufacturer | Enlogic |
| Manufacturer Part No. | EZ1732 |
| Metering Attributes | Voltage(V),Current(A),Apparent Power(kVA),Real Power(kW),Power Factor,Energy(kWH) |
| Metering Accuracy | ± 1% to ISO/IES 62052-21 |
| Metering Locations | Input Phase and circuit breaker measurements |
| Remote Outlet Switching | No |
| Acceptable input voltage | 380-415V 3ph Wye |
| Input current (phase) | 32A |
| Max Input power | 23.0 kVA @ 415 VAC |
| Input Plug | IEC 60309 532P6 |
| Output voltage | 220-240V 3ph Wye |
| Maximum output current (phase) | 32A |
| Overload protection (internal) | N/A |
| Outlet configuration | Output Connector: IEC 60309 532C6 |
| Chassis Dimensions (L x W x D) | 350.0mmx55.0mmx110.0mm |
| Input cord length | 1000mm |
| Operating Temperature | 5 to 60°C (23 to 140°F) |
| Storage Temperature | 20 to 60°C (-4 to 140°F) |
| Humidity (operating/storage) | 5-90% RH / 5-95% RH; non-condensing |
| Max operating elevation, above MSL | 3,000 m (9,840 ft) |
| Safety verification | CE, Demko Certified to IEC/EN60950-1, RoHS, REACH |
| Environmental | ROHS, REACH |
| Product type | Racks and Cabinets |
| Weight | 8 kg |
| Warranty | 12 months |
| Brand | Enlogic |
|---|---|
| Product Type | Racks and Cabinets |
| Weight | 8.0 kg |
| Warranty |
|---|
