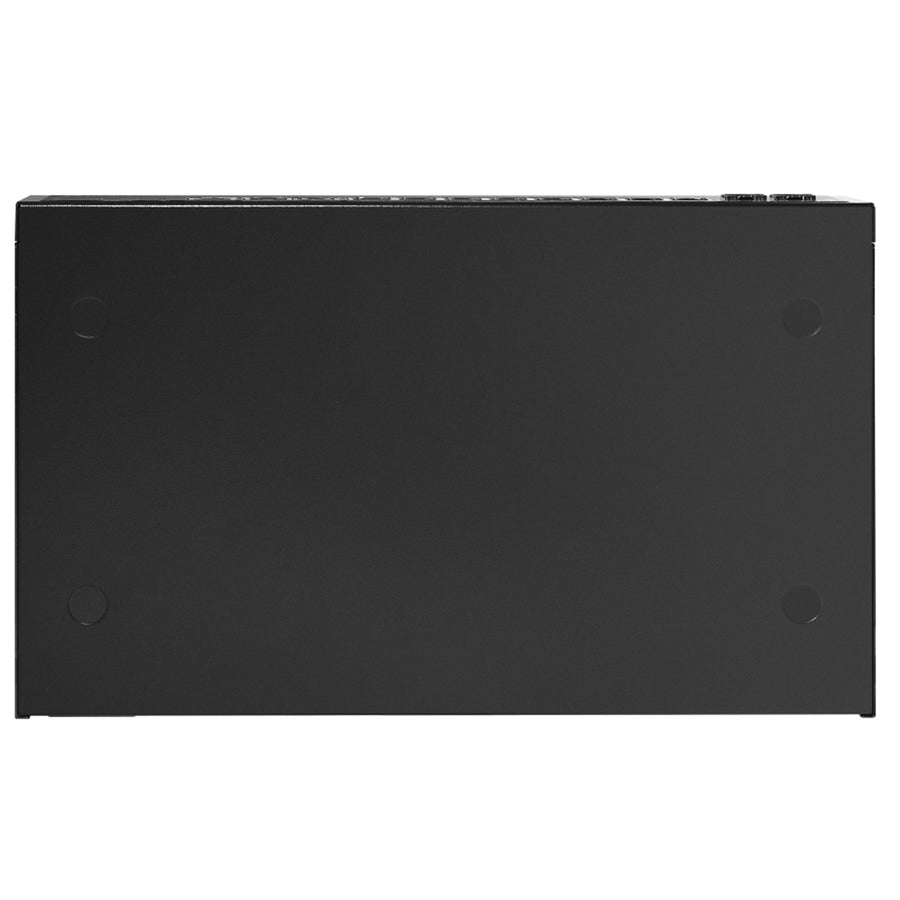

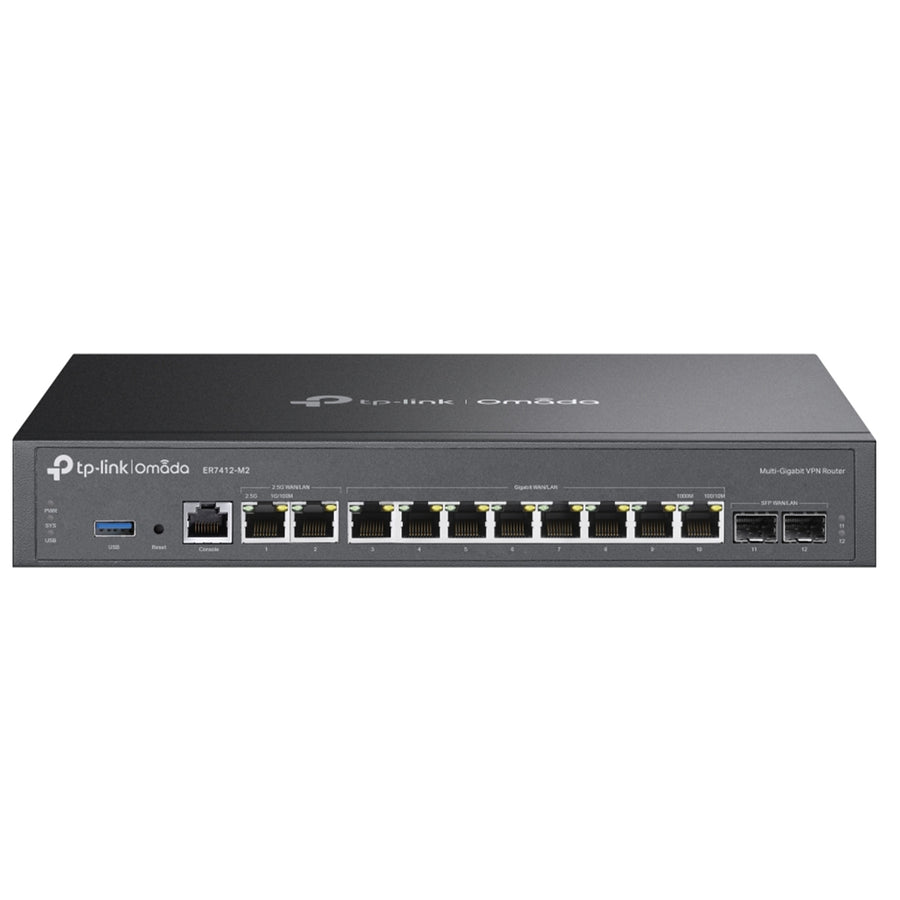

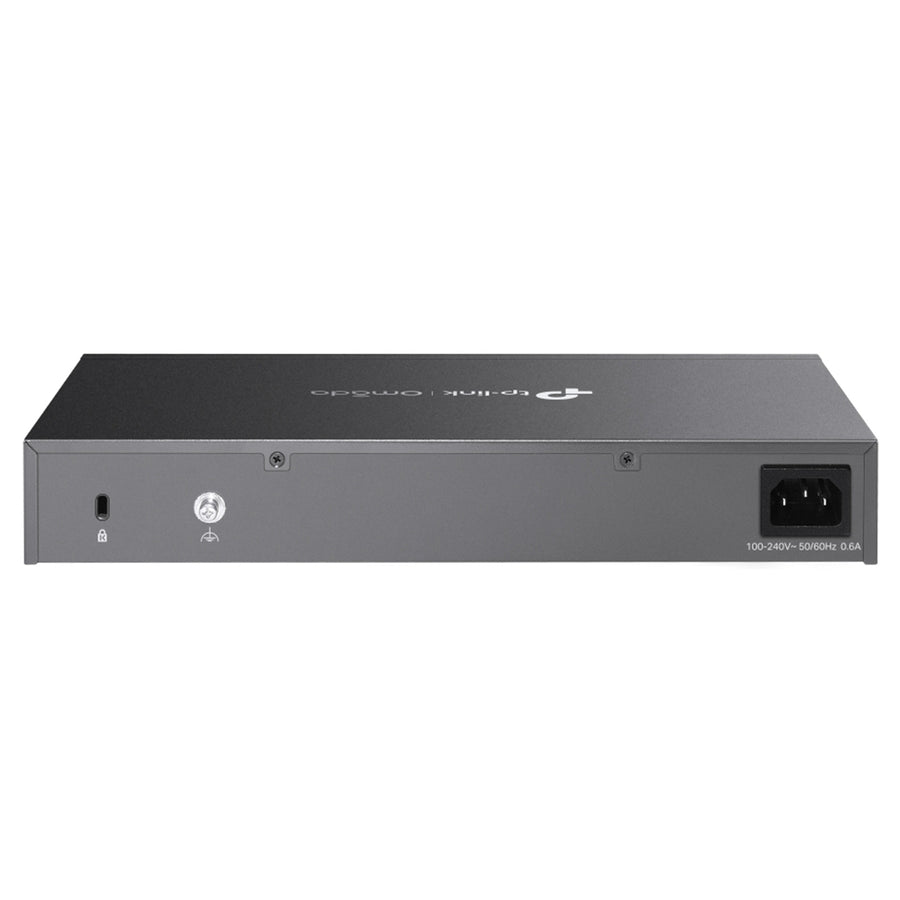

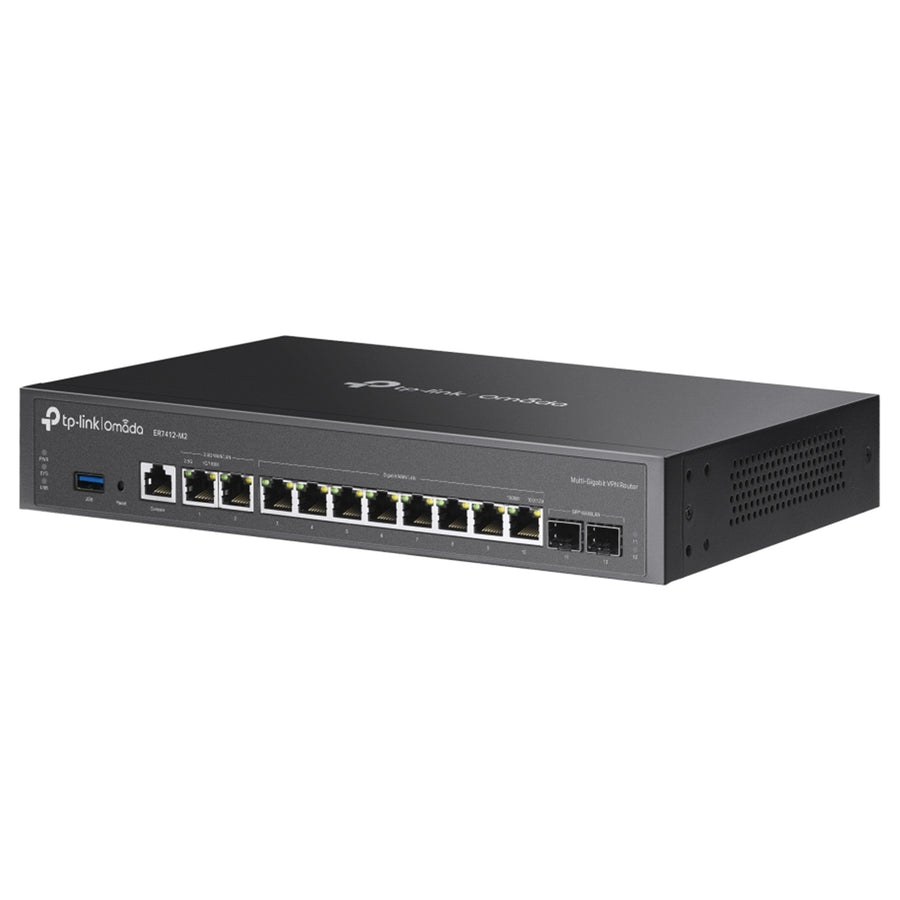

TP-Link Omada ER7412-M2 2.5G Multi-WAN VPN Gateway (Rackmountable)
TP-Link Omada ER7412-M2 2.5G Multi-WAN VPN Gateway (Rackmountable)
TP-Link Omada ER7412-M2 2.5G Multi-WAN VPN Gateway (Rackmountable)
TP-Link Omada ER7412-M2 2.5G Multi-WAN VPN Gateway (Rackmountable)
TP-Link

TP-Link Omada ER7412-M2 2.5G Multi-WAN VPN Gateway (Rackmountable)

SKU: ER7412-M2 ● In Stock
$390.43
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

TP-Link

TP-Link TP LINK Deco X50-POE AX3000 Whole Home Mesh WiFi 6 System with PoE - 2-Pack

RoutingWi-Fi 6PoE+
$434.77$451.30
inc GST ▲ +GST
TP-Link

TP-Link TP LINK Deco X50-POE AX3000 Whole Home Mesh WiFi 6 System with PoE - 2-Pack

RoutingWi-Fi 6PoE+
$434.77$451.30
inc GST ▲ +GST
TP-Link

TP-Link TP LINK Deco X50-POE AX3000 Whole Home Mesh WiFi 6 System with PoE - 2-Pack

RoutingWi-Fi 6PoE+
$434.77$451.30
inc GST ▲ +GST
Mercusys

H47BE-2 - Mercusys Halo H47BE (2-pack) BE9300 Whole Home Mesh Wi-Fi 7 System

Wireless
$637.38
inc GST ▲ +GST
TP-Link

ER706WP-4G - TP-Link ER706WP-4G Omada 4G AX3000 VPN Router PoE

Access PointWi-Fi 6PoE+
$590.43
inc GST ▲ +GST

Features

Omada Multi-Gigabit VPN Router

- Quad-core @2.0GHz CPU

- 2× 2.5G RJ45 WAN/LAN ports

- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)

- 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)

- Up to 11 WAN ports

- Multi-WAN Load Balancing raises the utilization rate of multi-line broadband

- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN

- Centralized cloud management via the web or the Omada app*

- Standalone management via web, CLI, SNMP, and RMON

- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.

Specifications

Technical Specifications

Access Control - Source/Destination IP-Based ACL- Stateful ACL- IPv4/IPv6 ACL- National Based ACL
Filtering - WEB Group Filtering§- URL Filtering- Web Security§
ARP Inspection - Sending GARP Packets§- ARP Scanning§- IP-MAC Binding§
Attack Defense - TCP/UDP/ICMP Flood Defense- Block TCP Scan (Stealth FIN/Xmas/Null)- Block Ping from WAN
Standards and Protocols - IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface - 1× 2.5G RJ45 WAN/LAN Port- 1× 2.5G RJ45 WAN/LAN Port- 2× Gigabit SFP WAN/LAN Ports- 8× Gigabit RJ45 WAN/LAN Ports- 1× RJ45 Console Port- 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media - 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)- 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)- 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 100-240 VAC, 50/60 Hz
Flash 128MB NAND
DRAM 1 GB DDR4
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting - Desktop- Rackmountable
Max Power Consumption 18.5W (With USB 3.0 connected)
GRE - Unencrypted: 1153.0 Mbps- Encrypted: 559.2 Mbps
WireGuard VPN 771.6 Mbps
Concurrent Session 1,000,000
New Sessions /Second 7,000
NAT (Static IP) 2345.71 Mbps / 2351.22 Mbps
NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps
NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps
NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps
IPsec VPN Throughput - ESP-SHA1-AES256: 1125.60 Mbps- ESP-SHA256-AES256: 1133.1 Mbps- ESP-SHA384-AES256: 1126.6 Mbps- ESP-SHA512-AES256: 1132.8 Mbps
OpenVPN UDP: 266.2 Mbps
L2TP VPN Throughput - Unencrypted: 2724.5 Mbps- Encrypted: 1018.4Mbps
PPTP VPN Throughput - Unencrypted: 3035 Mbps- Encrypted: 534.6 Mbps
SSL VPN Throughput 263.1 Mbps
66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps
1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps
WAN Connection Type - Static IP/Dynamic IP- PPPoE (supports MRU Configuration)- PPTP- L2TP- Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address†
DHCP - DHCP Server- DHCPv6 PD Server (only in Standalone Mode)- DHCP Options Customization- DHCP Address Reservation- Multi-IP Interfaces- Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Routing - Static Routing- Policy Routing- RIP (available in Standalone Mode)- OSPF (available in Standalone Mode)
Bandwidth Control IP/Port-based Bandwidth Control
Load Balance - Intelligent Load Balance- Application Optimized Routing- Link Backup (Timing, Failover)- Online Detection
NAT - One-to-One NAT§- Multi-Net NAT- Virtual Server- Port Triggering§- NAT-DMZ- FTP/H.323/SIP/IPSec/PPTP ALG- UPnP
Session Limit IP-based Session Limit
GRE Only in Standalone Mode
SSL VPN 80 Tunnels
IPsec VPN - 150 IPSec VPN Tunnels- LAN-to-LAN, Client-to-LAN- Main, Aggressive Negotiation Mode- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm- IPsec Failover- IKE v1/v2- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm- NAT Traversal (NAT-T)- Dead Peer Detection (DPD)- Perfect Forward Secrecy (PFS)
PPTP VPN - PPTP VPN Server- PPTP VPN Client (15)**- 150 Tunnels- PPTP with MPPE Encryption
L2TP VPN - L2TP VPN Server- L2TP VPN Client (15)**- 150 Tunnels- L2TP over IPSec
OpenVPN - OpenVPN Server- OpenVPN Client (11)**- 121 OpenVPN Tunnels- "Certificate + Account" Mode- Full Mode
Web Authentication - No Authentication- Simple Password*- Hotspot (Local User/Voucher*/SMS*/Radius*)- External Radius Server- External Portal Server*- LDAP
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management - Omada Cloud-Based Controller- Omada Hardware Controller- Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance - Web Management Interface- Remote Management- Export & Import Configuration- SNMP v1/v2c/v3*- Diagnostics (Ping & Traceroute)§- NTP Synchronize§- Port Mirroring- CLI (only in Standalone Mode)- Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features - Automatic Device Discovery*- Batch Configuration*- Batch Firmware Upgrading*- Intelligent Network Monitoring*- Abnormal Event Warnings*- Unified Configuration*- Reboot Schedule*
Certification CE, FCC
Package Contents - ER7412-M2- Power Cord- Quick Installation Guide- Rackmount Kit- RJ45 Console Cord
System Requirements - Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11- MAC OS, NetWare, UNIX or Linux
Environment - Operating Temperature: 0-45 ? (32-113 ?);- Storage Temperature: -40-70 ? (-40-158 ?)- Operating Humidity: 10-90% RH non-condensing- Storage Humidity: 5-90% non-condensing
