FUSION

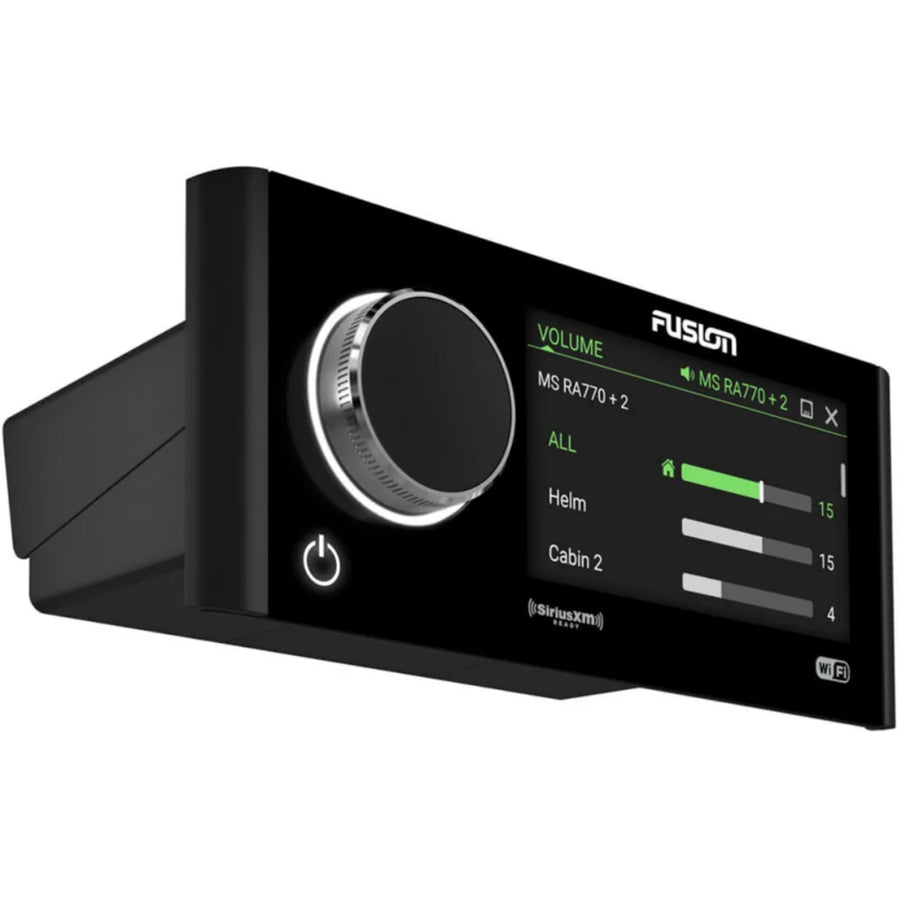

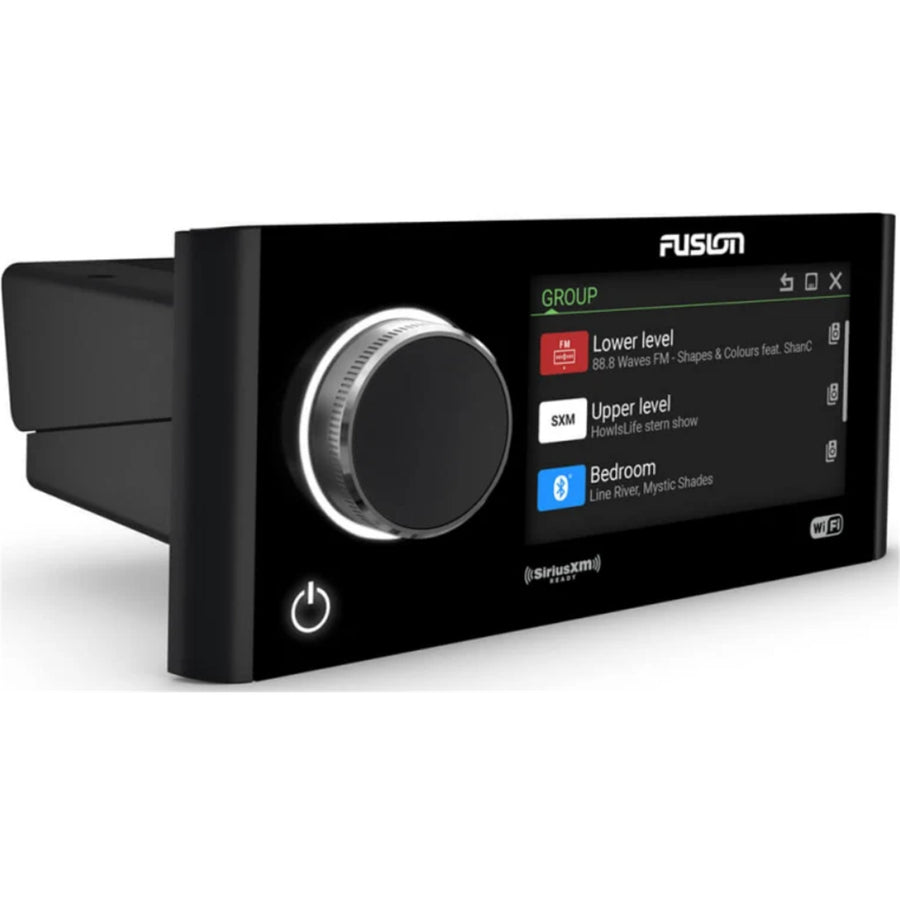

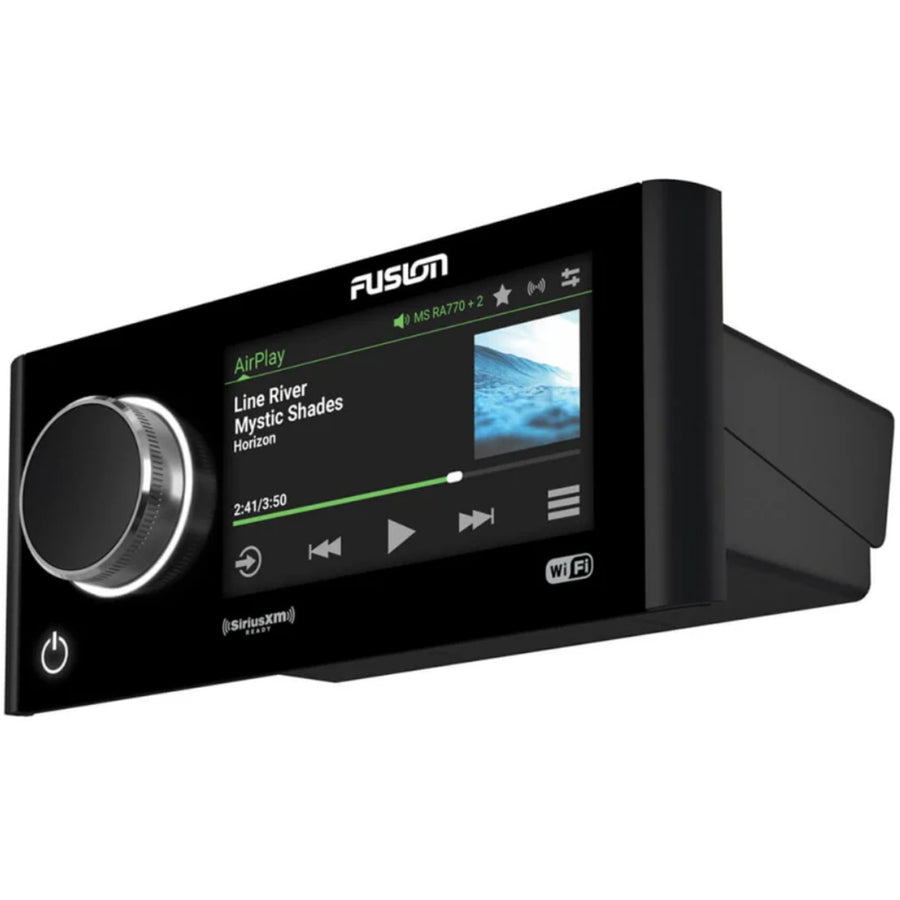

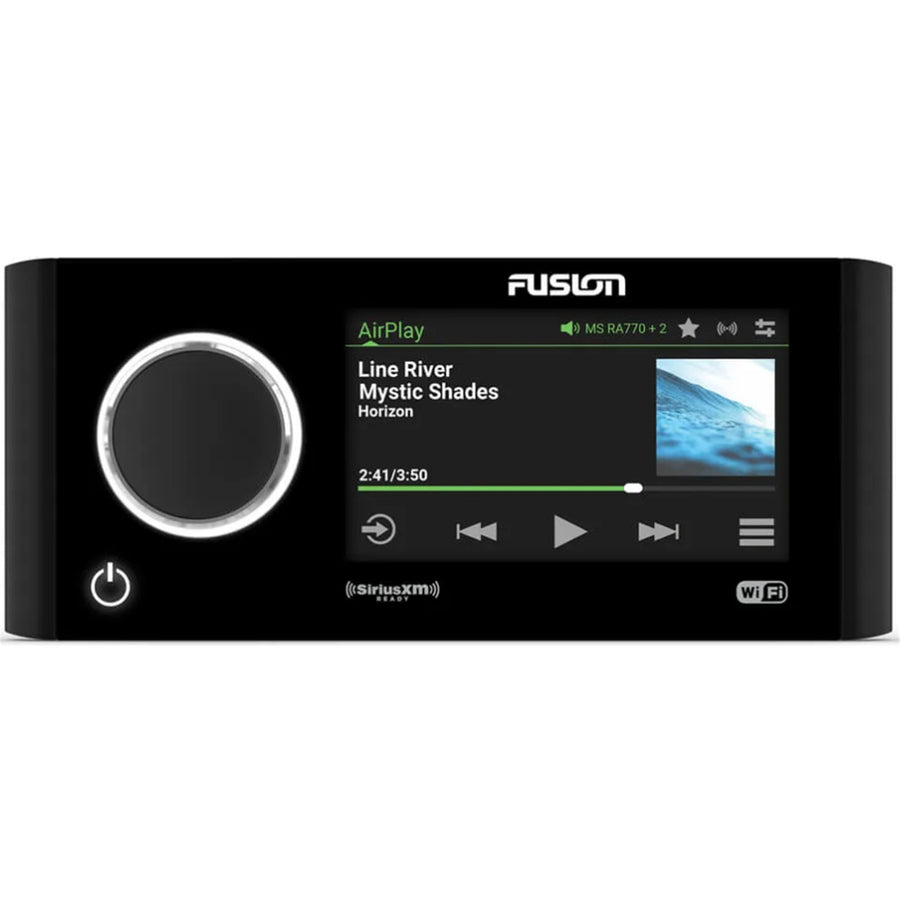

FUSION Apollo Marine Entertainment System with Built-in Wi-Fi RA770
$1,279.57
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
FUSION Apollo Marine Entertainment System with Built-in Wi-Fi RA770
Specifications
Technical Specifications
| Physical dimensions | Stereo dimensions (H x W x D) 82 x 192 x 119.4 mm |
|---|---|
| Weight | 750 g |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 0° to 50° C |
| Current (max.) | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| Bluetooth wireless range | Up to 10 metres |
| ANT wireless range | Up to 3 metres |
| Wireless frequencies/protocols | Wi-Fi 2.4 GHz @ +15 dBm nominal Bluetooth 2.4 GHz @ +10 dBm nominal ANT 2.4 GHz @ +4 dBm nominal |
| Compass-safe distance | 150 mm |
| Display | 4.3-inch capacitive touch glass colour LCD |
| Built-in amplifier | Class-D (2 Ohm stereo-stable) |
| Peak power | 280 W |
| Rated power output (2 Ohm) | 43 W rms x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | Yes (with preconfigured DSP profiles) |
| PartyBus™-Network capabilities | Yes (wired or wireless) |
| Fusion-Link™ control | Yes (with MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 4 zones |
| Built-in Wi-Fi | Yes |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| SiriusXM-ready | Yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | Yes (requires DAB100A antenna module) |
| Optical audio input | Yes |
| NRX remote compatibility | Yes |
| Multi-language interface | Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian |
| Software updates | Over-the-air software updates via the Fusion-Link app, USB |
| Sources | AM / FM / Bluetooth / Apple AirPlay 2 / digital optical input / USB audio / iPhone / iPod / AUX x2 / UPnP / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehic |
| Auxiliary input | Two RCA inputs (AUX1, AUX2) |
| Optical audio input | One digital optical input (SPDIF) port |
| Ethernet | One Ethernet port |
| NMEA 2000 | One NMEA 2000 port |
| USB 2.0 | One USB 2.0 port |
| SiriusXM satellite radio | One SiriusXM port (requires SiriusXM Connect vehicle tuner; does not support traffic and weather) |
| M/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 4 zones (requires external amplification) |
| Line out | 4 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | 1 x mono output (requires external amplification) |
| Warranty | 12 months |
| Brand | FUSION |
|---|---|
| Product Type | Car Audio |
| Weight | 1.01 kg |
| Warranty |
|---|
