-0%

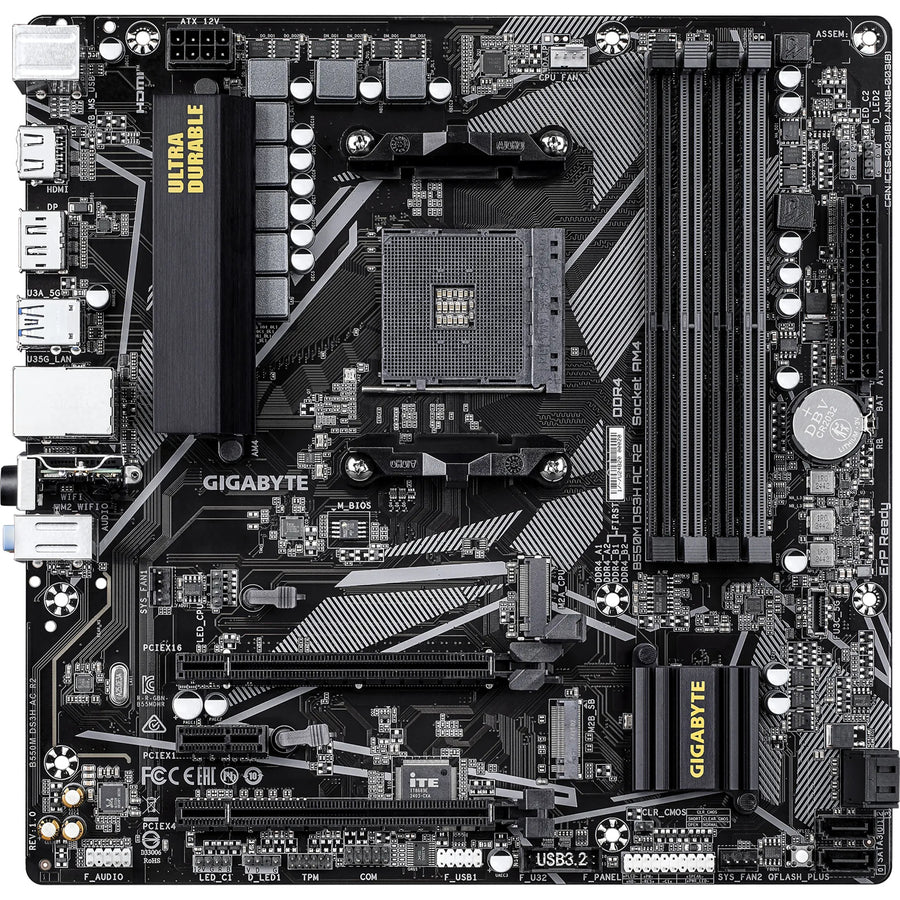

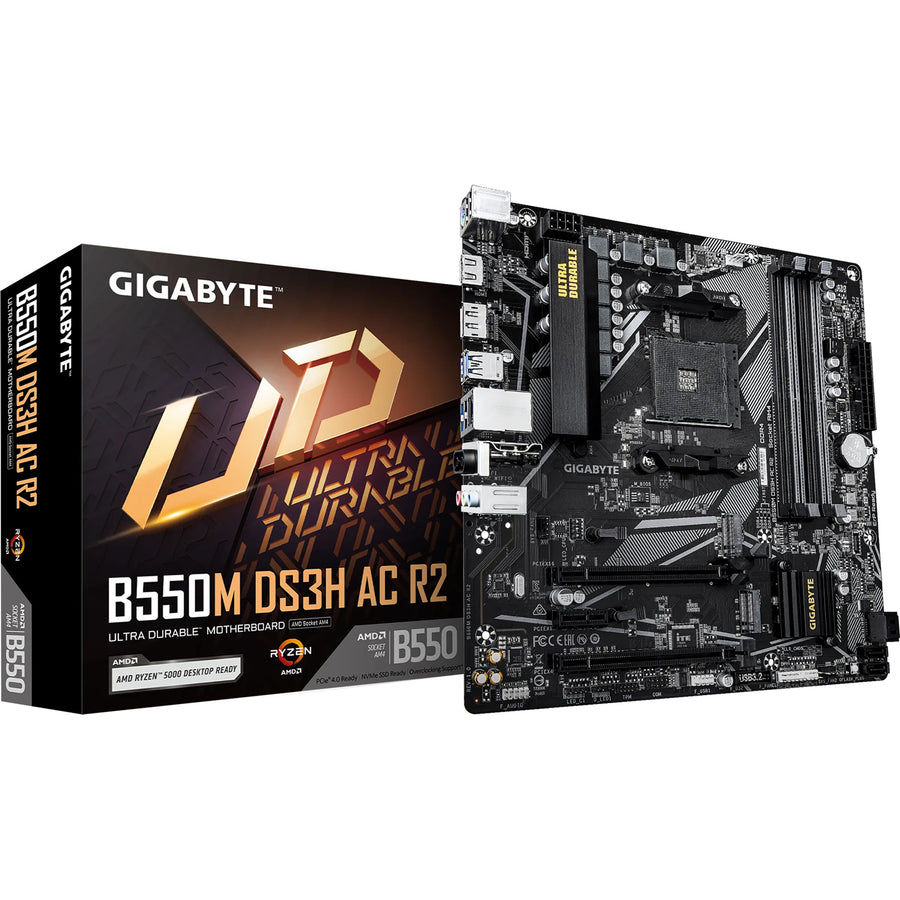

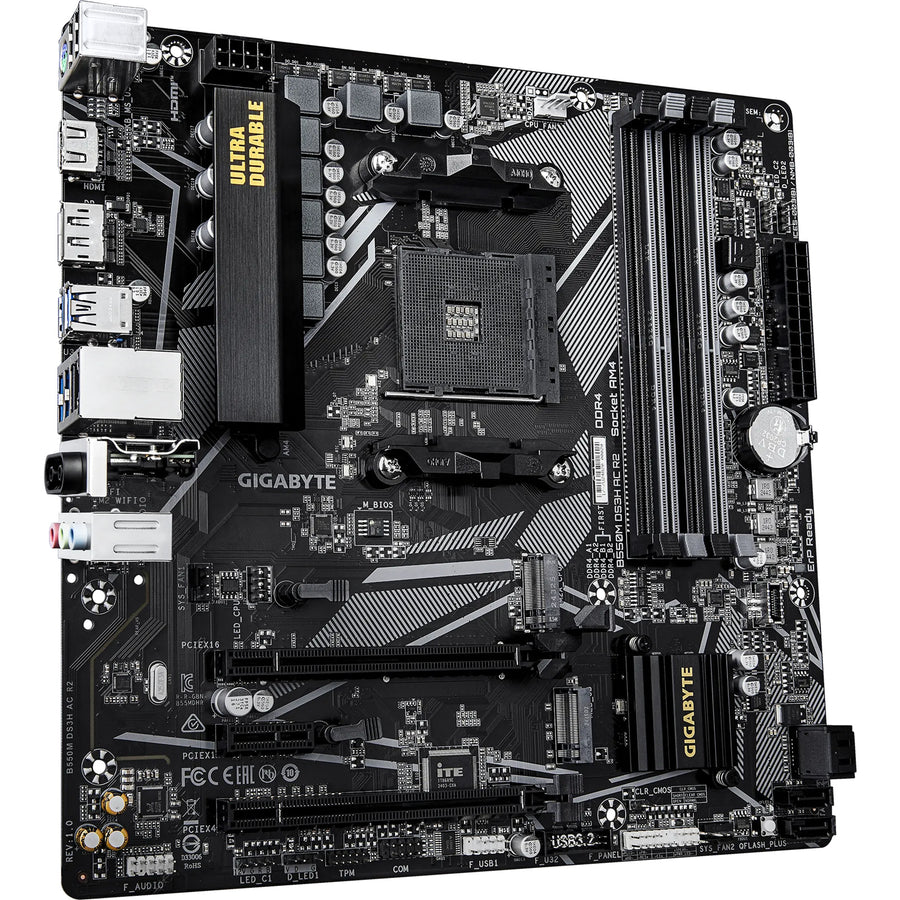

Gigabyte B550M DS3H AC R2 mATX Motherboard For AMD Ryzen 5000 Series CPUs Socket AM4 - AMD B550 Chipset - 2x M.2 - 1x Internal USB 2.0 Header - 1x Internal USB 3.2 Header - 1 X Front Type-C. 1x GbE - WiFi AC + BT
Gigabyte B550M DS3H AC R2 mATX Motherboard For AMD Ryzen 5000 Series CPUs Socket AM4 - AMD B550 Chipset - 2x M.2 - 1x Internal USB 2.0 Header - 1x Internal USB 3.2 Header - 1 X Front Type-C. 1x GbE - WiFi AC + BT
Gigabyte B550M DS3H AC R2 mATX Motherboard For AMD Ryzen 5000 Series CPUs Socket AM4 - AMD B550 Chipset - 2x M.2 - 1x Internal USB 2.0 Header - 1x Internal USB 3.2 Header - 1 X Front Type-C. 1x GbE - WiFi AC + BT
Gigabyte B550M DS3H AC R2 mATX Motherboard For AMD Ryzen 5000 Series CPUs Socket AM4 - AMD B550 Chipset - 2x M.2 - 1x Internal USB 2.0 Header - 1x Internal USB 3.2 Header - 1 X Front Type-C. 1x GbE - WiFi AC + BT
Gigabyte

Gigabyte B550M DS3H AC R2 mATX Motherboard For AMD Ryzen 5000 Series CPUs Socket AM4 - AMD B550 Chipset - 2x M.2 - 1x Internal USB 2.0 Header - 1x Internal USB 3.2 Header - 1 X Front Type-C. 1x GbE - WiFi AC + BT

SKU: B550M DS3H AC R2 ● In Stock
$168.69$169.00
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Gigabyte

Gigabyte H810M Gaming WiFi6 DDR5 Gen 5 LGA1851 Motherboard

Access PointWi-Fi 62.5G
$269.56
inc GST ▲ +GST
Gigabyte

Gigabyte B760M Gaming Plus WIFI DDR4 mATX LGA1700 Motherboard

Access PointWireless1G
$239.12
inc GST ▲ +GST
MSI

MSI B850-P WIFI ATX Motherboard For AMD Socket AM5 - B850 Chipset, Supports AMD Ryzen 9000 / 8000 / 7000 Series Processor, PCIE 5.0, 3xM.2, 4x DDR5, 2x Internal USB 2.0 Header, 2x Internal USB 3.2 Header, 1x Internal Type C Header.

$342.60$349.00
inc GST ▲ +GST
MSI

MSI MAG B850 TOMAHAWK MAX WIFI ATX Motherboard For AMD Socket AM5 - B850 Chipset, Supports AMD Ryzen 9000 / 8000 / 7000 Series Processor, PCIE 5.0, 4xM.2, 4x DDR5, 2x Internal USB 2.0 Header, 2x Internal USB 3.2 Header, 1x Internal Type C H

Wireless
$426.08$433.91
inc GST ▲ +GST
MSI

MSI B850 GAMING PLUS WIFI ATX Motherboard For AMD Socket AM5 - B850 Chipset, Supports AMD Ryzen 9000 / 8000 / 7000 Series Processor, PCIE 5.0, 3xM.2, 4x DDR5, 2x Internal USB 2.0 Header, 2x Internal USB 3.2 Header, 1x Internal Type C Header

$349.56$356.25
inc GST ▲ +GST

Specifications

Technical Specifications

CPU AMD Socket AM4, support for:AMD Ryzen™ 5000 G-Series Processors/AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 3000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.)
Chipset AMD B550
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memorySupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 5120x2880 @ 60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)Maximum shared memory of 16 GB
Audio Realtek® ALC1220 CODEC* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless Communication module Realtek® Wi-Fi RTL8821CE- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band- BLUETOOTH 5.0- Support for 11ac wireless standard(Actual data rate may vary depending on environment and equipment.)
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB CPU:- 4 x USB 3.2 Gen 1 ports on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button

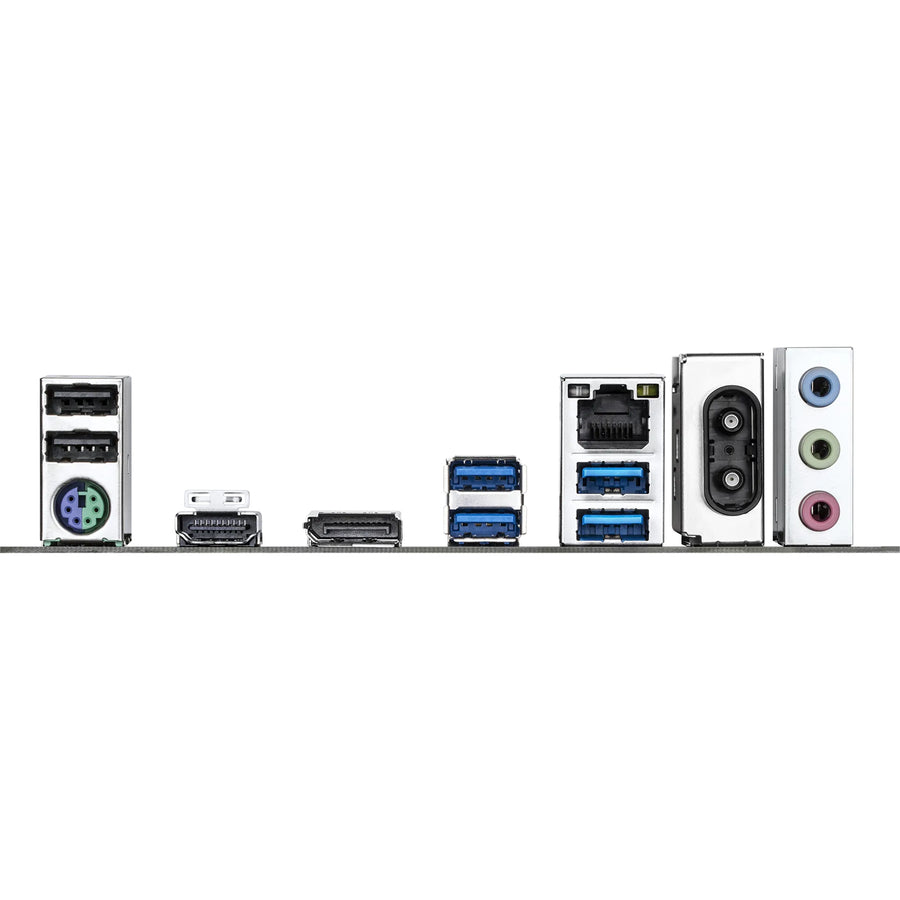

Back Panel Connectors 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x HDMI port (Note)1 x DisplayPort (Note)4 x USB 3.2 Gen 1 ports1 x RJ-45 port2 x antenna connectors3 x audio jacks(Note) Actual support may vary by CPU.
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS- EasyTune- RGB Fusion- Smart Backup- System Information ViewerSupport for Q-Flash PlusSupport for Q-Flash
Bundled Software Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
