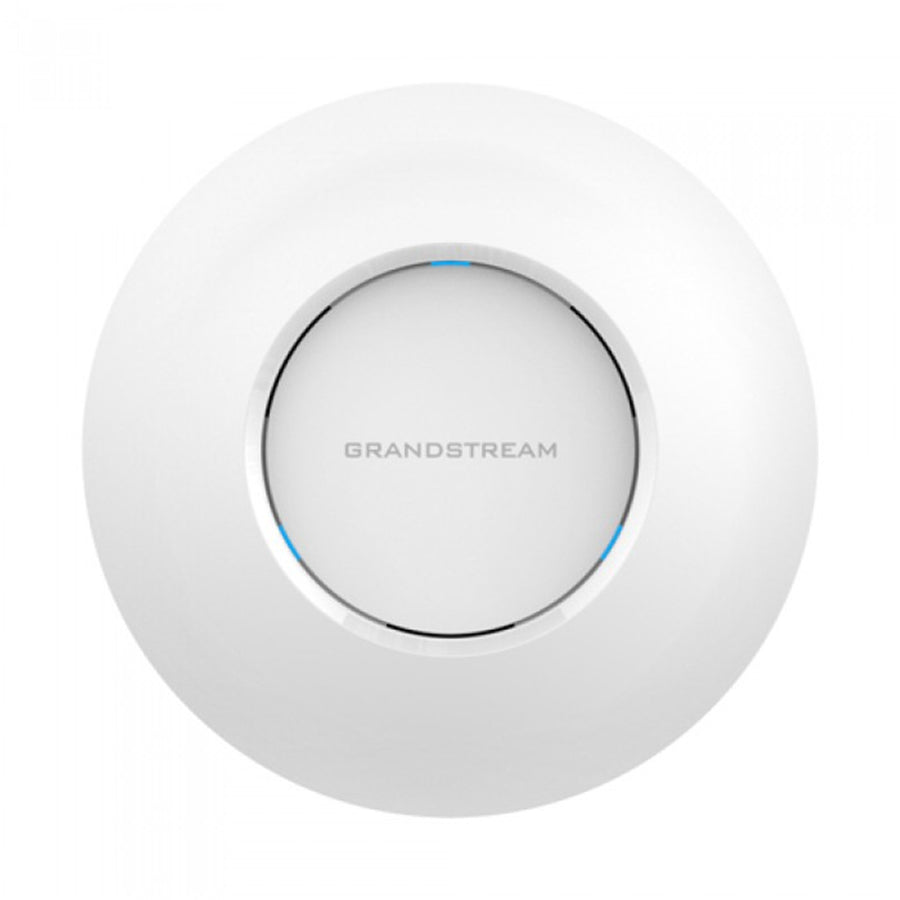

Grandstream GWN7630 (AC2400) Dual-Band 8-Stream Wi-Fi 5 Access Point with 1GbE x2 (PoE+ 16.5W)
Grandstream

Grandstream GWN7630 (AC2400) Dual-Band 8-Stream Wi-Fi 5 Access Point with 1GbE x2 (PoE+ 16.5W)

SKU: GWN7630 ● In Stock
$153.71$156.18
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

TP-Link

TP-Link Tapo H110 Smart IR & IoT Hub

$43.46$50.43
inc GST ▲ +GST
MikroTik

RBwAPG-60adkit - MikroTik Wireless Wire 1Gbps 60GHz Wireless Bridge Kit

Network AccessoryWirelessPoE
$445.21$489.77
inc GST ▲ +GST
Ubiquiti

Ubiquiti RD-5G31-AC - 5GHZ ROCKETDISH 31DBI AC

Network Accessory
$634.77
inc GST ▲ +GST
MikroTik

RBLHGG-60adkitr2 - MikroTik Wireless Wire Dish Preconfigured 60GHz Pair

Network AccessoryWireless
$545.21
inc GST ▲ +GST
Cambium Networks

Cambium Networks C050910C801A - Cambium ePMP 5 GHz Force 300-25 High Gain Radio

Network Accessory
$359.12
inc GST ▲ +GST

Features

The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product's web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstream's free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

- 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
- Dual-band 4x4:4 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE+
- Supports 200+ concurrent Wi-Fi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management

Specifications

Technical Specifications

Wi-Fi Standards IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas 4 dual band internal antennas2.4GHz, gain 4dBi5 GHz, gain 5dBi
Wi-Fi Data Rates IEEE 802.11ac: 6.5 Mbps to 1733MbpsIEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 MbpsIEEE 802.11n: 6.5Mbps to 600MbpsIEEE 802.11b: 1, 2, 5.5, 11 MbpsIEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz radio: 2412 - 2484 MHz5GHz radio: 5180 - 5825 MHz
Channel Bandwidth 2.4G: 20 and 40 MHz5G: 20,40 and 80 MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 4×4:4 2.4G(MIMO)4×4:4 5G(MU-MIMO)
Coverage Range Up to 175 meters*coverage range can vary based on environment
Maximum TX Power 2.4G: 27 dBm5G: 25 dBm*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity 2.4G802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS75G802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8;802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs 15 SSIDs per access point
Concurrent Clients 200+
Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 3 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management = 50 APs: Light-weight Master in AP= 50 APs: Cloud management (GWN.Cloud)
Power and Green Energy Efficiency Support 802.3 az ;POE 802.3af/ 802.3at;Max Consumption: 16.5W
Environmental Operation: 0°C to 40°CStorage: -10°C to 60°CHumidity: 10% to 90% Non-condensing
Physical Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 590gUnit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 710gEntire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 930g
Package Content GWN7630 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide
Compliance FCC, CE, RCM, IC
