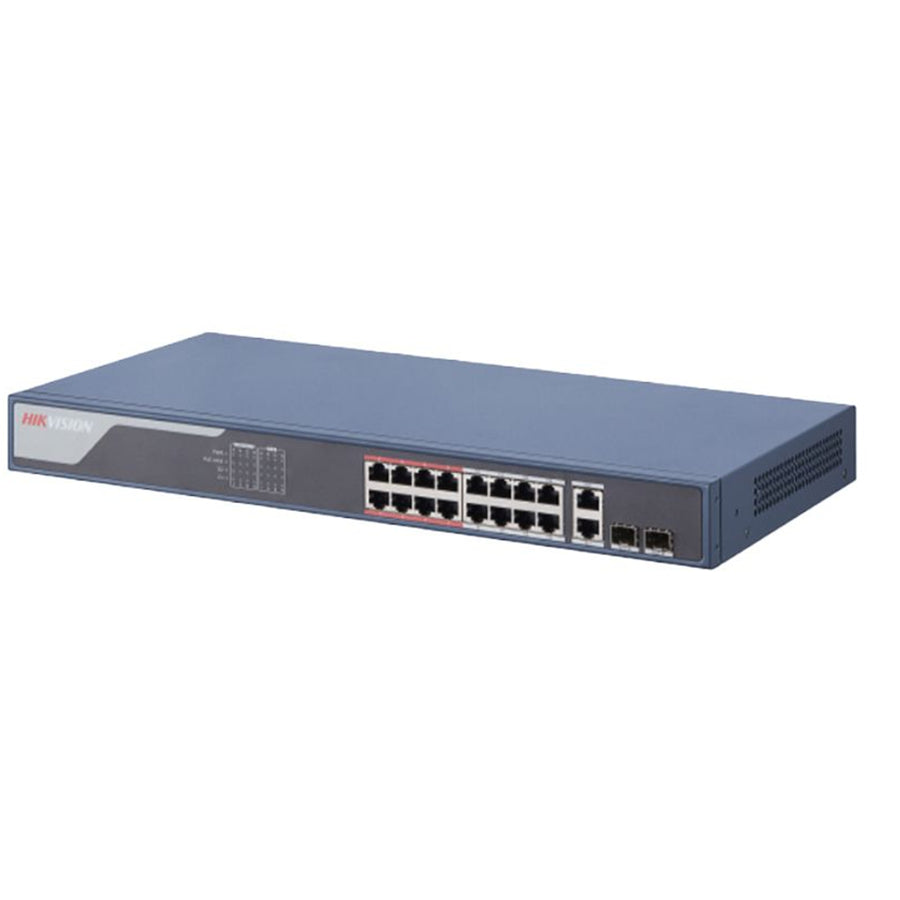

HIKVISION 16 PORT SMART MANAGED POE SWITCH

SKU: 301803156 ● In Stock
$414.78
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

HIKVISION 16 PORT SMART MANAGED POE SWITCH

Specifications

Technical Specifications

Shell Metal material
Net Weight 2.59 kg (5.71 lb)
Dimensions (W × H × D) 440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
Operating Temperature 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 100~240 V AC, 50/60 Hz, Max. 2.5 A
Max. Power Consumption 250 W
Installation Mode Rack (equipped with mounting ears)
Power Consumption in Idle 10 W
Surge Protection 6 kV
Ports 16 × 10/100 Mbps PoE port, 2 × Gigabit combo
MAC Address Table 16 K
Switching Capacity 9.2 Gbps
Packet Forwarding Rate 6.84 Mpps
Internal Cache 4 Mbits
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port PoE: Ports 1 to 16
Max. Port Power 30 W
PoE Power Budget 230 W
Long Range Ports 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition.
VIP Port Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Link Aggregation Aggregates multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display th
System Maintenance Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
EMC FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (IC
Safety UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
Warranty 12 months
