HIKVISION

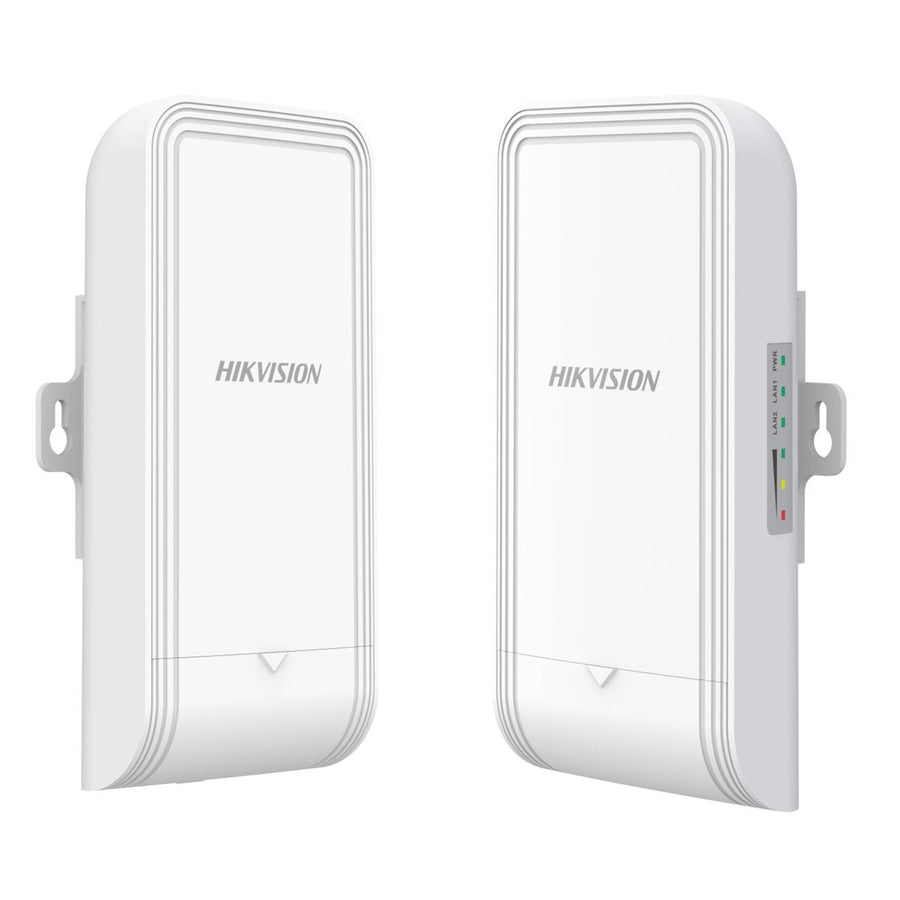

HIKVISION 2.4GHZ 300MBPS 1KM WIRELESS BRIDGE KIT

SKU: 317200474 ● In Stock
$104.35
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

HIKVISION 2.4GHZ 300MBPS 1KM WIRELESS BRIDGE KIT

Specifications

Technical Specifications

Product Dimensions (W × H × D) 90.8 mm × 187.87 mm × 57.87 mm (3.57'' × 7.39'' × 2.27'')
Net Weight 0.26 kg (0.57 lb) per device
Packing Method Packing in pairs
Working Temperature -30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity 5% to 95% (no condensation)
Storage Temperature -40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity 5% to 95% (no condensation)
Installation Mode Pole Mounting
Ingress Protection IP55
Power Consumption 1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W
Max. Transmission Rate of Air Interface ≤ 300 Mbps
Wireless Standard IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
Working Frequency Band 2400 MHz ~ 2483.5 MHz
Antenna Gain 7 dBi
Antenna Angle (H) Beamwidth [3 dB] 60° (V) Beamwidth [3 dB] 50°
Transmitting Power 22 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity -87±2 dBm @HT40 MCS0
Throughput Rate PTP: 90 Mbps/0.2 KM(HT40), 90 Mbps/0.5 KM(HT40), 70 Mbps/1 KM(HT40) PTMP(1 to 4): 40 Mbps/1 KM(HT40)
Network Interface 2 × 10/100 Mbps RJ45 ports
LED Indicator Power indicator, LAN indicator, Signal intensity indicator
Reset Hardware resetting button
Power Supply 12-24 VDC Passive PoE
Application Function IFM, IPM
Channel Width 10/20/40 MHz
Channel Selection Auto/manual selection
Security Mode WPA2-PSK
Security Mechanism Wireless network name hidden
Network Protocol NTP (network time synchronization), SADP (auto search for IP address), HTTPS/HTTP (web management), SSH (debugging)
Management Method HCP, Web, iVMS-4200, HPP
System Log Syslog, Control center information
Upgrade Web, iVMS-4200, HCP, HPP
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the c
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
Radio EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17
Warranty 12 months
