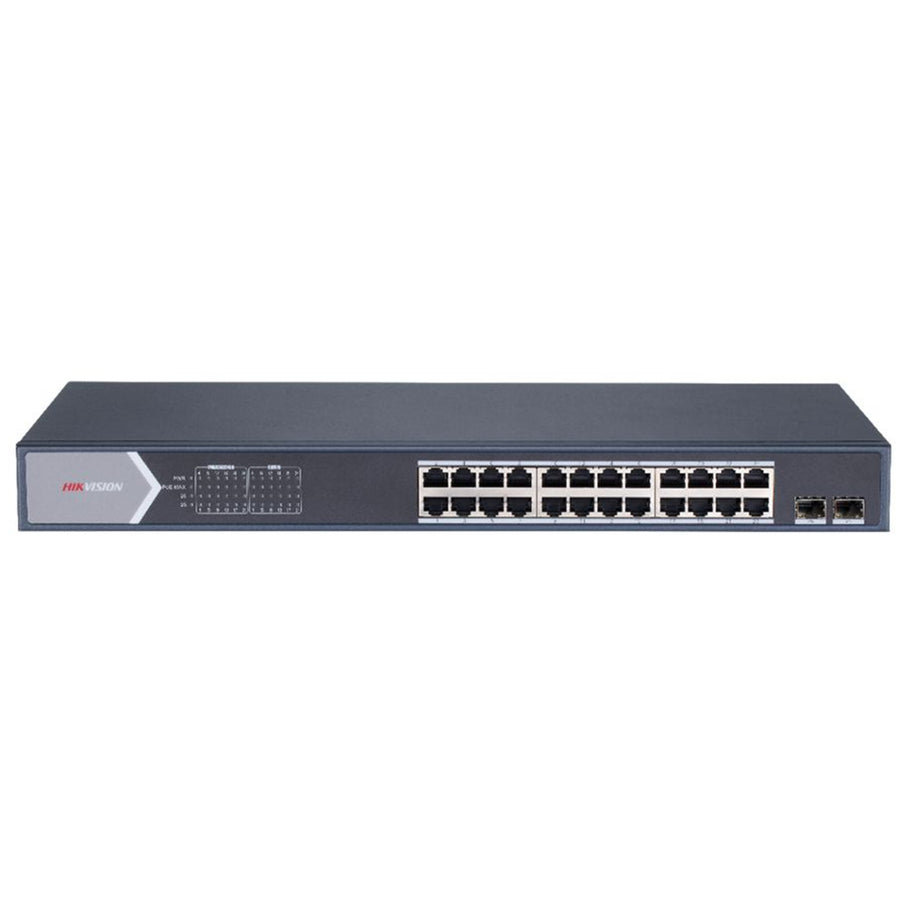

HIKVISION 24 PORT SMART MANAGED POE SWITCH

SKU: 301803157 ● In Stock
$545.22
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

HIKVISION 24 PORT SMART MANAGED POE SWITCH

Specifications

Technical Specifications

Shell Metal material
Net Weight 2.83 kg (6.24 lb)
Dimensions (W × H × D) 440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')
Operating Temperature 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 100~240 V AC, 50/60 Hz, Max. 6.5 A
Installation Mode Rack (equipped with mounting ears)
Max. Power Consumption 400 W
Power Consumption in Idle 30 W
Surge Protection 6 kV
Ports 24 x 10/100 Mbps PoE port, 2 x Gigabit combo
MAC Address Table 16 K
Switching Capacity 14.8 Gbps
Packet Forwarding Rate 11.01 Mpps
Internal Cache 4 Mbits
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port PoE: Ports 1 to 24
Max. Port Power 30 W
PoE Power Budget 370 W
Long Range Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition.
VIP Port Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Link Aggregation Aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group.
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display th
System Maintenance Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
Warranty 12 months
