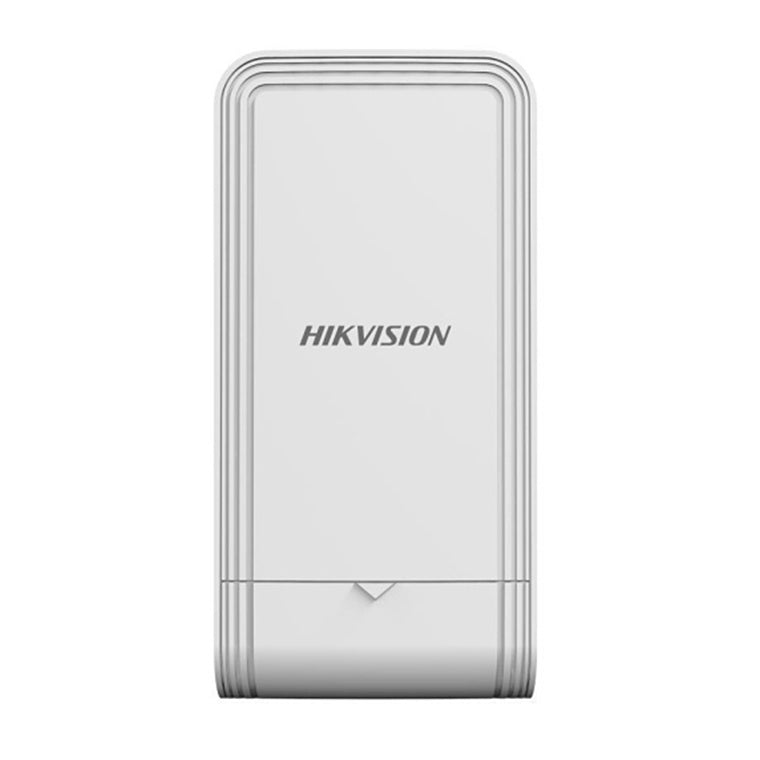

HIKVISION 317200375 Hik DS-3WF02C-5AC/O Outdoor Wireless Bridge Single End 12VDC

SKU: 317200375 ● In Stock
$200.00
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

HIKVISION

HIKVISION 317200376 Hik DS-3WF03C-5AC Outdoor Wireless Bridge Single End inclPoE

$160.87
inc GST ▲ +GST

Features

HIKVISION 317200375 Hik DS-3WF02C-5AC/O Outdoor Wireless Bridge Single End 12VDC

Specifications

Technical Specifications

Product Dimensions (W × H × D) 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
Net Weight 0.307 kg (0.677 lb)
Packing Method Single unit packing
Working Temperature -30 °C to 70 °C (-22 °F to 158 °F)
Working Humidity 5% to 95% (no condensation)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity 5% to 95% (no condensation)
Installation Mode Pole Mounting
Ingress Protection IP55
Power Consumption 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
Max. Transmission Rate of Air Interface ≤ 867 Mbps
Wireless Standard IEEE 802.11/a/n/ac
Working Frequency Band 5150 MHz ~ 5250 MHz, 5250 MHz~ 5350 MHz, 5470 MHz~ 5725 MHz, 5725 MHz~ 5850 MHz
Antenna Gain 12 dBi
Antenna Angle (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
Transmitting Power 22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity -84±2dBm@AC80-MCS0
Throughput Rate PTP: 230 Mbps/0.5 KM(AC80), 200 Mbps/1 KM(AC80), 40 Mbps/5 KM(AC80) PTMP(1 to 8): 80 Mbps/1 KM(AC80)
Network Interface 2 × 1000 Mbps RJ45 ports
LED Indicator Power indicator, LAN indicator, Signal intensity indicator
Reset Hardware resetting button
Power Supply 12 VDC/1 A Passive PoE
Application Function TDMA, DFS, TPC, IFM, IPM
Channel Width 20/40/80 MHz
Channel Selection Auto/manual selection
Security Mode WPA2-PSK
Security Mechanism Wireless network name hidden
Network Protocol NTP (network time synchronization), SADP (auto search for IP address), HTTPS/HTTP (web management), SSH (debugging)
Management Method Web, iVMS-4200, HCP, HPP
System Log Syslog, Control center information
Upgrade Web, iVMS-4200, HCP, HPP
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the c
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZ
Safety UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
Radio EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17, FCC Part 15.247
Warranty 12 months
