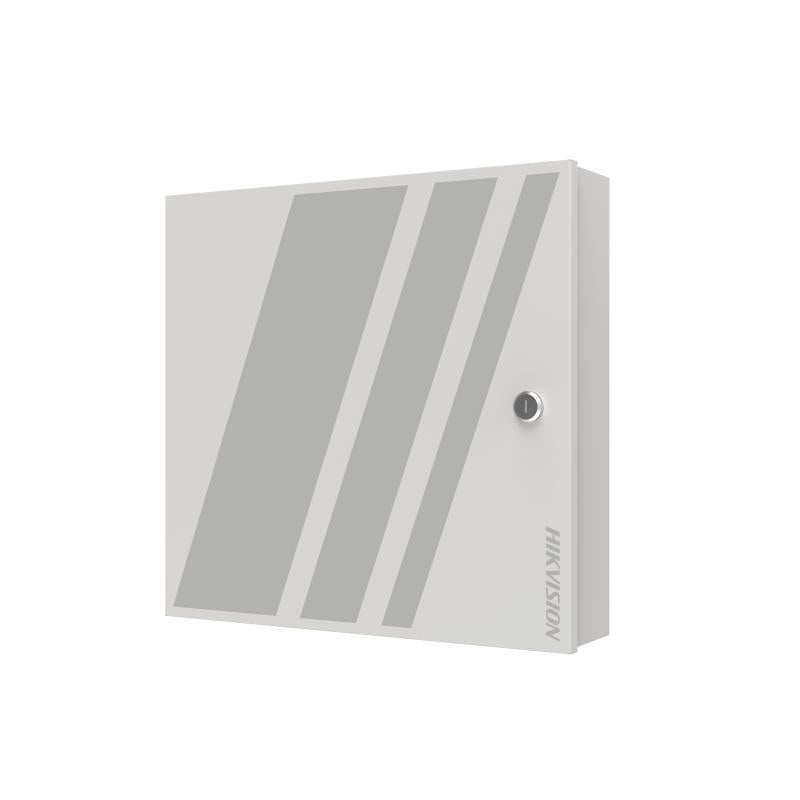

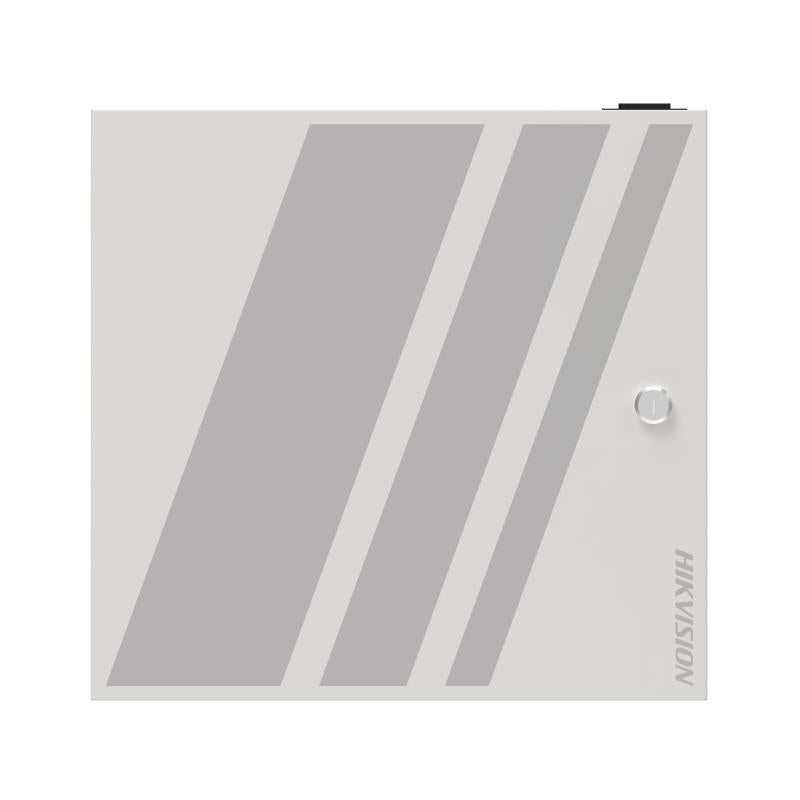

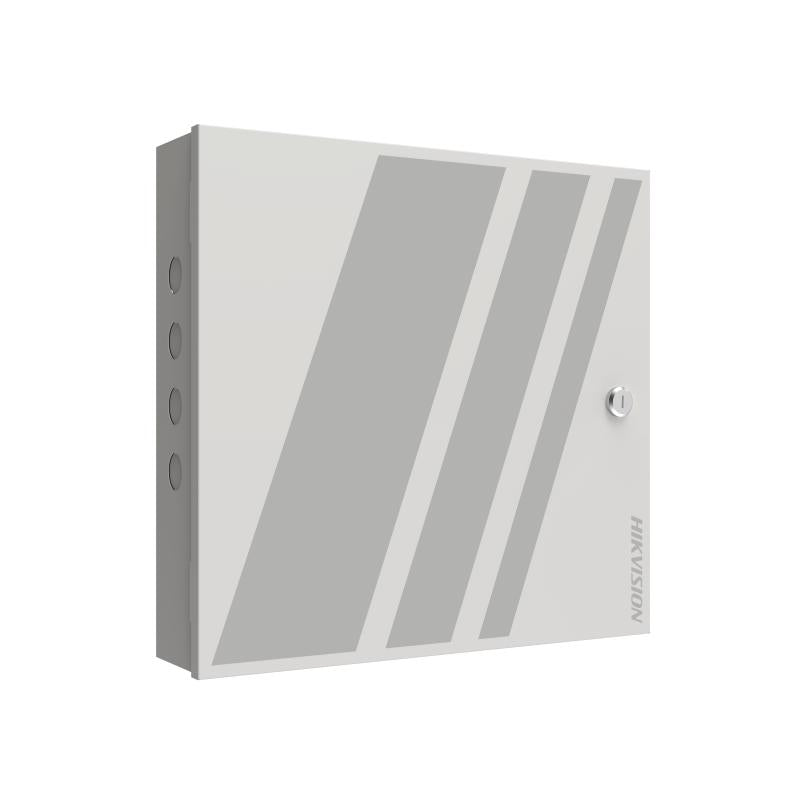

HIKVISION DS-K2704X Hik DS-K2704X Access Controller & PSU in Cabinet 4 Door
$890.43
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
DS-K2704X — Access Controller.
Specifications
Technical Specifications
| Operating system | Linux |
|---|---|
| Wired network | 1, 10/100/1000 Mbps self-adaptive |
| Network interface | 1 |
| Lock control | 4 |
| Exit button | 4 |
| Door contact input | 4 |
| Alarm input | 8 |
| Alarm output | 4 |
| TAMPER | 1 |
| RS-485 | 7, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy) |
| Wiegand | 4, standard 26/34 input, supports custom Wiegand settings |
| USB | 1, USB 2.0 |
| Fire interface | 1 |
| User capacity | 100,000 |
| Fingerprint capacity | 10,000 |
| Card capacity | 200,000 |
| Event capacity | 600,000 |
| Linked door capacity | Self: 4 doors Extended: up to 128 doors (connected with 62 access modules) |
| Linked card reader capaciry | 8 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers |
| Fingerprint recognition duration | ＜ 1 s |
| Indicator | 12 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status |
| Battery | Charge and discharge |
| Power supply | 100 VAC to 240 VAC |
| Power consumption | ≤ 102 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 ° F) |
| Working humidity | 0% to 90% (No condensing) |
| Installation | Wall mounting |
| Language | English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian |
| Configuration via Web browser | Support |
| Multi-factor authentication | Support |
| First person in | Support |
| Anti-passback | Support 32 routes (64 card readers each) |
| Multi-door interlocking | Support 32 groups (32 doors each) |
| Brand | Hikvision |
|---|---|
| Product Type | Smart Home & Security > Security Systems |
