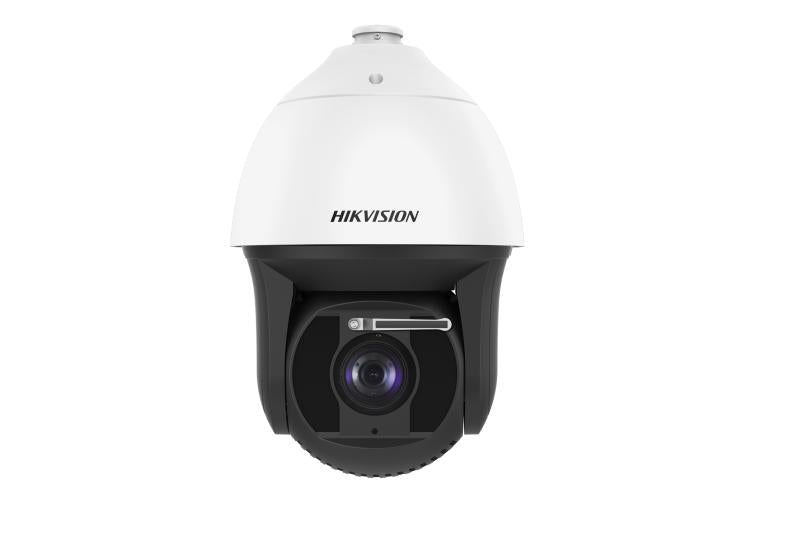

Hikvision DS-2DF8225IX-AELW(T5)
Hikvision

HIKVISION DS2DF8225IX-AELW(T5) 8" 2 MP 25x DarkFighter IR Network Speed Dome PTZ 25x Zoom + Wiper

SKU: DS2DF8225IX-AELW(T5) ● In Stock
$2,171.43
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Hikvision

HIKVISION DS-2ST5C432MWG-EW/26 4MP Polymer TandemVu PTZ 32x

$2,842.61
inc GST ▲ +GST
Hikvision

HIKVISION 327002078 Hik DS-2DF8442IXG1-ELWY Darkfighter 4MP IR PTZ 42xZoom+Wip.x

$3,099.13
inc GST ▲ +GST
Hikvision

HIKVISION 327001337 HIK DS-2SE7C432IWG-K/4G/14 TandemVU 32x 4G PTZ Camera

$2,093.91
inc GST ▲ +GST
Hikvision

HIKVISION 327000672 Hik DS-2DE3A400BW-DE Mini 350deg PTZ 4mm 16x Digital IP66

$551.30
inc GST ▲ +GST
Hikvision

HIKVISION 327000120 Hik DS-2SE7C144IW-AE Acusense 4MP 32X PTZ + 4mm PanoVu.x

$2,330.43
inc GST ▲ +GST

Features

DS-2DF8225IX-AELW(T5) — 8-inch 2 MP 25X DarkFighter IR Network Speed Dome.

Specifications

Technical Specifications

Image Sensor 1/1.8" progressive scan CMOS
Min. Illumination Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ ((F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 25x optical, 16x digital
DORI Detect (25px/m): 2034.5 m Observe (63px/m): 807.3 m Recognize (125px/m): 406.9 m Identify (250px/m): 203.4 m
Max. Resolution 1920 × 1080
Focus Auto, semi-auto, manual, rapid focus
Focal Length 5.9 mm to 147.5 mm
Zoom Speed Approx. 4.8 s (optical, wide-tele)
FOV Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele)
Aperture Max. F1.5
Supplement Light Type IR
Supplement Light Range Up to 400 m
Smart Supplement Light Yes
Movement Range (Pan) 360°
Movement Range (Tilt) -20° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Pan Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Main Stream 50 Hz: 25 fps ( 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
API ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
Client HikCentral, iVMS-4200, Hik-Connect
Web Browser IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 140 dB WDR
Image Stabilization Yes. Built-in gyroscope to improve EIS performance.
Regional Exposure Yes
Regional Focus Yes
Privacy Mask Up to 24 masks, polygon region, mosaic mask, mask color configurable
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE
On-board Storage Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB
Alarm 7 inputs, 2 outputs
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Video Output 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
RS-485 HIKVISION, Pelco-P, Pelco-D, self-adaptive
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan)
Basic Event Motion detection, video tampering alarm, alarm input and output
Smart Event Line crossing detection, region entrance detection, parking detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection
Smart Tracking Manual tracking, auto-tracking
Face Capture Detects up to 30 faces simultaneously. Supports detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Road Traffic Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
General Function Mirror, password protection, watermark, IP address filter
Power 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
Operating Condition Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Wiper Yes
Dimension ⌀ 266.6 mm × 410 mm (⌀ 10.50" × 16.14")
Weight Approx. 8 kg (17.64 lb.)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 62368-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 Standard,Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5
