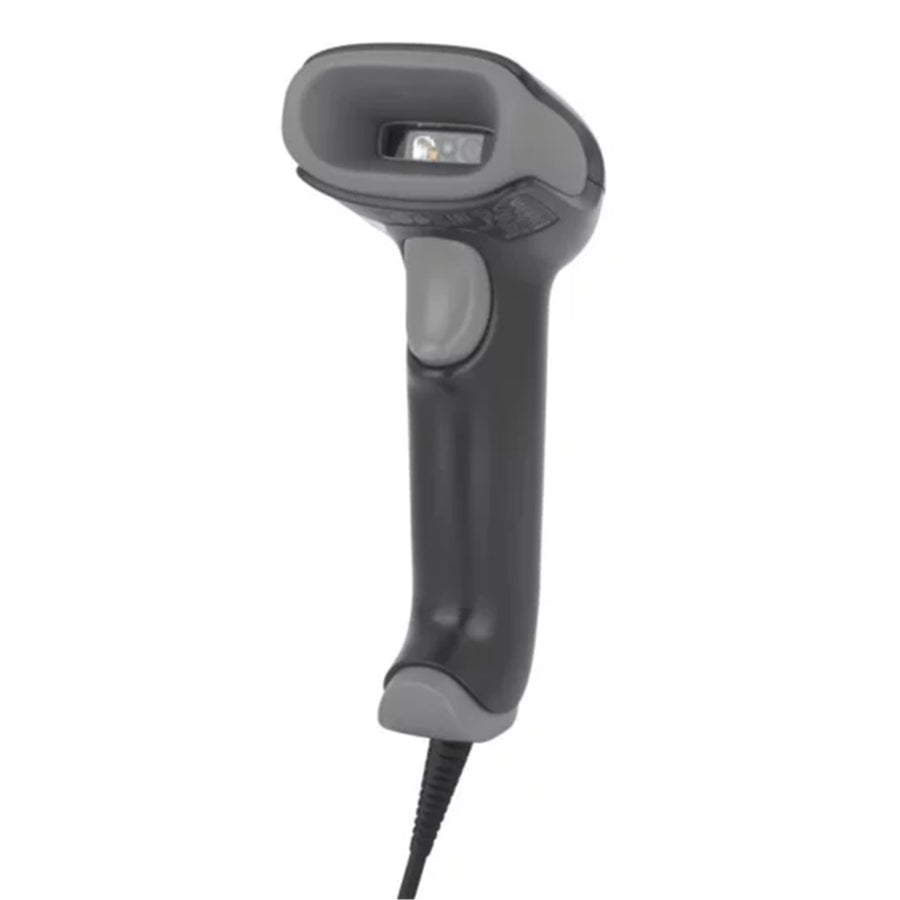

Honeywell 1470G2D-2-A Voyager Scanner-Only: Tethered, General Duty, 1D/2D, Standard Range, Black Scanner, APAC

SKU: 1470G2D-2-A ● In Stock
$286.09
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Honeywell 1470G2D-2-A Voyager Scanner-Only: Tethered, General Duty, 1D/2D, Standard Range, Black Scanner, APAC

Specifications

Technical Specifications

Manufacturer part number 1470G2D-2-A
Scanner Dimensions (L x W x H) 82 mm x 62 mm x 169 mm (3.2 in x 2.4 in x 6.6 in)
Input Voltage 4.0V DC to 5.5V DC
Operating Power 2 W (400 mA @ 5V DC)
Standby Power 0.45 W (90 mA @ 5V DC)
User indicators Good Decode LED, beeper (Adjustable tone and volume)
Scan Pattern Area Image (1040 x 720 pixel array)
Frame Per Second 60FPS
Motion Tolerance 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Print contrast 15%
Scan Angle Horizontal: 39.2° Vertical: 27.4°
Roll, Pitch, Skew ±180°, ±65°, ±70°
Illumination Warm white LED (CCT 2700K)
Aimer Red dot LED, 624nm peak wavelength
Operating Temperature 0°C to 50°C (23°F to 122°F)
Storage Temperature 40°C to 60°C (-40°F to 140°F)
Humidity 0% to 95% relative humidity, non-condensing
Tumble (Scanner) 1,000 0.5 m (1.6 ft) tumbles (impacts)
Drop (Scanner) Engineered to withstand 30 drops to concrete from 1.8 m (5.9 ft)
Vibration (Scanner) Withstands 5G peak from 5 to 300Hz
Environmental Sealing (Scanner) IP52
Product type POS / Scanning
Weight 2 kg
Warranty 12 months
