Honeywell

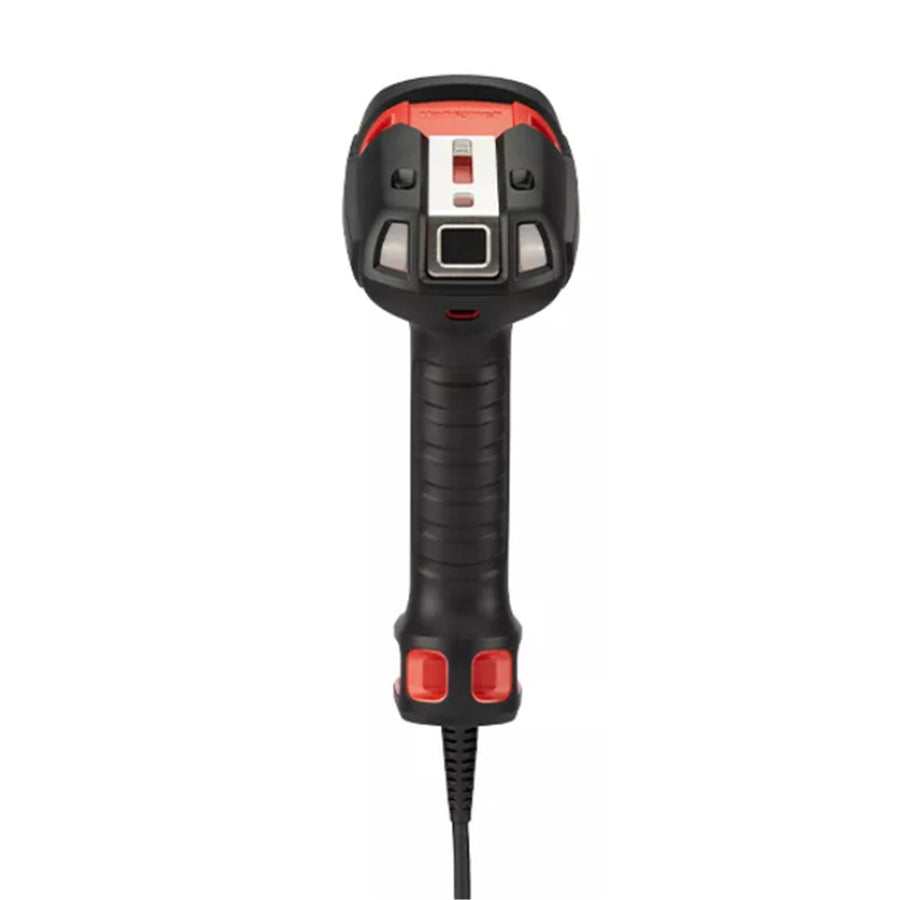

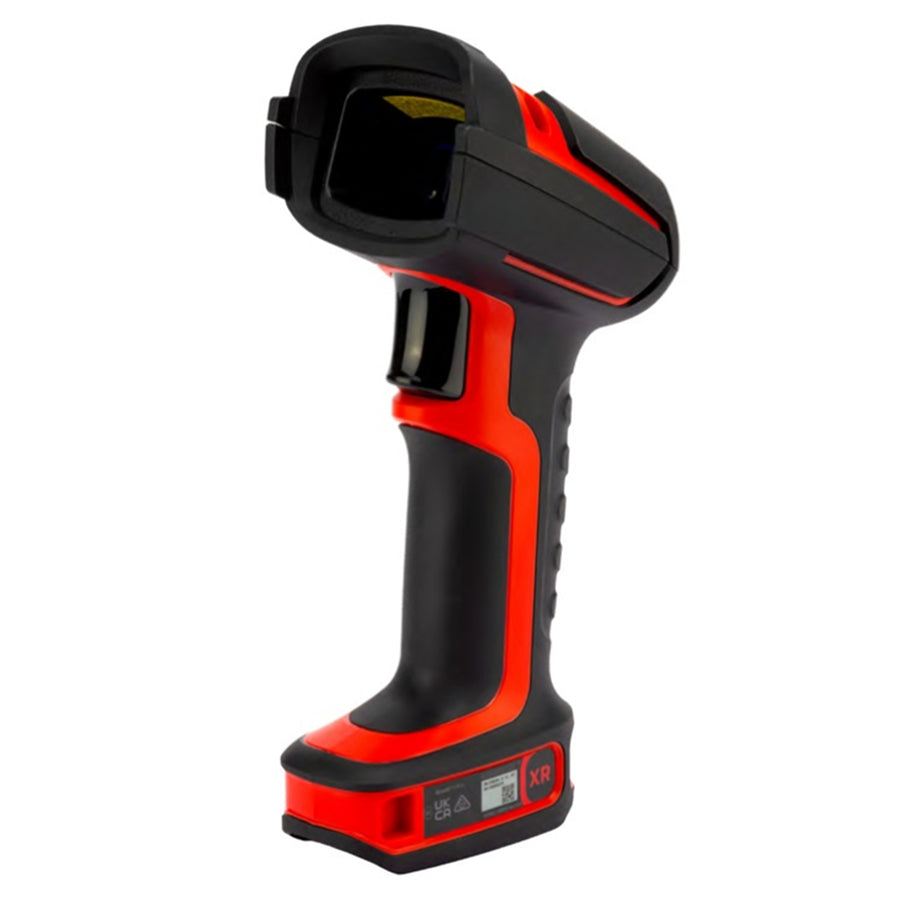

Honeywell 2100IXLR-3R GRANIT ULTRA 2100IXLR-3 RUGGED SCANNER ONLY, 1D/2D,VIBRATOR, RED SCANNER
$959.13
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
You May Also Like
Features
Honeywell 2100IXLR-3R GRANIT ULTRA 2100IXLR-3 RUGGED SCANNER ONLY, 1D/2D,VIBRATOR, RED SCANNER
Specifications
Technical Specifications
| Manufacturer part number | 2100IXLR-3R |
|---|---|
| Scan Pattern -XLR | Near and Far Area Imager (1920x800 pixel array) |
| Illumination-XR/XLR | Yellow-Green LED |
| Aimer-XR/XLR | Green class 2 laser, 520nm peak wavelength |
| Motion Tolerance | Up to 4000 mm/s |
| Scan Angle (Field of View) | XLR-Near: Horizontal: 45° , Vertical 19.6° XLR-Far: Horizontal 13.7° , Vertical 5.7° |
| Print Contrast | As low as 15% |
| Roll, Pitch, Skew | +/-360° , +/-65° , +/-65° |
| Minimum Barcode Resolution | 2.5 mil 1D, 5 mil 2D |
| Scanner dimensions (L x W x H) | 194.8mm × 75.8mm × 139.5mm (7.7 in × 3.0 in x 5.5 in) |
| Scanner Weight | 330g (11.64 oz) |
| User Indicators | Good decode LEDs, Beeper (adjustable tone and volume), Vibration (adjustable) |
| Input Voltage | 4.0 VDC to 5.5 VDC |
| Operating Power | 2.15W (430mA @ 5VDC) |
| Standby Power | 0.875W (175mA @ 5VDC) |
| Operating Temperature | 30°C to 50°C (-22°F to 122°F) |
| Storage Temperature | 40°C to 70°C (-40°F to 158°F) |
| Humidity | Up to 95% relative humidity, non-condensing |
| Drop | 3m (10 ft): MIL-STD-810G, 25°C (77°F), 55% relative humidity 2.5m (8.2 ft): 20 drops from -30°C to 50°C (-22°F to 122°F), 55% relative humidity 2m (6.5 ft): 50 drops from -30°C to |
| Tumble | 7,500 1m (3.3ft) tumbles |
| Vibration | Withstands 5G peak from 5 to 300Hz |
| Environmental Sealing | IP65 and IP68 |
| Product type | POS / Scanning |
| Weight | 2 kg |
| Warranty | 12 months |
| Brand | Honeywell |
|---|---|
| Product Type | POS / Scanning |
| Weight | 2.0 kg |
| Warranty |
|---|
