Honeywell 2105IXR-3-CLR
Honeywell 2105IXR-3-CLR
Honeywell

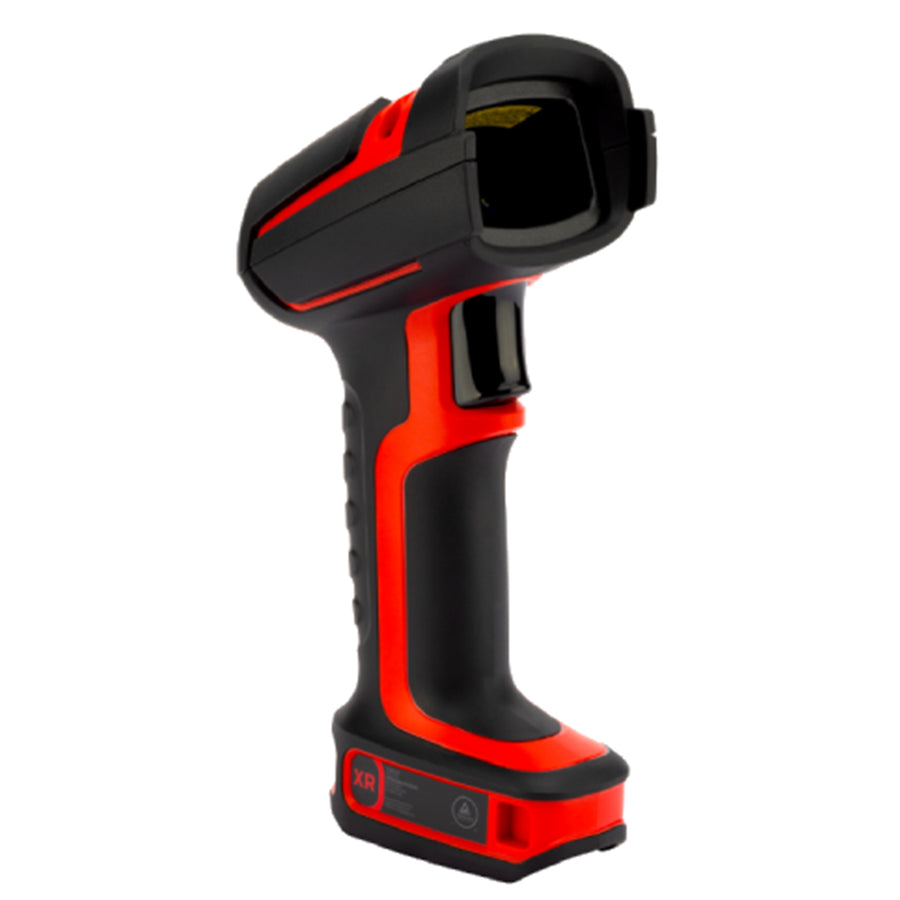

Honeywell 2105IXR-3-CLR GRANIT 2105I SCANNER, RUGGED, 1D/2D, FLEXRANGE, VIBRATOR, RED SCANNER. BLUETOOTH

SKU: 2105IXR-3-CLR ● In Stock
$1,352.17
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Zebra

Zebra DS2208-SR6U2100AZW DS2208-SR WHITE USB KIT: DS2208-SR00006ZZWW SCANNER CBA-U21-S07ZBR SHIELDEDUSB CABLE

$336.52
inc GST ▲ +GST
Zebra

Zebra DS2208-SR6U2100SGW DS2208-SR WHITE (WITH STAND) USB KIT: DS2208-SR00006ZZWW SCANNER CBA-U21-S07ZBR SHIELDED USB CABLE 20-71043-04R STAND

$164.35
inc GST ▲ +GST
Zebra

Zebra DS8178-PRES-POSUSB SCANNER KIT DS8178 BT 2D-SR PRES POS/USB BLK

$1,332.17
inc GST ▲ +GST
Zebra

Zebra CBA-RF5-S07ZAR CABLE DATA SCANNER RS232 2.8M -30C PWR PIN 9

$156.52
inc GST ▲ +GST
Zebra

Zebra CBA-U30-S15ZBR CABLE DATA SCANNER USB-SHIELDED 4.6M STR

$83.48
inc GST ▲ +GST

Features

Honeywell 2105IXR-3-CLR GRANIT 2105I SCANNER, RUGGED, 1D/2D, FLEXRANGE, VIBRATOR, RED SCANNER.

Specifications

Technical Specifications

Manufacturer part number 2105IXR-3-CLR
Scan Pattern -XR Near and Far: Area imager (1280x1080 pixel array)
Illumination-XR/XLR Yellow-Green LED
Aimer-XR/XLR Green class 2 laser, 520nm peak wavelength
Motion Tolerance Up to 4000 mm/s
Scan Angle (Field of View) XR-Near: Horizontal: 42°, Vertical 36° XR-Far: Horizontal: 16°, Vertical 14°
Print Contrast As low as 15%
Roll, Pitch, Skew +/-360°, +/-65°, +/-65°
Minimum Barcode Resolution 2.5 mil 1D, 5 mil 2D
Image Capture Up to 109PPI on an A4 document
Input Voltage 4.4VDC to 5.5 VDC
Operating Power (Charging) 2.5W (500mA @ 5V USB 2.0) 7.5W (1500mA @ 5V BC1.2 or external power supply)
Standby Power 0.6W (120mA @ 5VDC)
Host System Interfaces USB, Keyboard Wedge, RS-232 TTL (cables available to convert for +/-12V True use)
Charging time USB 2.0: <12 hours USB BC1.2: <4 hours Power supply (5V 3A): <4 hours
Battery 3300 mAh Li-ion
Number of scans Up to 100,000 scans per charge
Expected duration of operation 14 hours operating at 2 scans per second
Scanner dimensions (L x W x H) 194.8mm × 75.8mm × 139.5mm (7.7 in × 3.0 in x 5.5 in)
Charge and Communication Base dimensions 250.1mm x 102mm x 80.7mm (9.8 in x 4.0 in x 3.2 in)
Weight-Scanner 425g (15 oz)
Weight-Charge and Communication Base 357g (12.6 oz)
User Indicators Good decode LEDs, Battery Status LED, Bluetooth Connection Status LED, Beeper (adjustable tone and volume), Vibration (adjustable)
Operating Temperature (non-charging) 20°C to 50°C (-4°F to 122°F)
Storage Temperature 40°C to 70°C (-40°F to 158°F)
Charging Temperature 5°C to 35°C (41°F to 95°F)
Humidity Up to 95% relative humidity, non-condensing
Drop 3m (10 ft): MIL-STD-810G, 25°C (77°F), 55% relative humidity 2.5m (8.2 ft): 20 drops from -20°C to 50°C (4°F to 122°F), 55% relative humidity 2m (6.5 ft): 50 drops from -30°C to 50
Tumble 7,500 1m (3.3ft) tumbles
Vibration Withstands 5G peak from 5 to 300Hz
Trigger activations Tested to 3 million cycles
Environmental Sealing Scanner: IP65 and IP68 Charge and Communication Base: IP65
Light Levels 0 to 100,000 lux (9,290 foot-candles)
ESD +/-20KV air discharge, +/-8kV contact discharge, +/-8kV indirect coupling plane
Product type POS / Scanning
Weight 2 kg
Warranty 12 months
