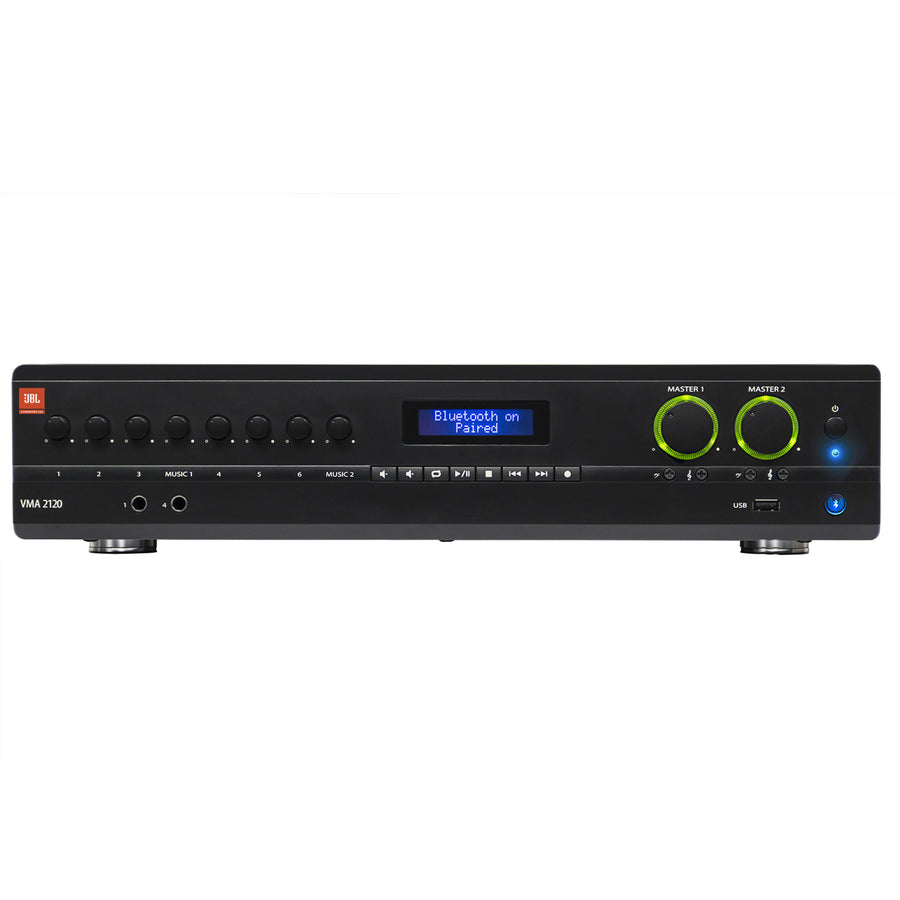

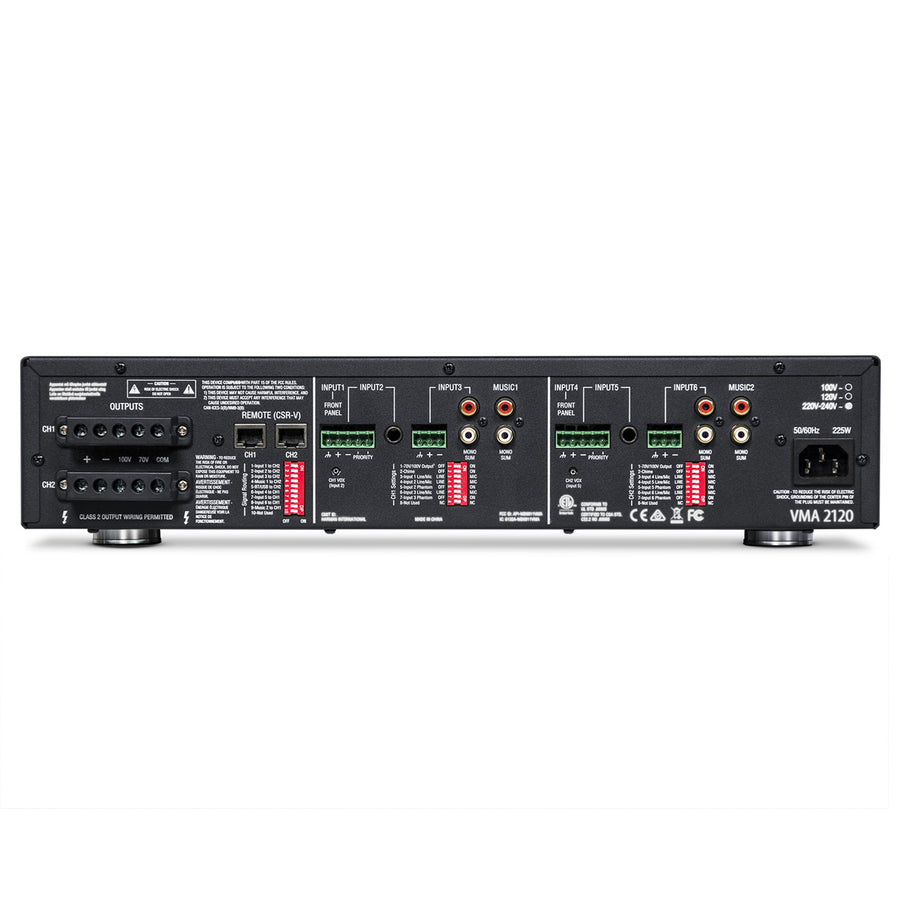

JBL PRO VMA2120 8IN/2OUT 120W BLUETOOTH MIXER/AMPLIFIER

SKU: VMA2120 ● In Stock
$2,062.61
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

JBL PRO VMA2120 8IN/2OUT 120W BLUETOOTH MIXER/AMPLIFIER

Specifications

Technical Specifications

Manufacturer part number VMA2120
Max Output Power per Channel Into 4 O or 8 O; 1kHz, = 0.5% THD - VMA260: 60W VMA2120: 120W
Insertion Loss (70V & 100V outputs) 1dB maximum
Number of Inputs 8
Number of Outputs 2
Tone Controls (Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input Sensitivity (To obtain full rated power into 8 O load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response (Measured at 2.83VRMS into rated load impedance at any output) 4/8 O Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
Total Harmonic Distortion (THD) (Measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
Signal to Noise Ratio (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
Input Impedance (Nominal) Mic: 400 O Line: 20 kO (balanced) RCA: 50 kO
Phantom Power 27VDC
Crosstalk (reference rated power, volume at mid position, 1kHz) -70 dB
Nominal AC Line Voltages 100V, 120V, 220V, 220-240V, 50/60 Hz
Minimum Load Impedance (Low Impedance Output, 70V Output, 100V Output) VMA260: 4 O, 80 O,160 O VMA2120: 4 O, 40 O, 80 O
Operating Temperature/Humidity 0°C to 35°C @ 95% R.H. (non-condensing)
Storage Temperature 20°C to 85°C
Net Weight VMA260: 25.5 lb (11.6 kg) VMA2120: 29.3 lb (13.3 kg)
Dimensions Width: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
Product type Pro Audio
Weight 15.7 kg
Warranty 12 months
