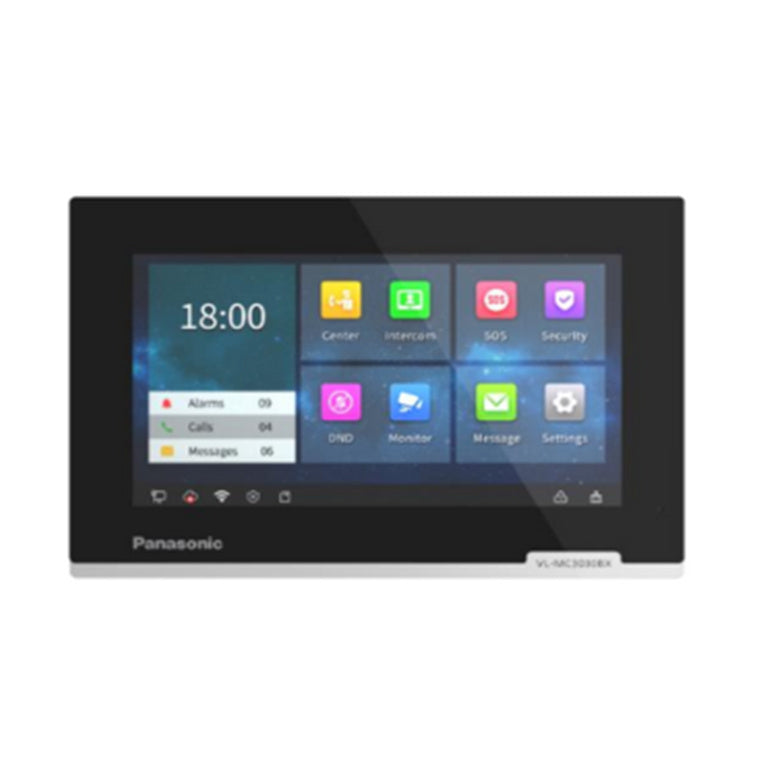

Panasonic VL-MC3030BX IP VIDEO INTERCOM COMMERCIAL MONITOR BLACK

SKU: VL-MC3030BX ● In Stock
$331.30
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Panasonic VL-MC3030BX IP VIDEO INTERCOM COMMERCIAL MONITOR BLACK

Specifications

Technical Specifications

Operation system Linux
Flash 128MB
RAM 64MB
Storage (MicroSD Card) 32GB (Included)
Size 7-inch wide colour display
Operation Method Capacitive touch screen
Display Resolution 1024 x 600
Video Codec H.264 & H.265
Video Resolution VGA, 720P
Audio Compression G.711
Speaker 8Ω / 0.5W
Microphone -56 ± 2dB
Wi-Fi Supported (WLAN 2.4GHz)
Wiring UTP (Cat 5e or higher)
Protocol IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP
Network Interface RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)
Power Out Port 12V, 200mA max (Output for alarm zone devices)
Alarm Input 8
Doorbell Port 1
Linked IP Camera 6 (Private IPC) + 12 (Public IPC)
Text Messages 100
Voice Messages 10
Intercom Logs 100
Alarm Logs 100
Recording 100 *With MircoSD card (video with audio)
Power Source PoE (IEEE 802.3af compliant, Class 0 device) or Power supply unit (Sold separately)
Operating Voltage PoE 48V or 12 to 27VDC
Current Rating POE 48V, 160mA or DC 12V, 630mA; or DC 27V, 280mA
Power Consumption Standby: 2.7W; Operating: 3.8W (excluding power out)
Installation Method Surface mount with magnet
Colour Black
Dimensions (H x W x D) (Excluding protru Approx. 130mm x 194mm x 15.9mm
Operating Temperature -25°C to +50°C
Storage Temperature -40°C to +70°C
Operating Humidity Up to 90% (non-condensing)
IP rating (Ingress Protection) IP30
IK rating (Impact Protection) -
Talking Method Hands-free
Display Language English, Chinese, Vietnamese, Indonesian and Thai
Casing Material PMMA + ABS
Weight Without package: 330g; With package: 510g
Warranty 12 months
