Panasonic VL-VC3931BX
Panasonic VL-VC3931BX
Panasonic

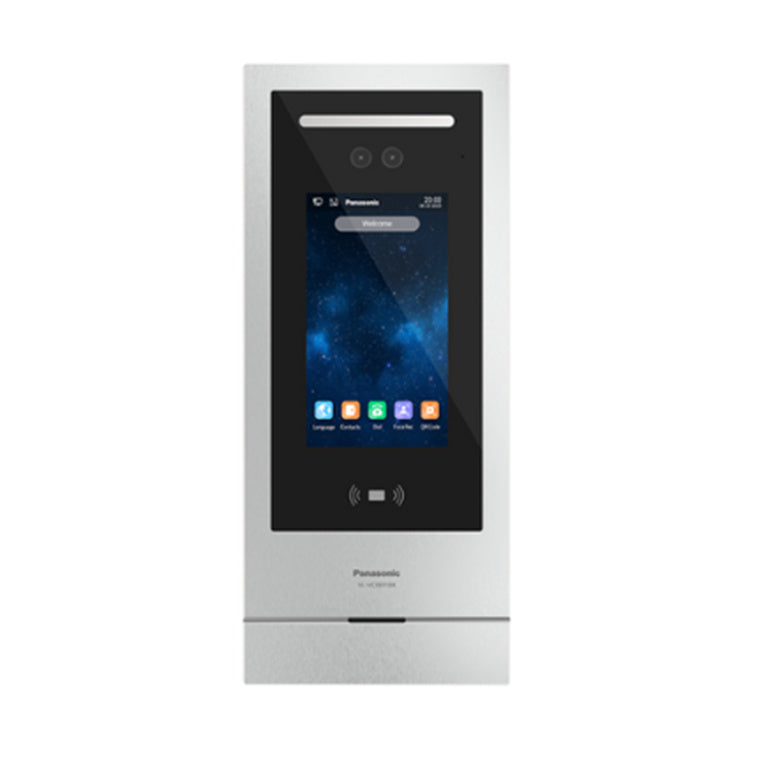

Panasonic VL-VC3931BX IP Video Intercom Lobby Station - Flush mount Std POE

SKU: VL-VC3931BX ● In Stock
$1,566.09
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Panasonic VL-VC3931BX IP Video Intercom Lobby Station - Flush mount Std POE

Specifications

Technical Specifications

Operation system Linux
Flash 8GB
RAM 1GB
Size 7-inch wide colour display
Operation Method Capacitive Touch Screen
Resolution 600 x 1024
Video Compression H.264
Video Pixel VGA, 720P
Camera Pixel 2.0M pixels CMOS sensor 1/2.9-inch 3.5mm EFL
Minimum Illuminance Required 0.01lx (within approx. 50cm from the camera lens)
Camera Quantity 1 Colour Camera + 1 IR Camera
HDR Supported
Viewing Angle 82.6°(H) / 44.6(V)
Lighting Method White coloured LED lights
Audio Compression G.711
Speaker 8Ω / 0.5W
Microphone -56±2dB
Face Capacity 20K
Card Capacity 50K
Frequency 13.56MHz (ISO/IEC 14443 Type A (MIFARE))
Wiring UTP (Cat 5e or higher)
Protocol IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP
Network Interface RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)
Power Out Port -
RS485 Reserved
Relay Output 1
Fire Detect Port 1
Lock Release 1
Door Status Port 1
Wiegand Port 1
Power Source POE Splitter or Power supply unit (Sold separately)
Operating Voltage 12 to 27VDC
Current Rating DC 12V, 750mA; DC 27V, 375mA
Power Consumption Standby: 3.5W, Operating: 7.5W
Installation Method Flush mount
Colour Silver
Dimensions (H x W x D) (Excluding protru Approx. 378mm x 162mm x 35.5mm
Operating Temperature -30°C to +60°C
Storage Temperature -40°C to +70°C
Operating Humidity Up to 90% (non-condensing)
IP rating (Ingress Protection) IP65
IK rating (Impact Protection) IK07
Talking Method Hands-free
Display Language English, Chinese, Vietnamese, Indonesian and Thai
Motion Detect Supported
External Material AL + ABS + Tempered glass
Weight Without package: 1750g With package: 3490g
Warranty 12 months
