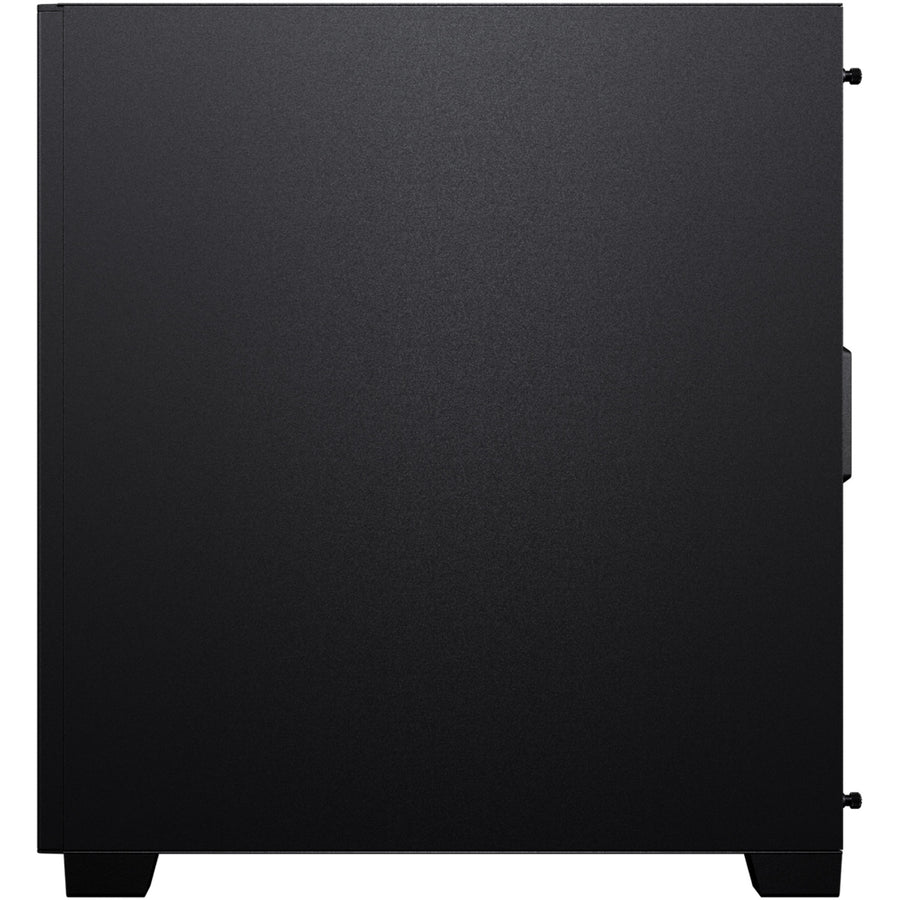

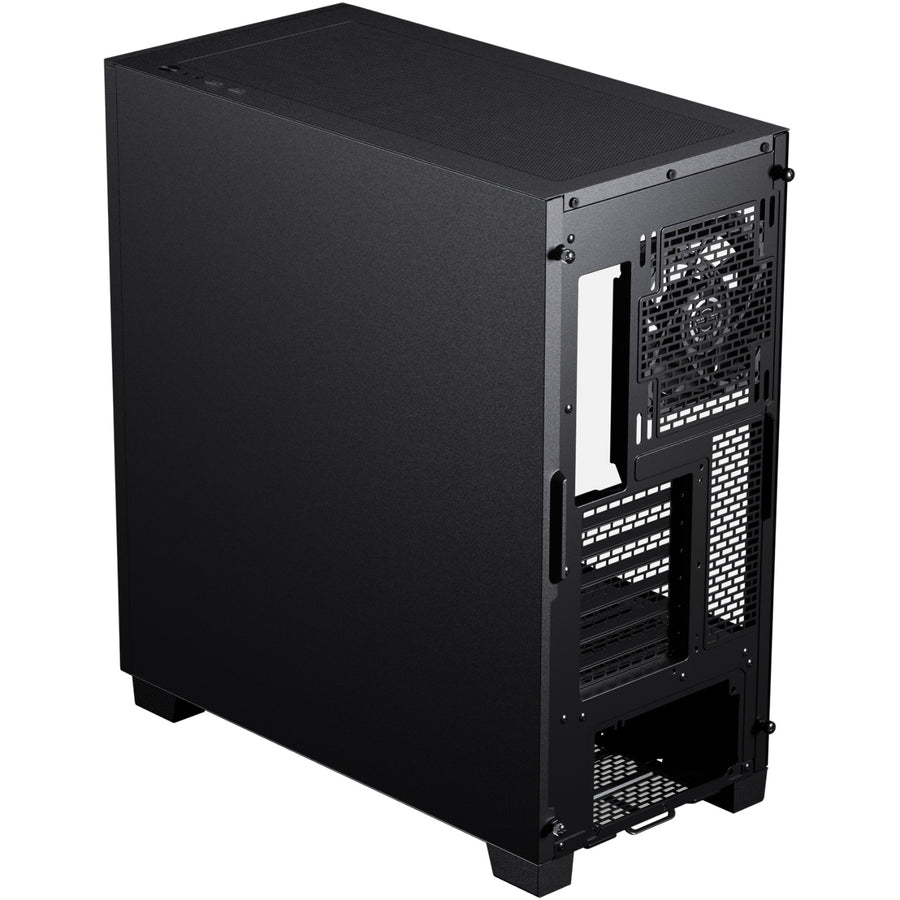

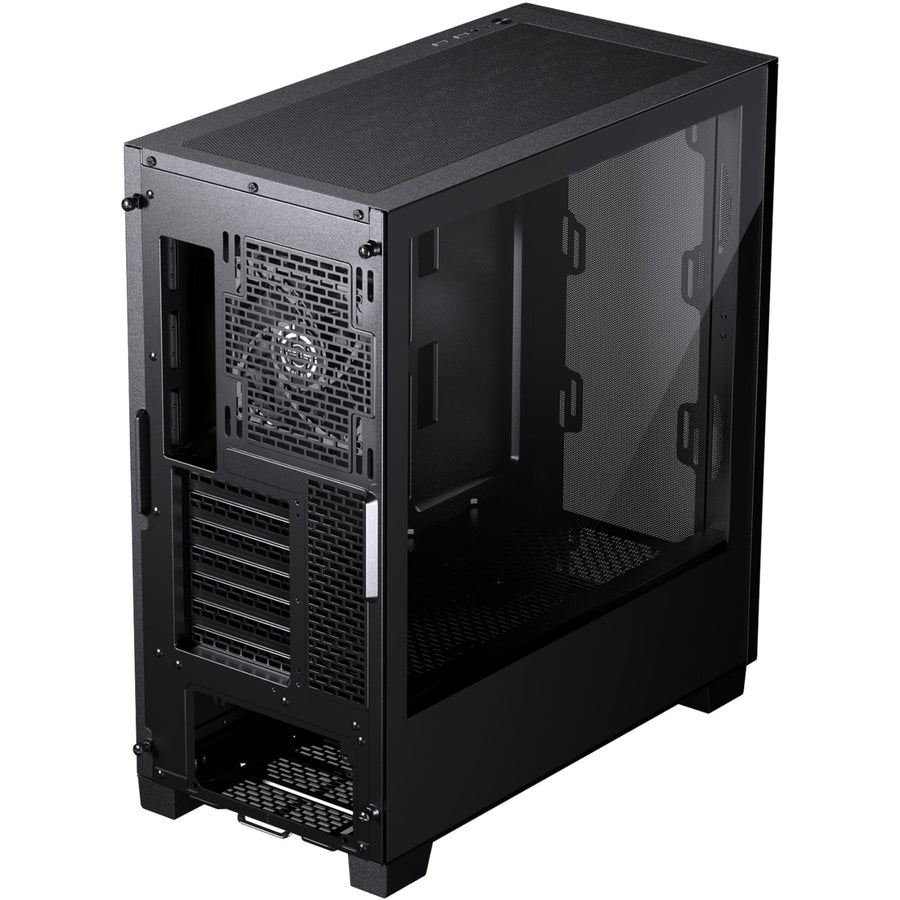

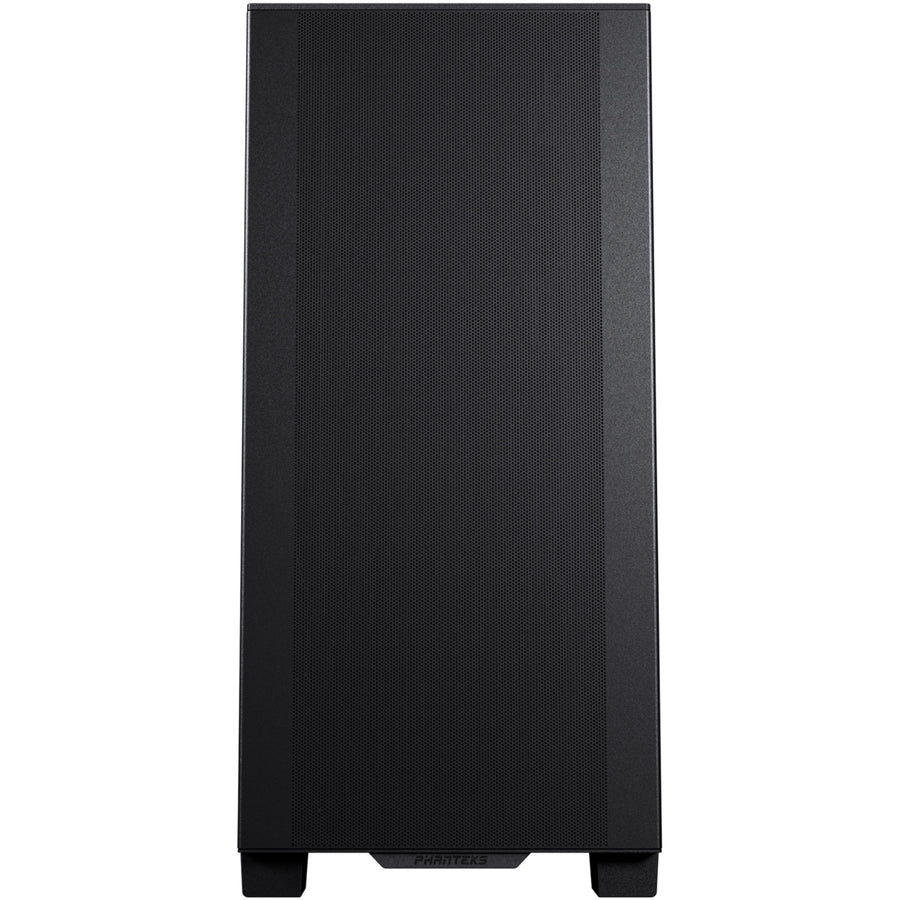

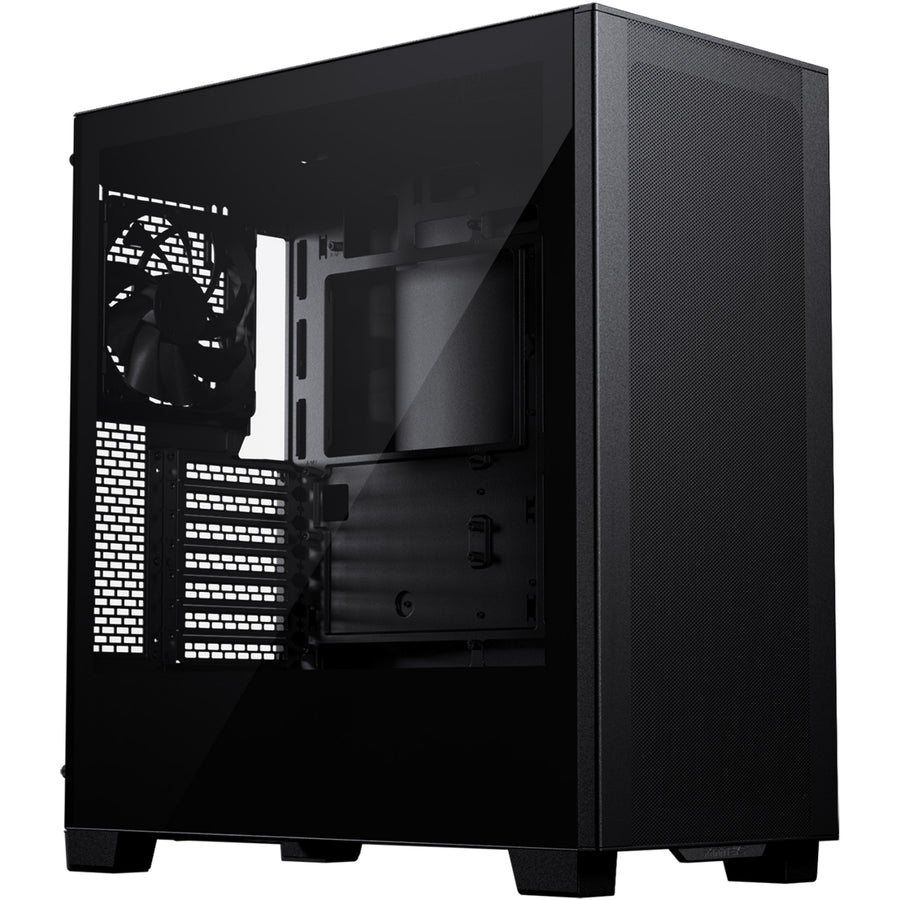

Phanteks XT PRO Tempered Glass ATX Case
You May Also Like
Corsair FRAME 4000D Wood RS Modular Tempered Glass ATX Mid Tower Gaming Case - White & Oak
Phanteks XT VIEW With LED Matrix Tempered Glass ATX Case - Grey White
Features
XT-Series, delivering extreme value
With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers with extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10 fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.
The XT-Series further innovates to bring support for the lastest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the midplate that provides direct cooling.
- Support for the latest rear-side connector mainboards
- Ultra-fine Performance mesh front panel and top dust filter
- Support up to 10x 120mm or 6x 140mm and 3x 120mm fan positions
- Dedicated 360 radiator support in the top without restrictions
- Support for the largest graphics cards without compromise
Cool and powerful
- Dedicated top 360 radiator space at the top
- Triple 120mm positions on the midplay for direct GPU cooling
- A total of 10 x 120mm or 6 x 140mm + 3 x 120mm fan locations
Build for the future
- Unlock the Zero-Cable Setup - Mainboards with hidden connectors on the rear-side are fully supported by the XT Pro chassis.
- Support for MSI Project Zero mainboards
- Support for ASUS BTF mainboards
Packed with value
- Unbeatable value with a read mounted 120mm fan
- Integrated USB-C for charging and data transfer
Fan & Radiator support
Storage options
Specifications
Technical Specifications
| Product Dimensions (D x W x H) | 450 x 230 x 500 mm |
|---|---|
| Form Factor | Mid tower |
| Mainboard Support | ATXMicro-ATXMini-ITXE-ATX (280mm without GPU support bracket)Rear-Sided Mainboard Support - Supports MSI Project Zero mainboards and ASUS BTF mainboards |
| Materials | Steel Chassis (Tempered Glass) |
| Front IO | 1 x USB-C 3.01 x USB 3.0Microphone/Headphone ComboReset ButtonPower Button |
| Connectors | Power SwitchReset SwitchHD-AudioUSB 3.0 |
| Net Weight | 7.55 kg |
| Gross Weight | 9.45 kg |
| PCI Slots | 7 |
| Internal 3.5" Bay | 2 x Included (2 x 3.5") |
| Internal 2.5" Bay | 2 x Included (2 x 2.5" + 1 x 3.5") |
| Vertical GPU Support | Yes, with PH-VGPUKT4.0_03R (Sold separately) |
| Top Fan | 3 x 120mm / 2 x 140mm |
| Front Fan | 3 x 120mm / 3 x 140mm |
| Rear Fan | 1 x 120mm / 1 x 140mm |
| Midplate Fan | 3 x 120mm |
| Top Radiator | Up to 360mm |
| Front Radiator | Up to 240mm |
| Rear Radiator | Up to 120mm |
| GPU Length | 415mm |
| GPU Width | 184mm |
| CPU Cooler Height | 184mm |
| Power Supply | 270mm |
| Top 360 Radiator | 415 x 138 x 60mm |
| Rear 120 Radiator | 132 x 170mm |
| Package | 1 x XT Pro Chassis1 x Storage Bracket1 x M25-120 mm Black Fan |
| Accessory Box | 30 x Ziptie |
| Screws | 30 x SSD + Mainboard Screws4 x Power Supply Screws8 x HDD Screws12 x 30 mm Fan Screws1 x Mainboard Stand-off1 x Stand-off Removal Tool |
| Brand | Phanteks |
|---|---|
| Product Type | PC Parts > PC Cases > ATX Case |
| Warranty |
|---|
