Teltonika

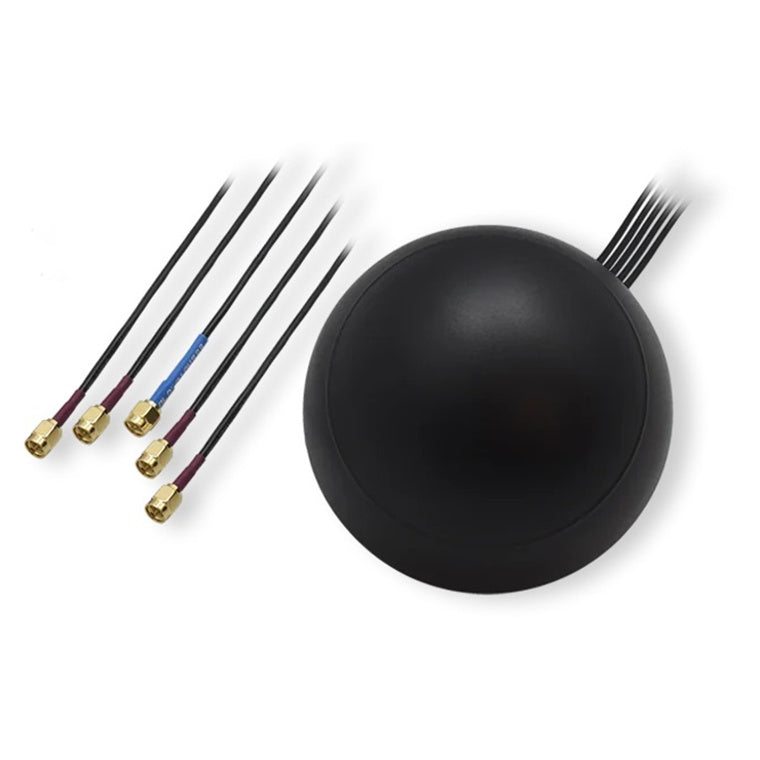

Teltonika Combo MIMO Mobile/GNSS/WIFI Roof SMA ANTENNA
$120.86
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
You May Also Like
MikroTik
RBwAPG-60adkit - MikroTik Wireless Wire 1Gbps 60GHz Wireless Bridge Kit
Network AccessoryWirelessPoE
$445.21$489.77
inc GST ▲
+GST
MikroTik
RBLHGG-60adkitr2 - MikroTik Wireless Wire Dish Preconfigured 60GHz Pair
Network AccessoryWireless
$545.21
inc GST ▲
+GST
Cambium Networks
Cambium Networks C050910C801A - Cambium ePMP 5 GHz Force 300-25 High Gain Radio
Network Accessory
$359.12
inc GST ▲
+GST
Features
Teltonika Combo MIMO Mobile/GNSS/WIFI Roof SMA Antenna
Specifications
Technical Specifications
| Manufacturer Product Code | PR1KCO28 |
|---|---|
| GNSS Antenna Frequency Range | 1575.42-1610 MHz |
| GNSS Antenna Polarization | RHCP |
| GNSS Antenna Impedance | 50 Ohm |
| GNSS Antenna LNA Gain | 28±2 dB |
| GNSS Antenna LNA Noise Figure | < 1.5 dB |
| GNSS Antenna Supply Voltage | 3-5 VDC |
| GNSS Antenna Current Consumption | < 15 mA |
| GNSS Antenna LNA V.S.W.R | <2.0 |
| GNSS Antenna Connector | SMA Male |
| LTE MIMO Antenna Frequency Range | 698-960/1710-2690 MHz |
| LTE MIMO Antenna Polarization | Linear |
| LTE MIMO Antenna Gain | 3 dBi |
| LTE MIMO Antenna V.S.W.R | < 3.0 |
| LTE MIMO Antenna Impedance | 50 Ohm |
| LTE MIMO Antenna Connector | 2x SMA Male |
| WiFi MIMO Antenna Frequency Range | 2400-2483.5/4900-5825 MHz |
| WiFi MIMO Antenna Polarization | Linear |
| WiFi MIMO Antenna Gain | 2 dBi |
| WiFi MIMO Antenna V.S.W.R | <2.5 |
| WiFi MIMO Antenna Impedance | 50 Ohm |
| WiFi MIMO Antenna Connector | 2x RP SMA Male |
| Mounting Method | Screw |
| Radome Ingress Protection rating | IP67 |
| Radome Material | ABS |
| Weight | <550g |
| Housing Dimensions | 110x55 mm |
| Cable | 5x RG174, 3000 mm |
| RoHS Compliant | Yes |
| Brand | Teltonika |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 0.59 kg |
| Warranty |
|---|
