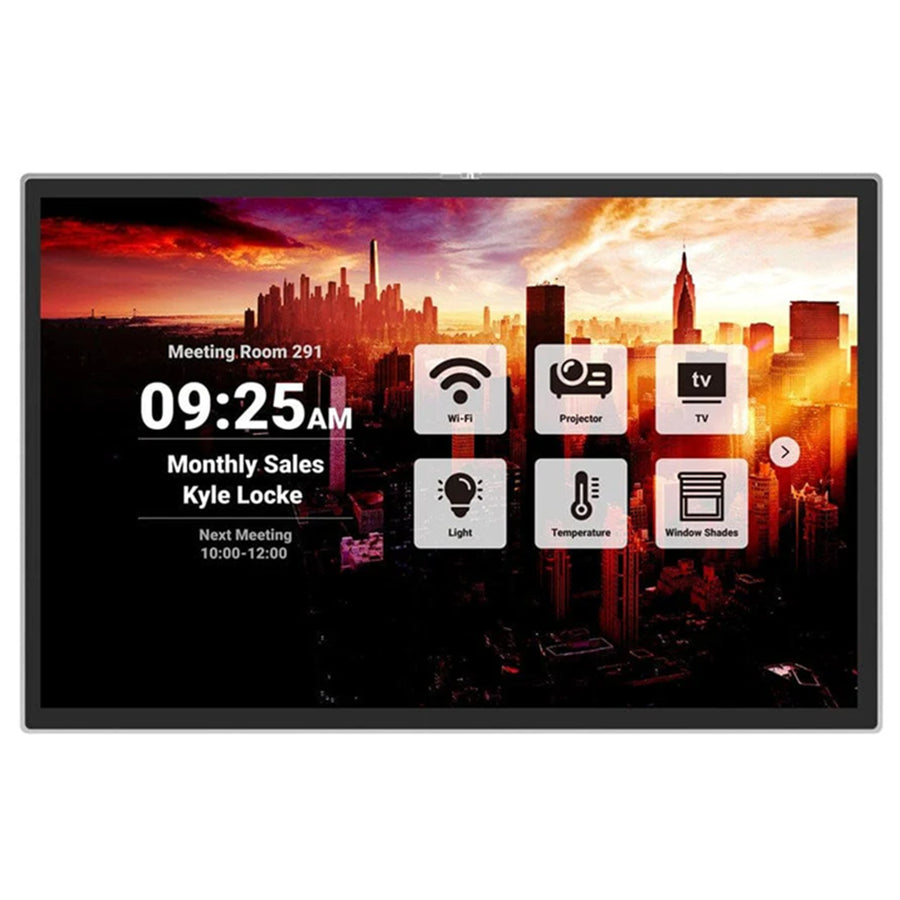

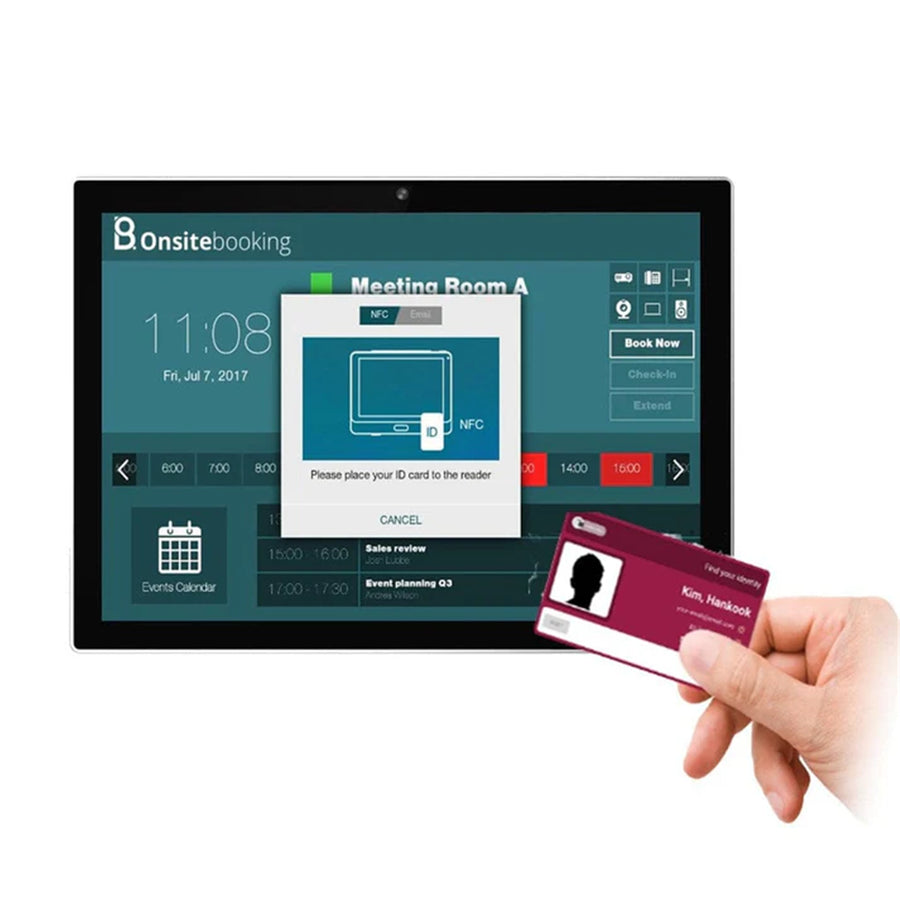

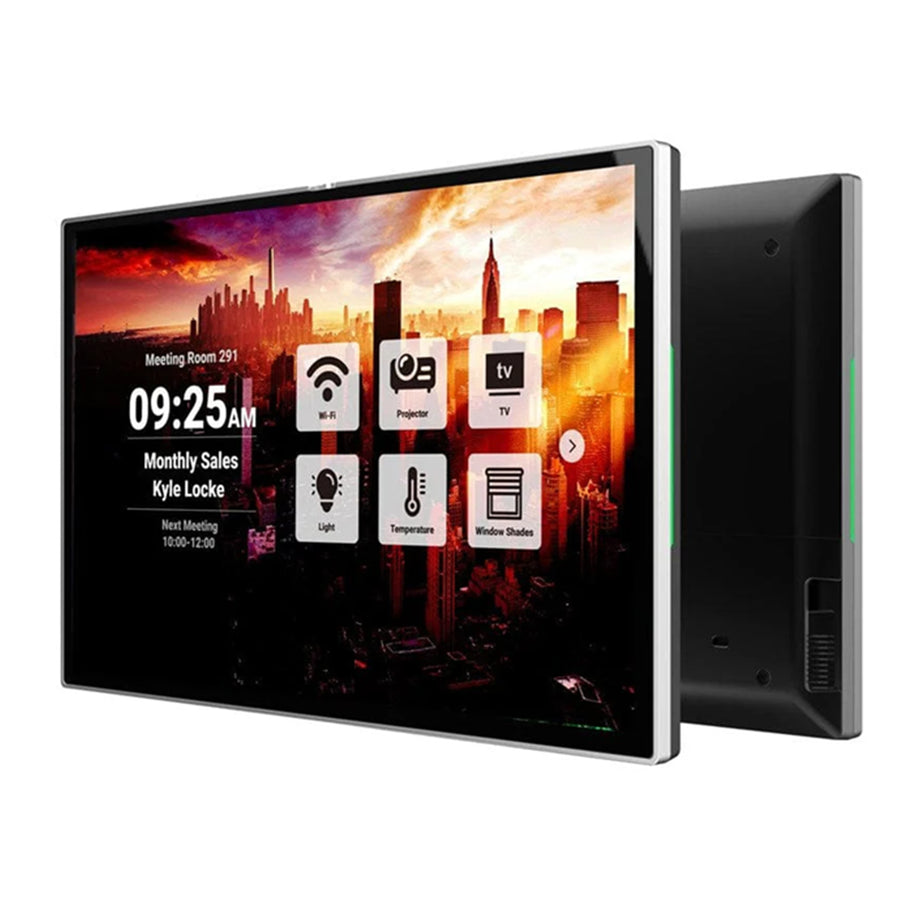

Qbic HC-1570M-PW Luminen Pro 15" - PoE Room Booking Display with LED Status Lights
$2,234.78
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Qbic HC-1570M-PW Luminen Pro 15" - PoE Room Booking Display with LED Status Lights
Specifications
Technical Specifications
| Model | Luminen Pro 15 |
|---|---|
| System | CPU Processor |
| MediaTek Genio 510, ARM 6nm Hexa-core Pr | Memory |
| LPDDR4, 4GB | Storage |
| 32GB eMMC (16GB eMMC optional) | OS |
| Android 15 or Linux Yocto | Ethernet |
| 10/100/1000M | WLAN Connectivity |
| Wi-Fi 6, 802.11 a/b/g/n/ac/ax @ BT 5.2 | PoE |
| Display | Panel Size |
| 15.6" (IPS) | Panel Orientation |
| Landscape | Resolution |
| 1920*1080 | Brightness (minimal) |
| >350 cd/m2 (with touch) | Contrast Ratio |
| 800:1 | Touch |
| Multi-touch (PCAP), up to 10 points | Proximity Sensor |
| ALS +Prox. | LED Bar |
| 2 (Left/Right) | Speaker |
| built-in, 2x 1.5W | Microphone |
| built-in, 2 | Camera |
| 1x 13MP, FF, 4K/15 fps (Optional) | NFC |
| I/O InterfaceUSB Port | 1x USB Type C (OTG/ADB) ; 1x USB Type A (2.0) |
| Ethernet | 1x RJ45 connector with PoE 802.3at |
| Button (position)1. Function Button (Top | KNX |
| KNX bus connection block (Red/Black), Ce | RS485 |
| X1 (Optional) | CAN FD |
| NA | DC Jack |
| 1x DC Jack | Power Requirement |
| Environment | Operating Temp.& Humidity |
| 0~40 degrees, 5% to 85% | Storage Temp.& Humidity |
| -20~60 degrees, 5% to 90% Model | Luminen Pro 15 |
| CPU Processor | MediaTek Genio 510, ARM 6nm Hexa-core Processor-2*A78/4*A55. |
| Memory | LPDDR4, 4GB |
| Storage | 32GB eMMC (16GB eMMC optional) |
| OS | Android 15 or Linux Yocto |
| Ethernet | 10/100/1000M |
| WLAN Connectivity | Wi-Fi 6, 802.11 a/b/g/n/ac/ax @ BT 5.2 |
| PoE | PoE 802.3at |
| Panel Size | 15.6" (IPS) |
| Panel Orientation | Landscape |
| Resolution | 1920*1080 |
| Brightness (minimal) | >350 cd/m2 (with touch) |
| Contrast Ratio | 800:1 |
| Touch | Multi-touch (PCAP), up to 10 points |
| Proximity Sensor | ALS +Prox. |
| LED Bar | 2 (Left/Right) |
| Speaker | built-in, 2x 1.5W |
| Microphone | built-in, 2 |
| Camera | 1x 13MP, FF, 4K/15 fps (Optional) |
| NFC | NFC peer to peer mode (13.56MHz) |
| USB Port | 1x USB Type C (OTG/ADB) ; 1x USB Type A (2.0) |
| Ethernet | 1x RJ45 connector with PoE 802.3at |
| Button (position) | 1. Function Button (Top, flush button)2. Rescue Button (Top, recessed button) 3. Reset Button (Back, recessed button) |
| KNX | KNX bus connection block (Red/Black), Certified KNX Stack (System B) (Optional) |
| RS485 | X1 (Optional) |
| CAN FD | NA |
| DC Jack | 1x DC Jack |
| Power Requirement | 1x PoE 802.3at 1x DC-in, 12V/3A |
| Operating Temp.& Humidity | 0~40 degrees, 5% to 85% |
| Storage Temp.& Humidity | -20~60 degrees, 5% to 90% |
| Dimension | 373.5mm *243.1mm *26.2 mm |
| Mounting Type | Wall Mount/Glass mount tabletop |
| Lock Type | Kensington lock |
| Accessory | Mounting bracket, Metal stand |
| Warranty | 12 months |
| Brand | Qbic |
|---|---|
| Product Type | Video Conferencing |
| Weight | 1.0 kg |
| Warranty |
|---|
