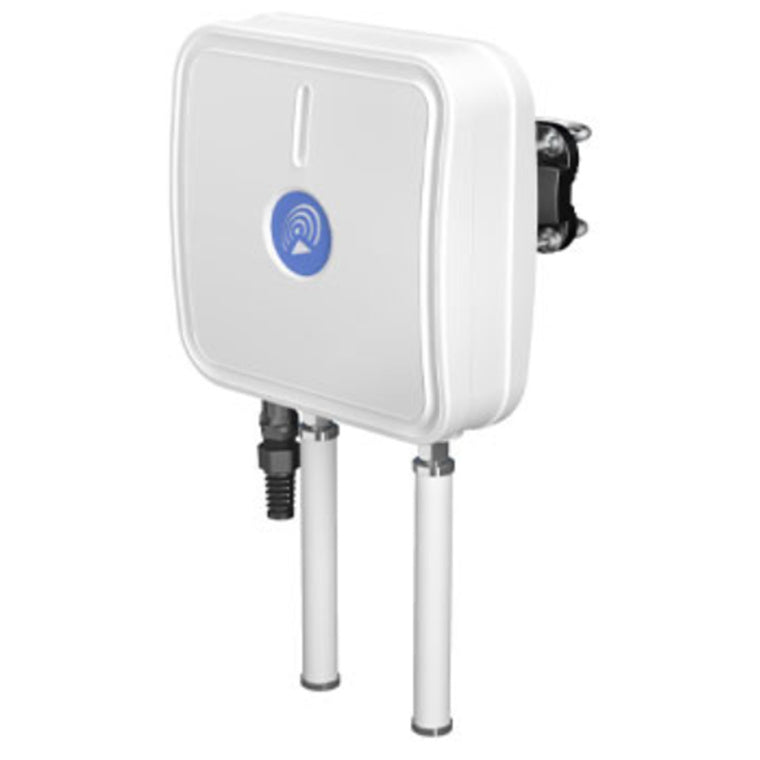

Teltonika QuMax Outdoor High Power Directional LTE Antenna, Omni WiFi Antenna & GPS Antenna for RUT950/RUT955
You May Also Like
RBwAPG-60adkit - MikroTik Wireless Wire 1Gbps 60GHz Wireless Bridge Kit
RBLHGG-60adkitr2 - MikroTik Wireless Wire Dish Preconfigured 60GHz Pair
Cambium Networks C050910C801A - Cambium ePMP 5 GHz Force 300-25 High Gain Radio
Features
QuMax LTE, WiFi & GPS Antenna for RUT955/RUT950.
Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + GPS antenna + place to install Teltonika RUT955/RUT950 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have the Teltonika RUT955 or RUT950 router installed inside a IP67 enclosure. It is the first choice for fixed installations in an industrial environment. It also has an embedded GPS antenna and outdoor Wi-Fi omni antennas.
- IP67 Outdoor antenna
- Passive PoE Support
- Made to fit mount
- Easy to Install
- Easy Integration with Teltonika RUT955/RUT950
Specifications
Technical Specifications
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360 |
|---|---|
| Frequency Gain | 0.694-0.96 GHz: 4dBi, 1.7 - 2.2 GHz: 5dBi, 2.2 - 2.7 GHz: 6dBi |
| Beamwidth | 90°/90° +/- 30° |
| Polarization | Vertical |
| Impedance | 50 O |
| WiFi Frequencies | 2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi) |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress Protection | IP67 |
| Dimensions | 272 x 276 x 96 mm |
| Weight | 1.8 kg |
| Operating Temperature | From -40°C to 75°C |
| Brand | Teltonika |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 2.75 kg |
| Warranty |
|---|
