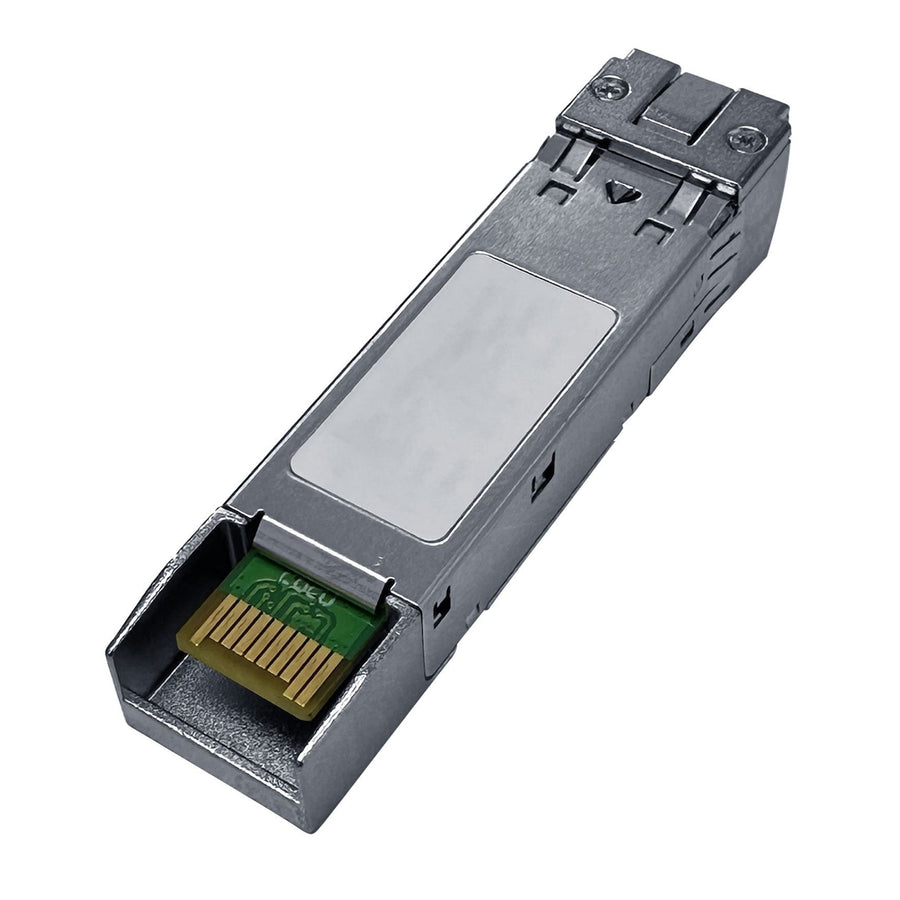

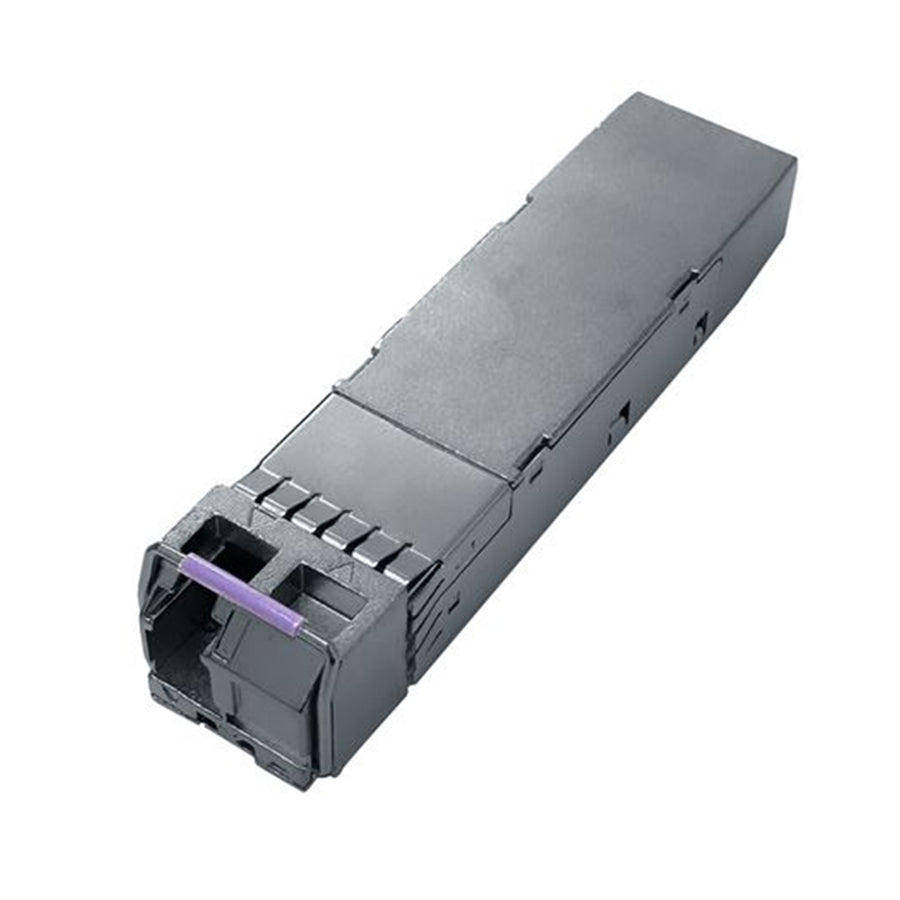

Smartoptics SOSFP1G-BX20D53
Smartoptics SOSFP1G-BX20D53
Smartoptics SOSFP1G-BX20D53
Smartoptics

Smartoptics 1.25G SFP BiDi LC Simplex Transceiver Module for SingleMode Fibre. Dual Wave length TX/RX 1550/1310nm, DDM, 20km, 14dB Industrial Temp -40C to 85C

SKU: SOSFP1G-BX20D53 ● In Stock
$108.70
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Smartoptics 1.25G SFP BiDi LC Simplex Transceiver Module for SingleMode Fibre. Dual Wave length TX/RX 1550/1310nm, DDM, 20km, 14dB Industrial Temp -40C to 85C

Specifications

Technical Specifications

Manufacturer part number SOSFP1G-BX20D53
Technology BiDi SFP
Transmission media SM (1x LC)
Typical reach 20km
Nominal wavelength Tx/Rx 1310nm/1550nm & 1550nm/1310nm
Bit rate support 1.063Gbps / 1.25Gbps
Protocol support GbE 1G FC
Power budget 0 - 14dB
Power consumption < 1.0W
Transmitter data Output power Min: -8.0dBm(average power) Max: -3.0dBm (average power)
Typical reach 20km
Transmit wavelength 1520 - 1580nm
Receiver data Minimum input power: -22.0dBm(average power) Overload (max power): -3.0dBm (average power)
Power budget 0 - 14dB
Wavelength range 1260 - 1360nm
LOS Assert Min -35dBm
LOS De-assert Max -23dBm
LOS Hysteresis Min 0.5dB
DDM Yes
MSA compliance SFF-8431, -8432, -8472
Operating temperature 0°C to +70°C -40°C to +85°C (-I)
Storage temperature 40°C to +85°C
Product type Network Accessories
Weight 0.5 kg
Warranty 12 months
