StarTech.com

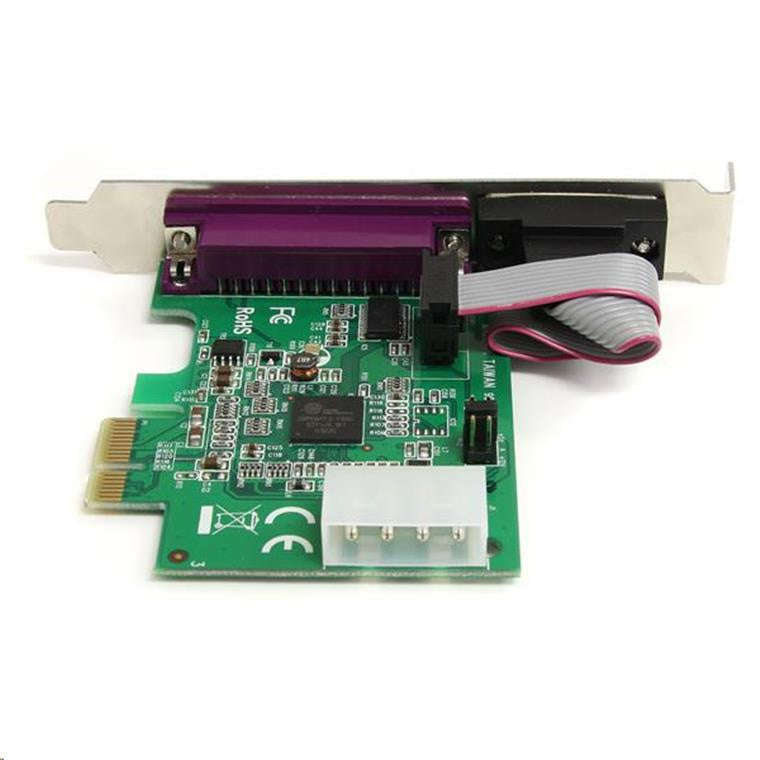

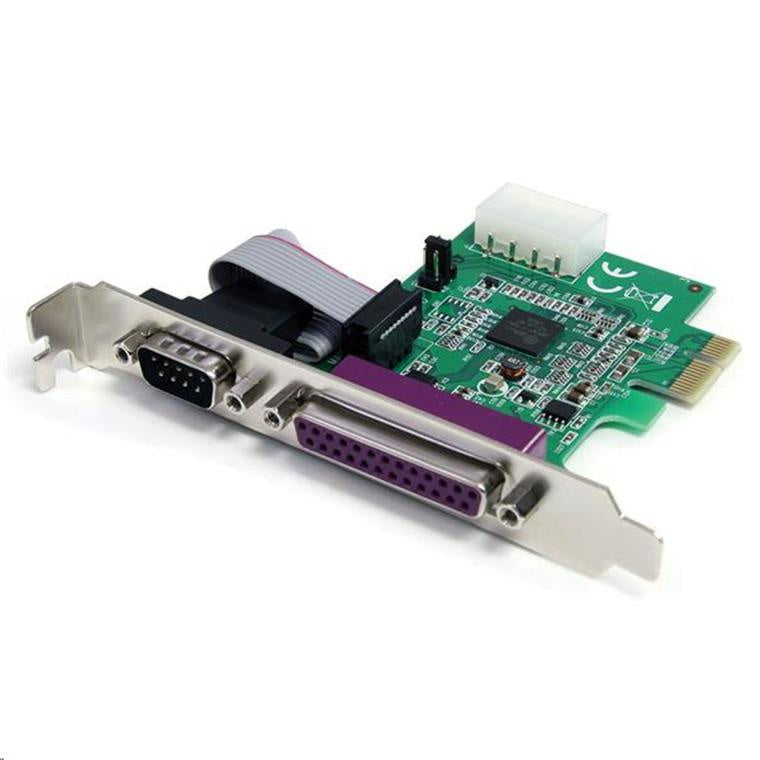

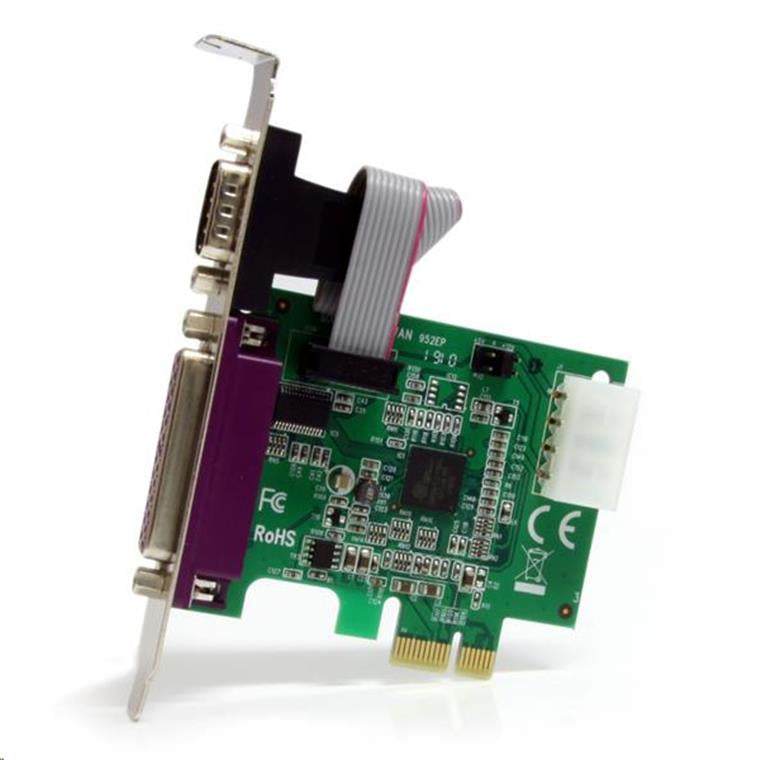

StarTech.com 1S1P PCIe Parallel Serial Combo Card

SKU: PEX1S1P952 ● In Stock
$82.40
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

StarTech.com 1S1P PCIe Parallel Serial Combo Card

Specifications

Technical Specifications

Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID PLX/Oxford - OXPCIe952
Industry Standards PCI Express base spec 1.1 PCI Power Management 1.2 IEEE 1284-compliant SPP/EPP/ECP
Interface Parallel Serial
Port Style Integrated on Card
Ports 2
Data Bits 5, 6, 7, 8, 9
FIFO 128 Bytes
Flow Control Automated in-Band, Xon/Xoff
Maximum Data Transfer Rate 1.5Mbps - Parallel 115.2Kbps - Serial
MTBF 87,600 Hours
Parity Even, Odd, Mark, Space, None
Serial Protocol RS-232
Stop Bits 1, 1.5, 2
Connector Type(s) 1 - PCI Express x1 Male

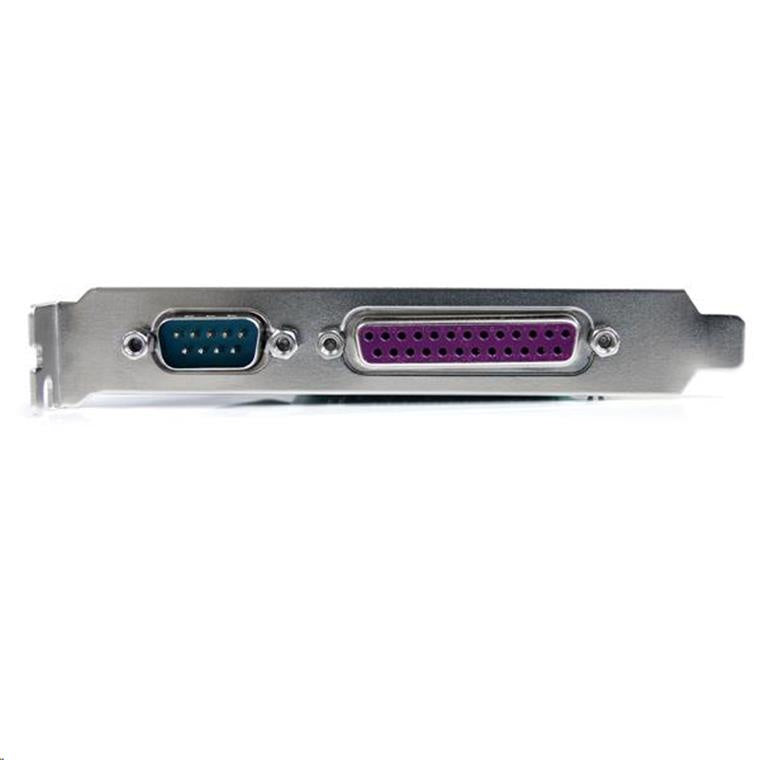

External Ports 1 - DB-25 (25 pin, D-Sub) Female 1 - DB-9 (9 pin, D-Sub) Male
Microsoft WHQL Certified Yes
OS Compatibility Windows® CE 6.0 / 5.0, 95, 98SE, 2000, XP, XP Embedded, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Linux 2.4.x to 4.4.x LTS Versions only
Power Consumption (In Watts) 0.2W
Humidity 5~85% RH
Operating Temperature -10°C to 80°C (14°F to 176°F)
Storage Temperature -20°C to 100°C (-4°F to 212°F)
Included Items 1 - 1S1P PCI-Express Serial Parallel Combo Card 2 - Low Profile Brackets 1 - Driver CD 1 - Instruction Manual
Warranty 24 months
