StarTech.com 4P6G-PCIE-SATA-CARD
StarTech.com 4P6G-PCIE-SATA-CARD
StarTech.com 4P6G-PCIE-SATA-CARD
StarTech.com 4P6G-PCIE-SATA-CARD
StarTech.com

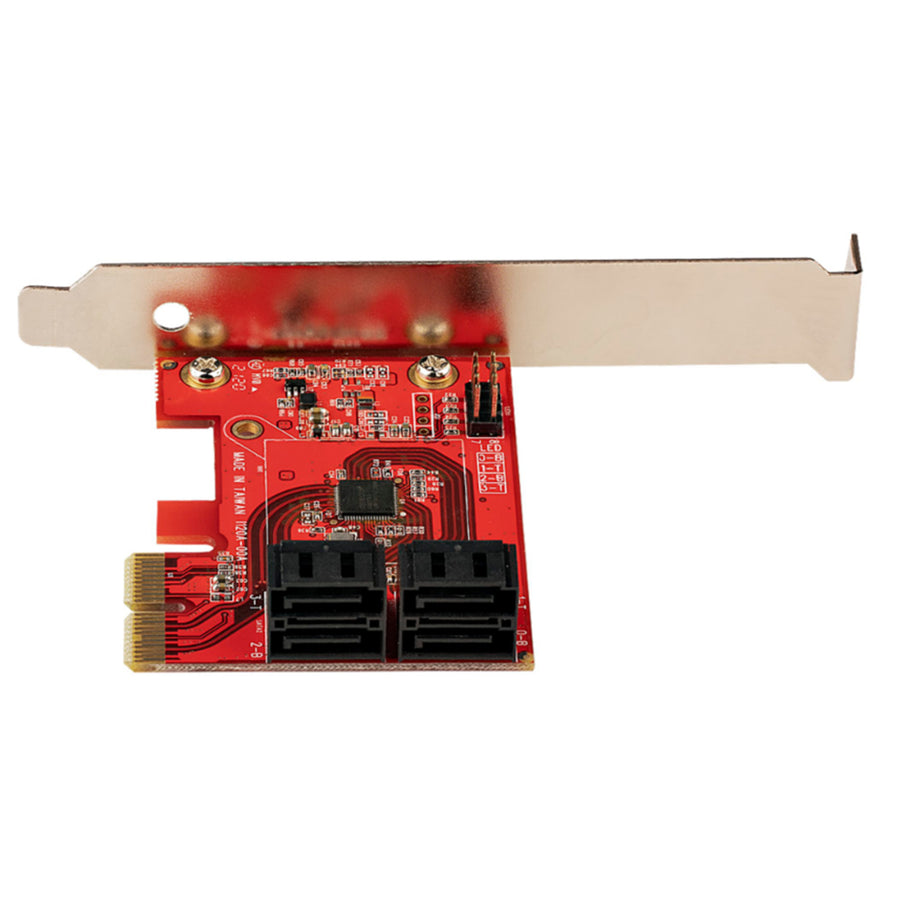

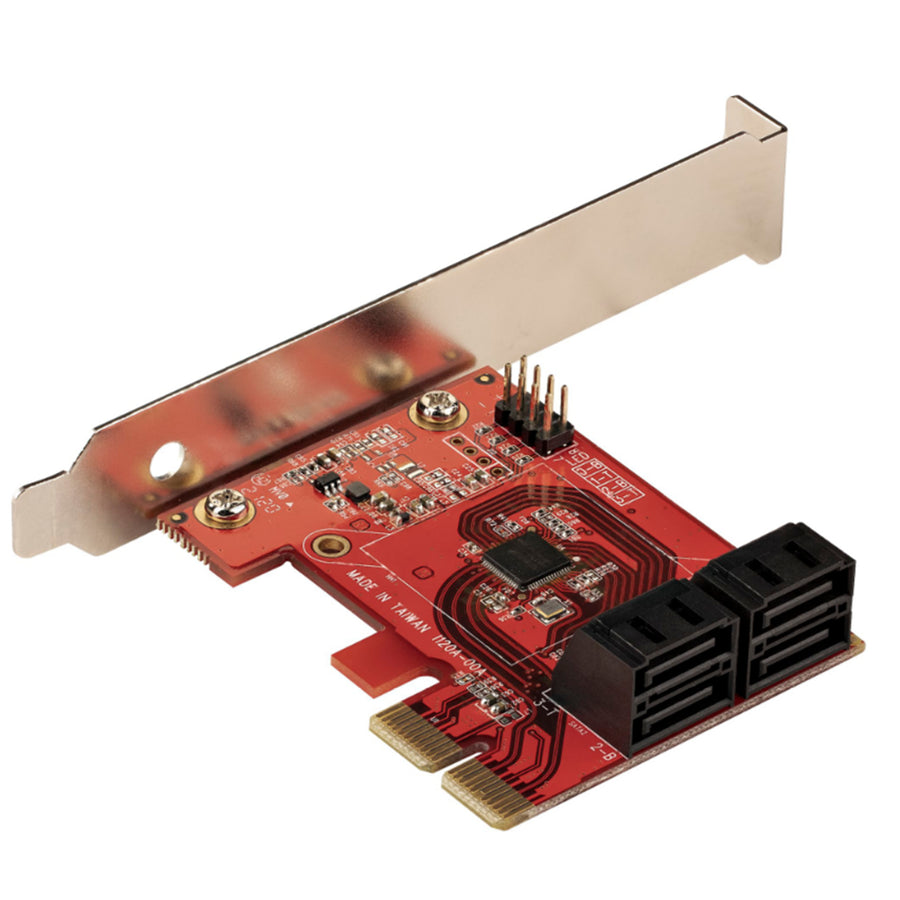

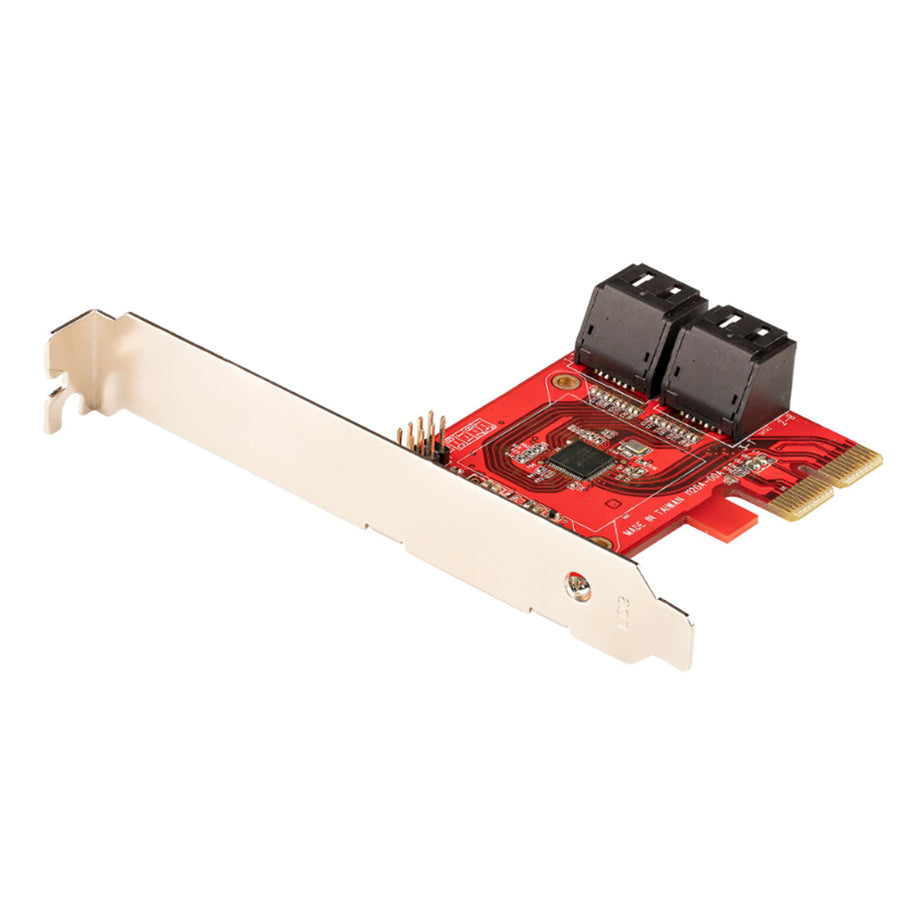

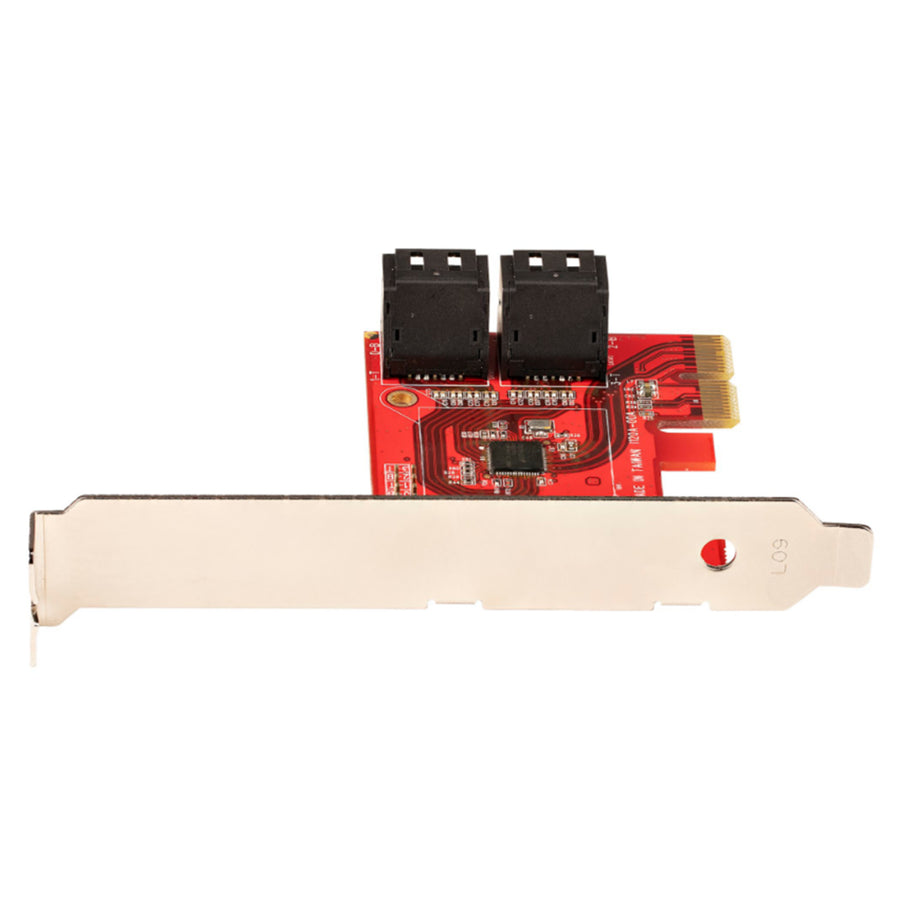

StarTech.com 4P6G-PCIE-SATA-CARD SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter

SKU: IDESTT5464477 ● In Stock
$96.39
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

StarTech.com 4P6G-PCIE-SATA-CARD SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter

Specifications

Technical Specifications

Connector Type(s) 1 - PCI Express x2
Internal Ports 4 - SATA (7 pin, Data)
Operating Temperature 0°C to 85°C (32°F to 185°F)
Storage Temperature -25°C to 85°C (-13°F to 185°F)
Humidity 20~80% RH
Ports 4
Interface SATA
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Industry Standards Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps) PCI Express Base Specification Revision 3.0
Chipset ID ASMedia - ASM1164
Package Height 1.2 in [3.0 cm]
Package Length 6.7 in [17.0 cm]
Shipping (Package) Weight 4.1 oz [115.0 g]
Package Width 5.6 in [14.2 cm]
Maximum Data Transfer Rate 6 Gbps
TRIM Support Yes
4Kn Support Yes
S.M.A.R.T. Support Yes
Type and Rate SATA III (6 Gbps)
Port Multiplier Yes
Bootable Yes
Hardware Raid Supported No
ATAPI Support Yes
Color Red
Product Height 0.6 in [1.6 cm]
Product Length 2.8 in [7.0 cm]
Weight of Product 1.8 oz [50.0 g]
Product Width 2.2 in [5.6 cm]
OS Compatibility Windows® 7, 8, 8.1, 10, 11 Windows Server® 2012 R2, 2016, 2019 macOS® 10.10 to 12 Linux 2.6.32 and up
Warranty 12 months
