StarTech.com 315B-USBC-MULTIPORT
StarTech.com 315B-USBC-MULTIPORT
StarTech.com 315B-USBC-MULTIPORT
StarTech.com

StarTech.com 6830085 USB-C HDMI Multiport Hub 4K 60Hz

SKU: 315B-USBC-MULTIPORT ● In Stock
$109.57
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

StarTech.com 6830085 USB-C HDMI Multiport Hub 4K 60Hz

Specifications

Technical Specifications

Manufacturer part number 315B-USBC-MULTIPORT

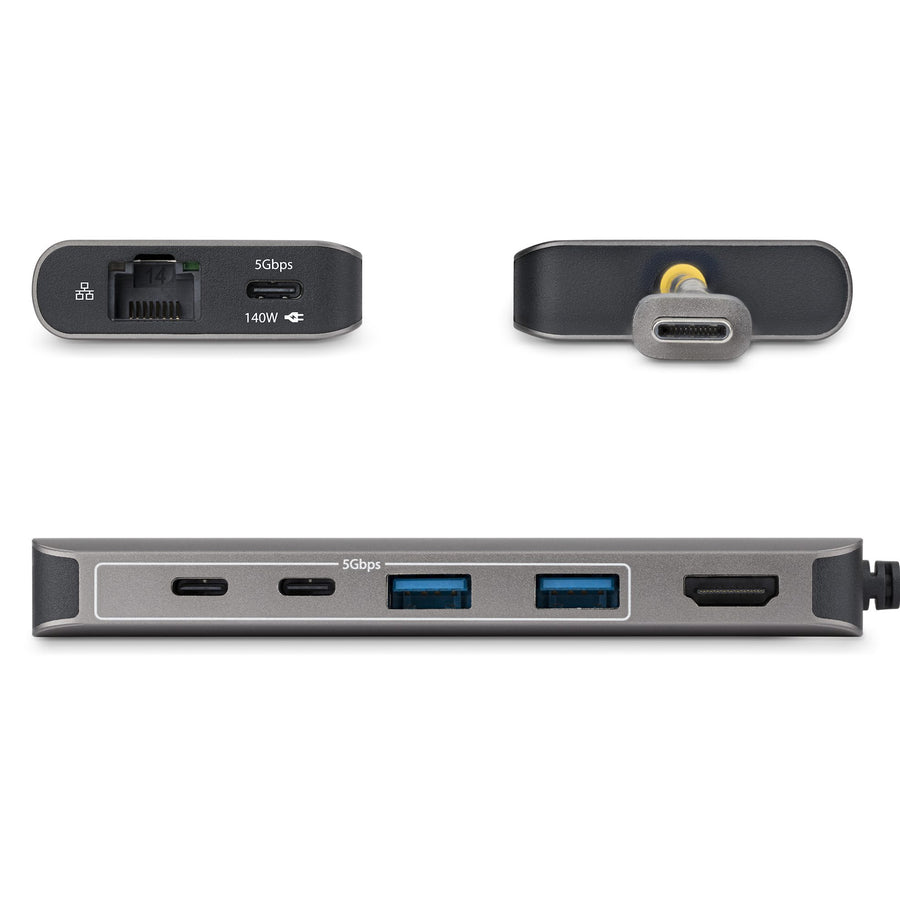

External Ports 1 - HDMI 1 - USB 3.2 Type-C (Power Delivery + Data, 24 Pin, Gen 1, 5 Gbps) 2 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps) 1 - RJ-45
Host Connectors 1 - USB 3.2 Type-C (Power Delivery + Data, 24 Pin, Gen 1, 5 Gbps)
Operating Temperature 10°C to 45°C (14°F to 113°F)
Storage Temperature 40°C to 80°C (-40°F to 176°F)
Humidity 25% ~ 93% RH
4K Support Yes
Displays Supported 1
# of Displays Supported 1
Audio Yes
Bus Type USB-C
Industry Standards USB 3.2 Gen 1 (5Gbps) HDMI 2.0 USB Power Delivery Specification Rev. 3.2
Chipset ID VIA - VL109 VIA - VL600 VIA - VL817S Realtek - RTL8153B
Wake On Lan Yes
Maximum Data Transfer Rate USB 5Gbps
Maximum Digital Resolutions 4K 60Hz
Type and Rate USB 3.0 (5Gbps)
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
PXE Yes
Full Duplex Support Yes
General Specifications Maximum Laptop Charging: 120W
MTBF 31,565 Hours
Color Space Gray
Material Aluminum and Plastic
Cable Length 8.0 in [20.3 cm]
Product Length 4.9 in [125 mm]
Product Width 2.0 in [50 mm]
Product Height 0.6 in [15 mm]
Weight of Product 0.2 lb [0.1 kg]
Power Source Bus Powered and Host USB-C Power Adapter
Power Delivery 140W
Output Voltage 5 DC
Plug Type USB Type-C (24 pin) USB Power Delivery Only
Power Consumption (In Watts) SPR (Up to 100W): 15W EPR (Up to 140W): 20W
OS Compatibility Windows 10, 11, 11 ARM macOS 10.15, 11.0, 12.0, 13.0, 14.0, 15.0, 26.0 Linux Ubuntu 18.04, 20.04 ChromeOS™
System and Cable Requirements A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery and DP alt mode). Optional: USB-C pow
Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode. If the USB-C Host does
Included in Package 1 - Multiport Adapter 1 - Product Documentation
Product type USB Hubs
Weight 0.2 kg
Warranty 12 months
