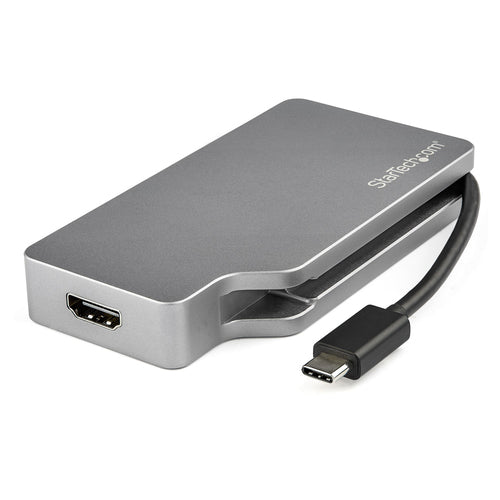

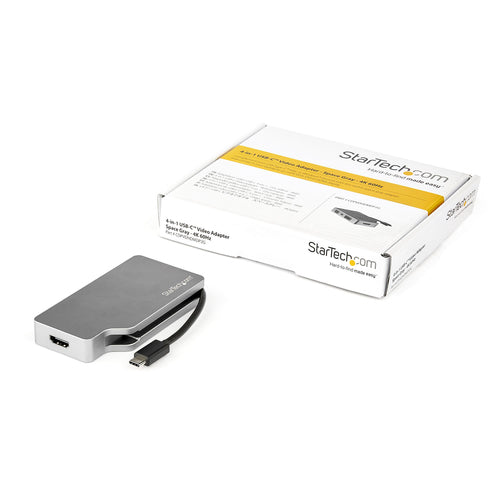

StarTech.com CDPVDHDMDP2G - USB-C Multiport Video Adapter - 4-in-1
You May Also Like
Cruxtec USB-C to Displayport 1.4 Adapter - ( 8K/60Hz & 4K/ 144Hz )
Features
This USB-C™ multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a VGA, DVI, HDMI® or Mini DisplayPort (mDP) display.
All-in-One Video Connectivity with Travel in Mind
Avoid the hassle of carrying different adapters, with a 4-in-1 USB-C monitor adapter. With VGA, DVI, HDMI and mDP output, you can connect your laptop to any display using this multiport adapter.
The adapter features a magnetic retainer that guides the breakout cable into place for quick, secure portability. With a durable aluminum enclosure, the adapter can withstand being carried in your travel bag.
Ultra HD 4K 60Hz Resolution
The HDMI and mDP outputs on this USB-C video adapter support UHD resolutions up to 4K 60Hz, while the VGA and DVI outputs support HD resolutions up to 1920 x 1200.
Stylish Connectivity for Your MacBook, MacBook Pro, or Any Laptop
The USB-C adapter has a Space Gray housing and built-in USB-C cable designed to match your Space Gray MacBook, or MacBook Pro. The adapter is compatible with USB-C DP Alt Mode devices.
The adapter is also available with 4K 30Hz HDMI resolution support, in three colors: Space Gray (CDPVDHDMDPSG), Rose Gold (CDPVDHDMDPRG) and Silver (CDPVGDVHDMDP), so you can choose an adapter that matches your laptop or your color preference.
Applications
- Connect to virtually any display while traveling
- Connect your MacBook to a provided VGA, DVI, HDMI or mDP display at work or school
- Connect a secondary VGA, DVI, HDMI or mDP monitor to your Space Gray MacBook
Specifications
Technical Specifications
| Active or Passive Adapter | Active |
|---|---|
| Adapter Style | Adapters |
| AV Input | USB Type-C |
| AV Output | DVIHDMIVGAMini-DisplayPort |
| Chipset ID | Cypress - CYPD3120Parade - PS8348Parade - PS8617Parade - PS8338Parade - PS171Parade - PS176 |
| Audio Specifications | HDMI or mDP output: 7.1 surround sound |
| Maximum Analog Resolutions | 1920 x 1200 @ 60Hz |
| Maximum Digital Resolutions | 4096 X 2160 @ 24Hz or 3840 X 2160 @ 60Hz (HDMI)4096 X 2160 @ 60Hz (mDP) |
| Supported Resolutions | Maximum HDMI output: 4096 X 2160 @ 24Hz or 3840 X 2160 @ 60HzMaximum mDP output: 4096 X 2160 @ 60HzMaximum DVI and VGA output: 1920 x 1200 @ 60HzLower resolutions and refresh rates may also be supported |
| Video Revision | HDMI 2.0DisplayPort 1.2 |
| Wide Screen Supported | Yes |
| Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input |
| Connector B | 1 - Mini-DisplayPort (20 pin) Female Output1 - VGA (15 pin, High Density D-Sub) Female Output1 - DVI-I (29 pin) Female Output1 - HDMI (19 pin) Female Output |
| Note | Only one video output is supported on the video adapter at a time, if multiple connections are made, only one of the outputs will function |
| Humidity | Storage: 5% ~ 90 % RH (no condensation)Operating: 10% ~ 85 % RH (no condensation) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Cable Length | 4.5 in [115 mm] |
| Color | Space Gray |
| Enclosure Type | Aluminum |
| Product Height | 1.2 in [30 mm] |
| Product Length | 6.9 in [175 mm] |
| Product Weight | 6.5 oz [185 g] |
| Product Width | 5.6 in [142 mm] |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.082 kg |
| Warranty |
|---|
