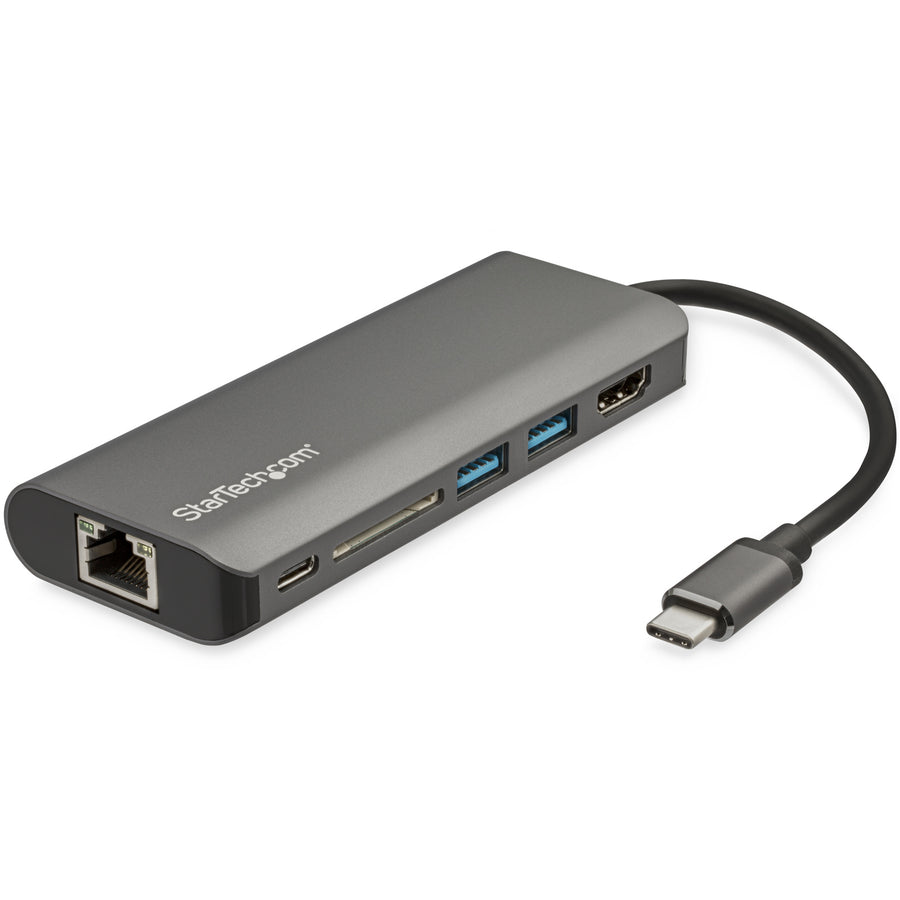

StarTech.com USB-C Single 4K Mobile Dock with 60W Power Delivery
You May Also Like
Cruxtec CDK14-SG 14-in-1 USB-C 100W Docking Station with Built-in M.2 Slot support upto 4TB -
Cruxtec CDK10-SG USB-C to Dual HDMI, Multi- Screen output 4K60hz - Mini Docking
Features
https://www.startech.com/en-nz/universal-laptop-docking-stations/dkt30csdhpd3

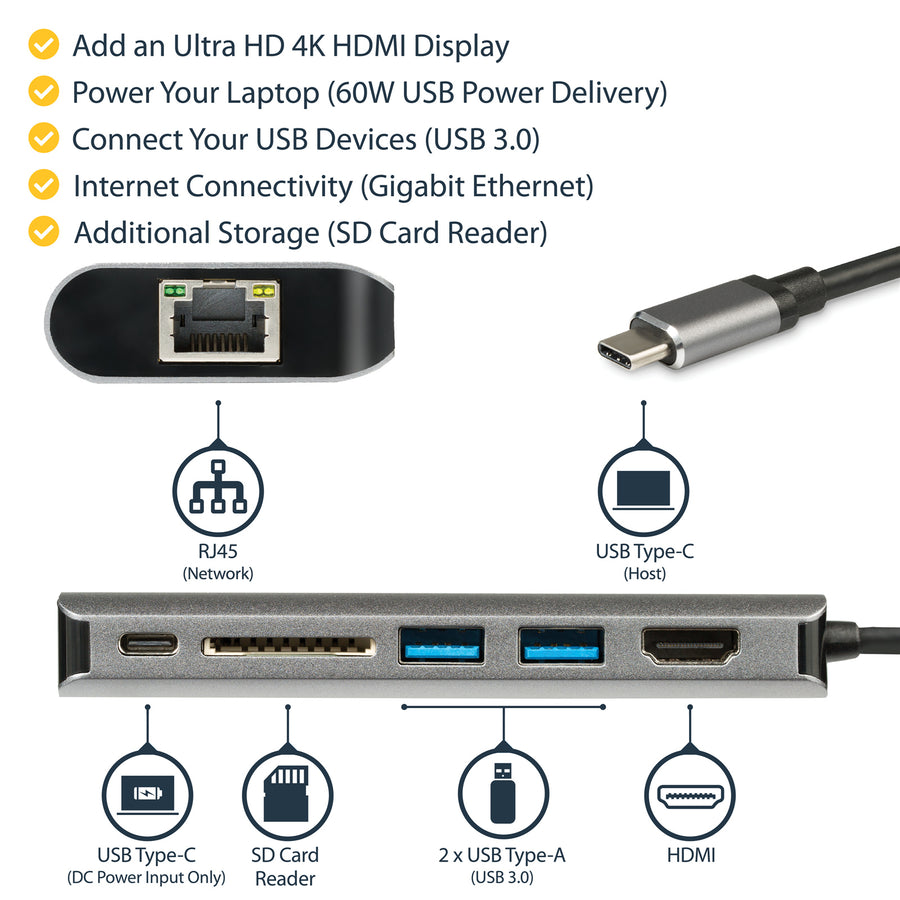

This USB-C multiport adapter with HDMI® turns your MacBook Pro, Dell XPS, or other USB-C™ laptop into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB Type-C™ port (data/power), two USB 3.0 Type-A ports, a Gigabit Ethernet port and an SD card reader slot, all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0.
- Connect a 4K HDMI monitor to your MacBook Pro or Windows laptop with this USB-C HDMI multiport adapter
- Utilize USB devices when you travel with 3x USB 3.0 ports - 2x USB-A and 1x USB-C
- Power both the multiport adapter and your laptop, using your laptop's USB-C power adapter (supports USB Power Delivery 3.0)
Applications
- Ideal for meetings and making presentations in the boardroom
- Transfer photos, videos or other files from your SD cards to your USB-C laptop, tablet or other device
- Use an HDMI port-equipped television in a hotel room as an external display
- Power the adapter and your laptop through USB-C, using your laptop's power adapter
- Ideal for small workspaces in offices, home offices as well as office hoteling
Enhance Productivity
The portable docking station connects your laptop to a 4K HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.
Connect Your Devices
The USB-C to USB 3.0 hub gives you one USB-C port and two USB-A ports to connect your latest and legacy USB devices.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD cards (with adapter, sold separately).
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 60W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access.
The DKT30CSDHPD3 is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:?To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP Alt Mode.
Notes
* Product appearance and specifications are subject to change without notice.
Specifications
Technical Specifications
| 4K Support | Yes |
|---|---|
| Bus Type | USB-C |
| Chipset ID | VIA/VLI - VL102VIA/VLI - VL817Genesys Logic - GL823KParade - PS176Realtek - RTL8153 |
| Displays Supported | 1 |
| Fast-Charge Port(s) | No |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3abUSB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0)2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30HzUltraWide - 3440 x 1440p @ 60 Hz or 2560x1080 at 60HzLower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p. |
| Memory Media Type | Secure Digital CardSDHC (Secure Digital High Capacity)SDXC (Secure Digital eXtended Capacity)microSD (Micro Secure Digital) (adapter required)microSDHC (Micro Secure Digital High Capacity) (adapter required)microSDXC (Micro Secure Digital eXtended Capacity) (adapter required) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Connector Type(s) | 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male1 - HDMI (19 pin) Female1 - RJ-45 Female2 - USB Type-A (9 pin) USB 3.0 Female1 - SD Slot Female1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female |
| OS Compatibility | Windows® 7, 8, 8.1, 10Mac OS® 10.11 to 10.14Chrome OS™ |
| Note | Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or higher and DP alt mode.The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware. |
| System and Cable Requirements | A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter) |
| Power Delivery | 60W |
| Power Source | USB-Powered |
| Humidity | 5~90% RH (Non-condensing) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 85°C (14°F to 185°F) |
| Cable Length | 6 in [152 mm] |
| Color | Space Gray |
| Enclosure Type | Aluminum |

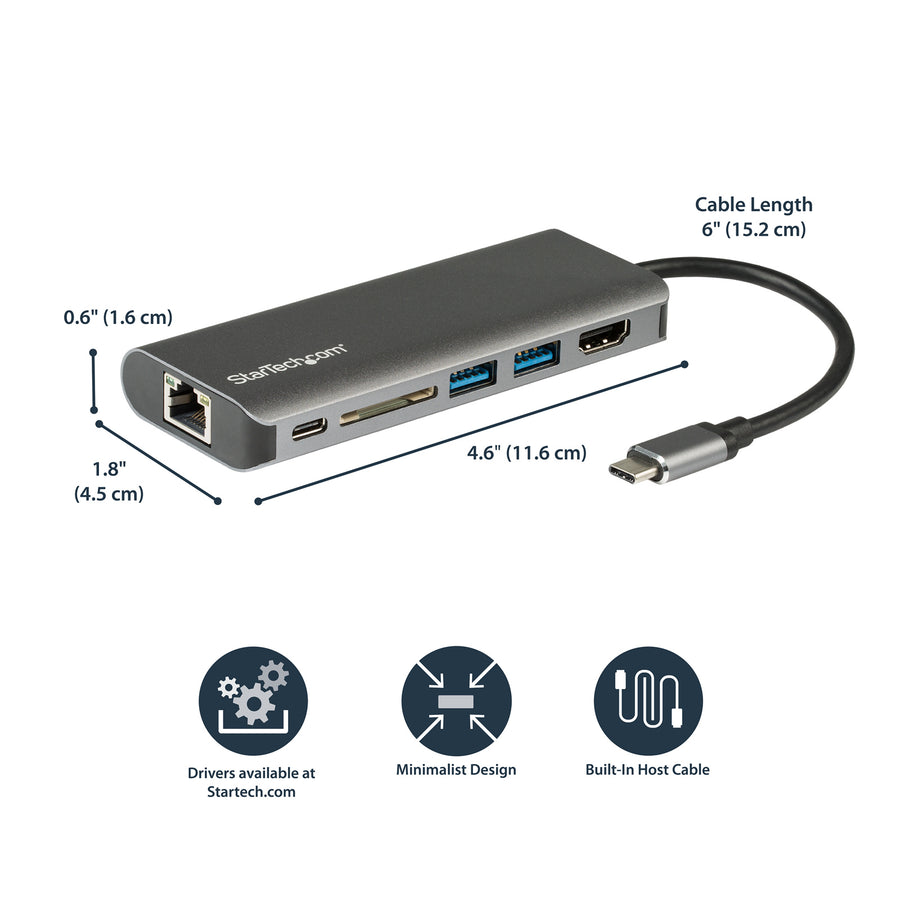

| Product Height | 0.6 in [15 mm] |
| Product Length | 10.6 in [270 mm] |
| Product Weight | 3 oz [85 g] |
| Product Width | 1.8 in [45 mm] |
| Shipping (Package) Weight | 5.5 oz [157 g] |
| Included in Package | 1 - multiport adapter1 - quick-start guide |
| Notes | * Product appearance and specifications are subject to change without notice. |
| Brand | StarTech.com |
|---|---|
| Product Type | Computers & Tablets > Docking Stations |
| Weight | 0.235 kg |
| Warranty |
|---|
