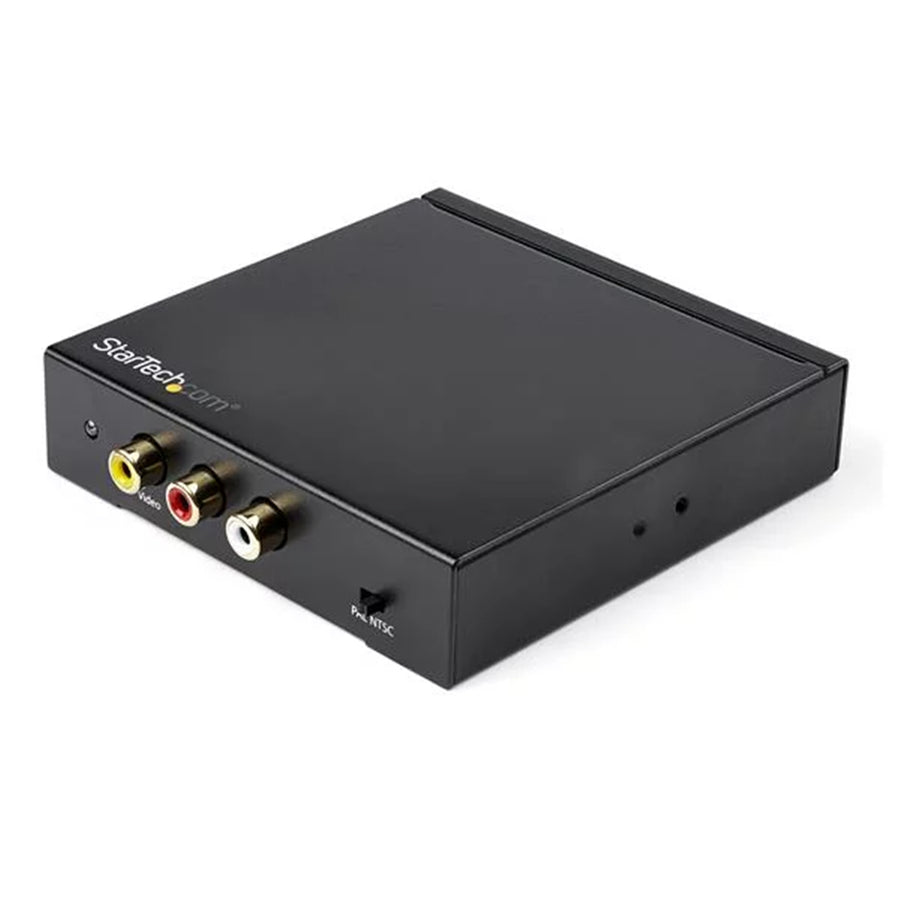

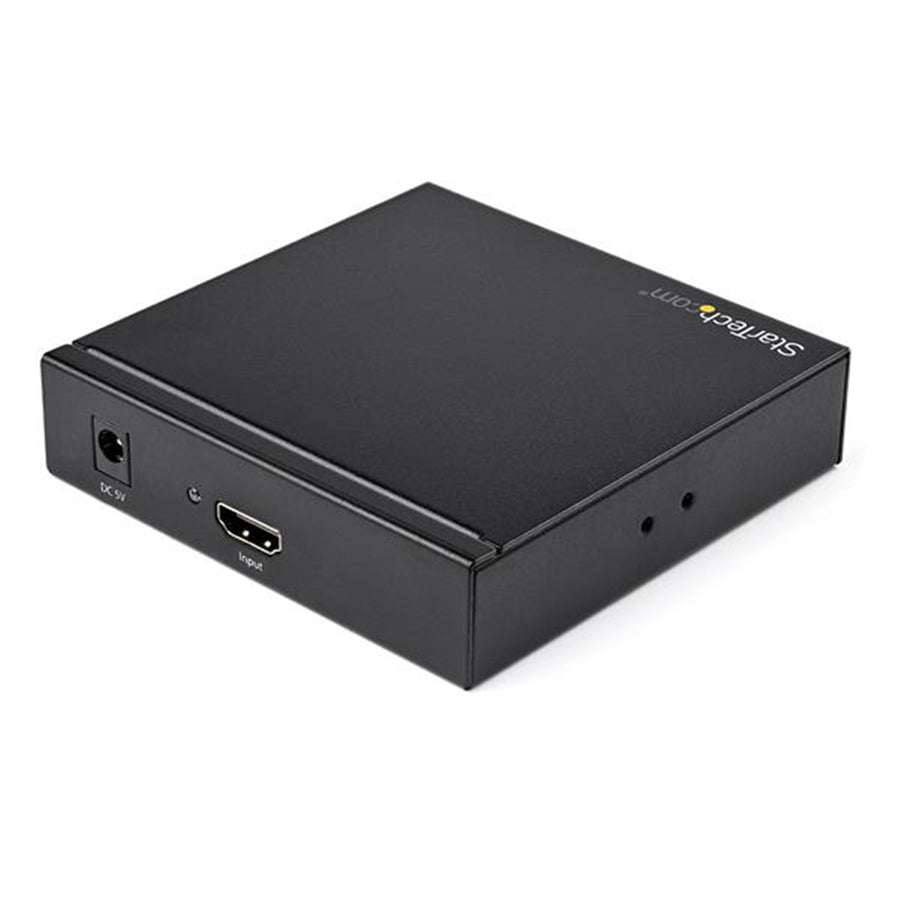

StarTech.com HD2VID2 HDMI to RCA Converter Box with Audio - Composite Video Adapter - NTSC/PAL - 1080p
Features
This HDMI to RCA converter box with audio converts a digital HDMI video source (with supporting audio) to work with analog RCA composite video televisions and displays, in both NTSC and PAL systems.
Uncompromised Quality
This HDMI to composite video converter provides features that ensure the highest quality output image, such as noise reduction, frame rate conversion and adaptive contrast enhancement.
With support for high-definition input resolutions up to 1080p, this RCA adapter lets you convert your HDMI signal to composite video and audio while still producing a crystal-clear picture.
Ultimate Convenience
This lightweight composite adapter is compact and highly portable, so you can use it virtually anywhere. Offering support for a wide range of HDTV and PC input resolutions, this versatile RCA converter is a perfect solution for using newer devices with your existing legacy displays.
The ability to convert and use your new HDMI equipped device with your older televisions or displays not only offers flexibility but also saves you the cost of upgrading hardware, making it extremely convenient for home or office applications.
Hassle-Free Setup
To ensure easy operation and installation, this unique RCA composite video converter allows for plug-and-play installation without any additional software or drivers.
Specifications
Technical Specifications
| Active or Passive Adapter | Active |
|---|---|
| Audio | Yes |
| AV Input | HDMI |
| AV Output | Audio RCAComposite |
| Industry Standards | Standard HDMI, DVI 1.0 |
| Audio Specifications | Input - LPCM 2Ch, 48kHzOutput - Stereo L/R |
| Supported Resolutions | InputTV - 1080p, 720p, 576p, 480p @ 60HzPC - 1920x1080, 1280x800, 1280x768, 1224x768, 800x600, 640x480 @ 60HzOutput480i, 576p |
| Connector A | 1 - HDMI (19 pin) Female Input |
| Connector B | 1 - Composite Video (1 x RCA) Female Output |
| Input Connector(s) | 1 - Stereo Audio (2 x RCA) Female Output |
| LED Indicators | 1 - Input LED1 - Power LED |
| Input Current | 0.4 A |
| Input Voltage | 100 - 240 AC |
| Output Current | 1000 mA |
| Output Voltage | 5 DC |
| Plug Type | M |
| Power Source | AC Adapter Included |
| Humidity | 20~90% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Color | Black |
| Product Height | 1 in [2.5 cm] |
| Product Length | 4.3 in [10.8 cm] |
| Product Width | 3.9 in [10 cm] |
| Weight of Product | 10.1 oz [286 g] |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.249 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
