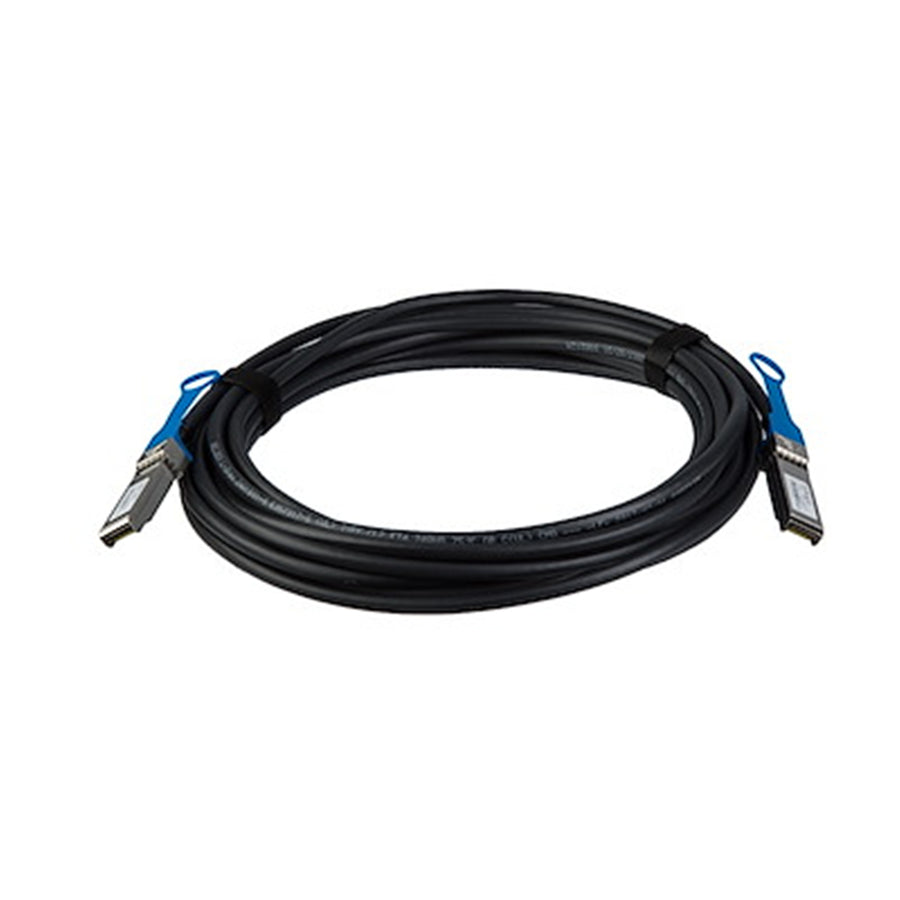

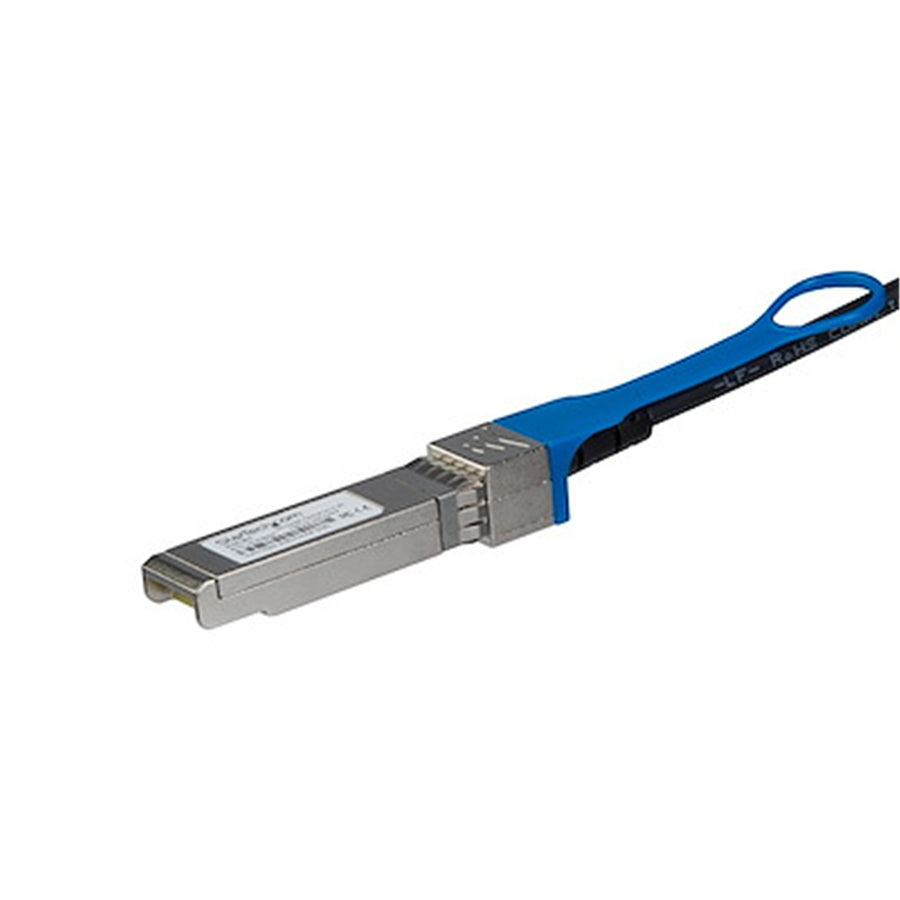

StarTech.com HPE J9285B Compatible 10G SFP+ Direct Attach Copper (DAC) Cable - 7m
You May Also Like
Vention IKABQ Cat8 SFTP Patch Cable - 20m - Black
Features
The J9285BST is an HP J9285B compatible direct-attach copper SFP+ cable that's designed, programmed and tested to work with HP® brand compatible switches and routers and complies with MSA industry standards.
This passive Twinax copper cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. This copper SFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Designed for high-speed performance, this low-power, low-latency SFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
Specifications
Technical Specifications
| 1 - Connector A | SFP+ |
|---|---|
| 1 - Connector B | SFP+ |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 158°F) |
| Compatible Brand | HPE |
| Cable Jacket Material | PVC - Polyvinyl Chloride |
| Cable Type | Passive Copper Cable |
| Package Height | 1.0 in [25.0 mm] |
| Package Length | 10.6 in [27.0 cm] |
| Shipping (Package) Weight | 14.4 oz [407.0 g] |
| Package Width | 9.8 in [25.0 cm] |
| Compatible Networks | 10 Gbps |
| Maximum Data Transfer Rate | 10Gbps |
| Impedance | 100 Ohm |
| Power Consumption (In Watts) | < 0.1 W (per end) |
| Color | Black |
| Wire Gauge | 24 AWG |
| Material | Steel |
| Cable Length | 23.0 ft [7 m] |
| Product Length | 23.0 ft [7.0 m] |
| Product Width | 0.6 in [14.0 mm] |
| Product Height | 0.5 in [12.0 mm] |
| Weight of Product | 14.2 oz [401.0 g] |
| 1 - Included in Package | SFP+ cable |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Network Cables |
| Weight | 0.136 kg |
| Warranty |
|---|
