StarTech.com MR12GI-NETWORK-CARD 1Port 2.5G M.2 NBASE-T PCIe Ethernet NIC

SKU: MR12GI-NETWORK-CARD ● In Stock
$140.87
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

StarTech.com

StarTech.com ST10GSPEXNDP2 2-Port 10Gbps PCIe Network Adapter Card

$302.61
inc GST ▲ +GST

Features

StarTech.com MR12GI-NETWORK-CARD 1Port 2.5G M.2 NBASE-T PCIe Ethernet NIC

Specifications

Technical Specifications

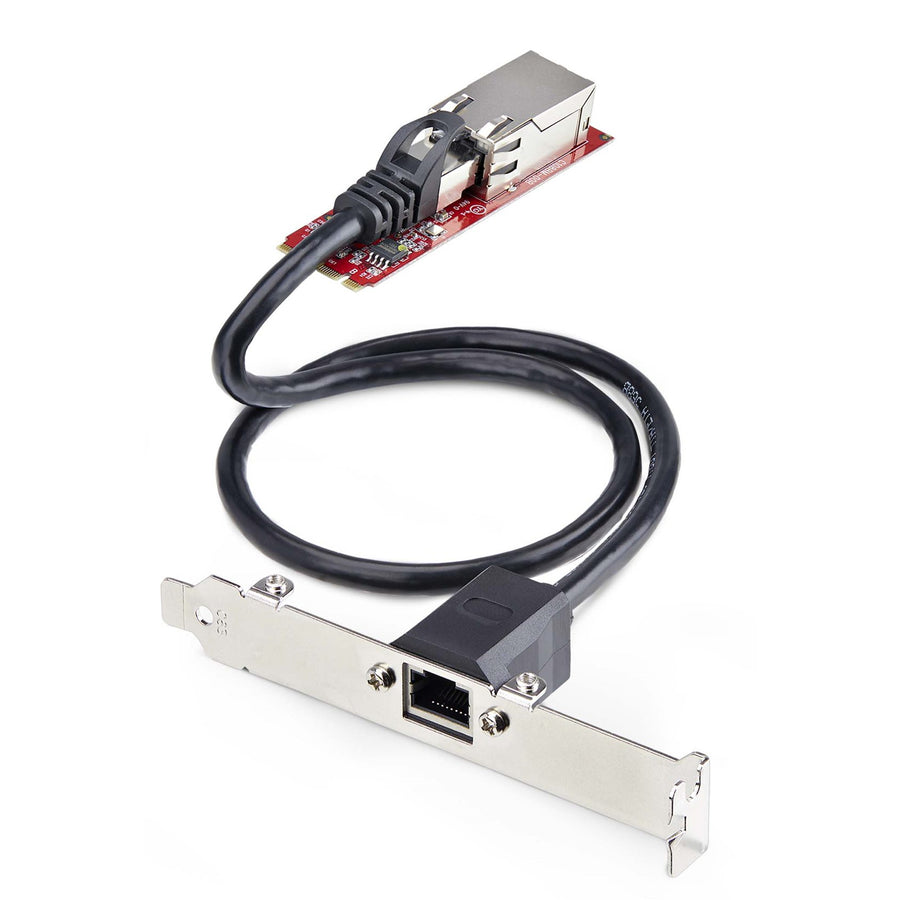

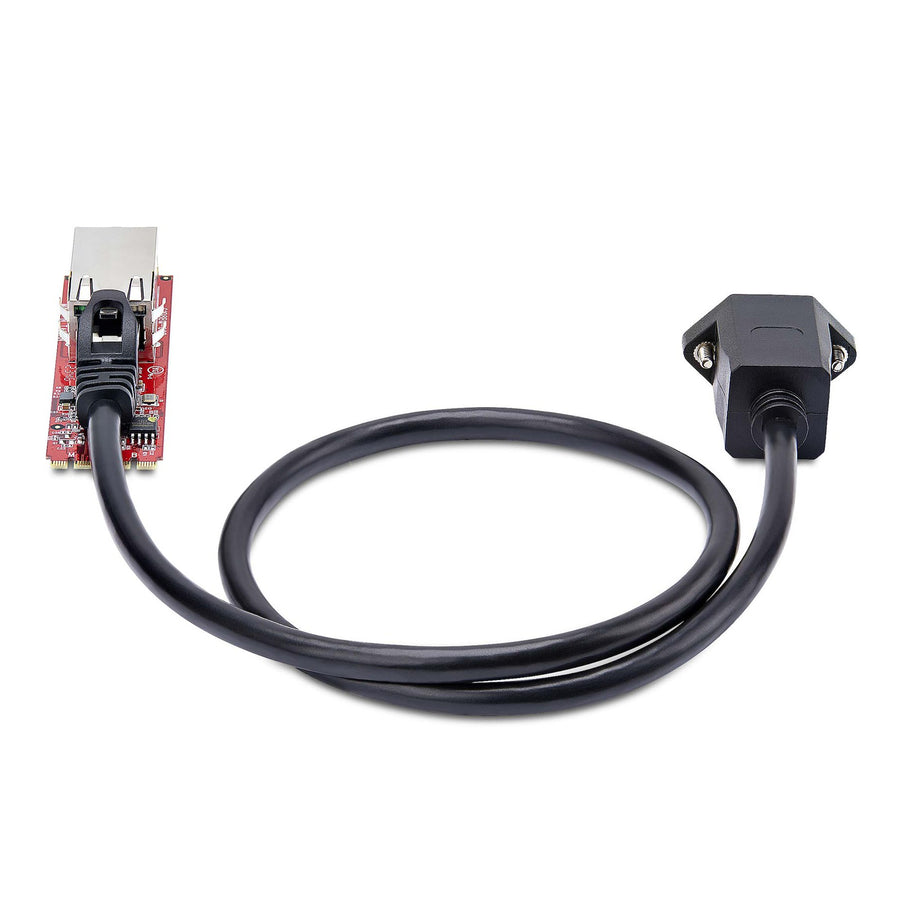

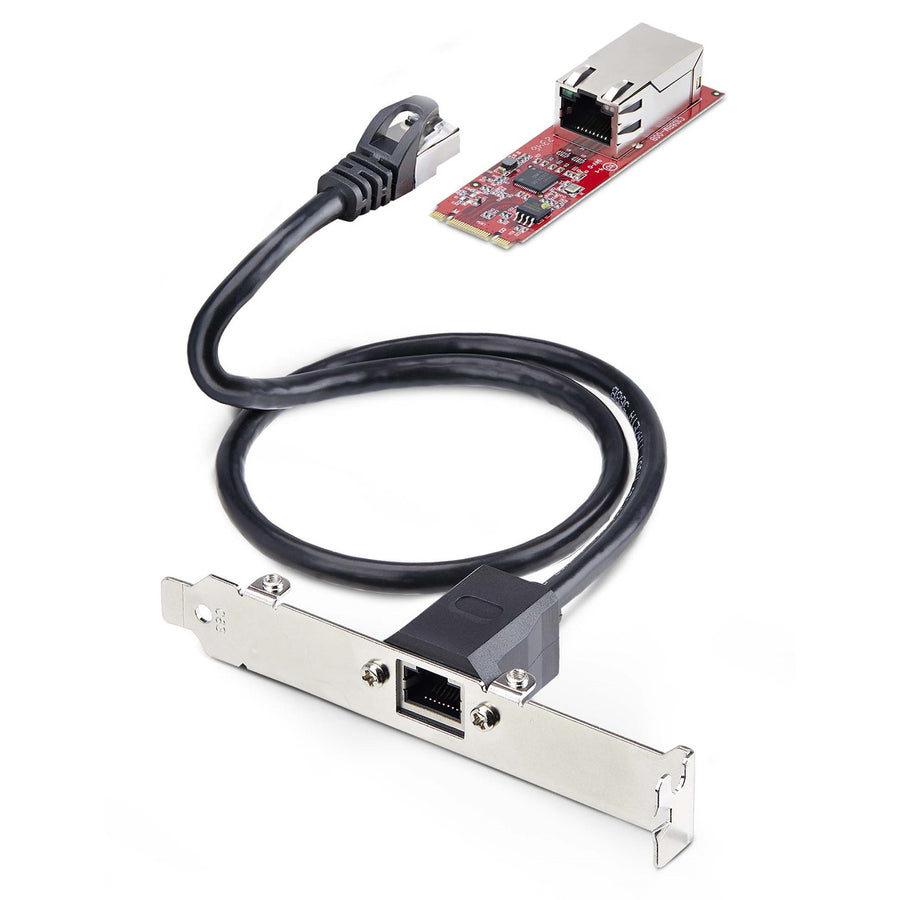

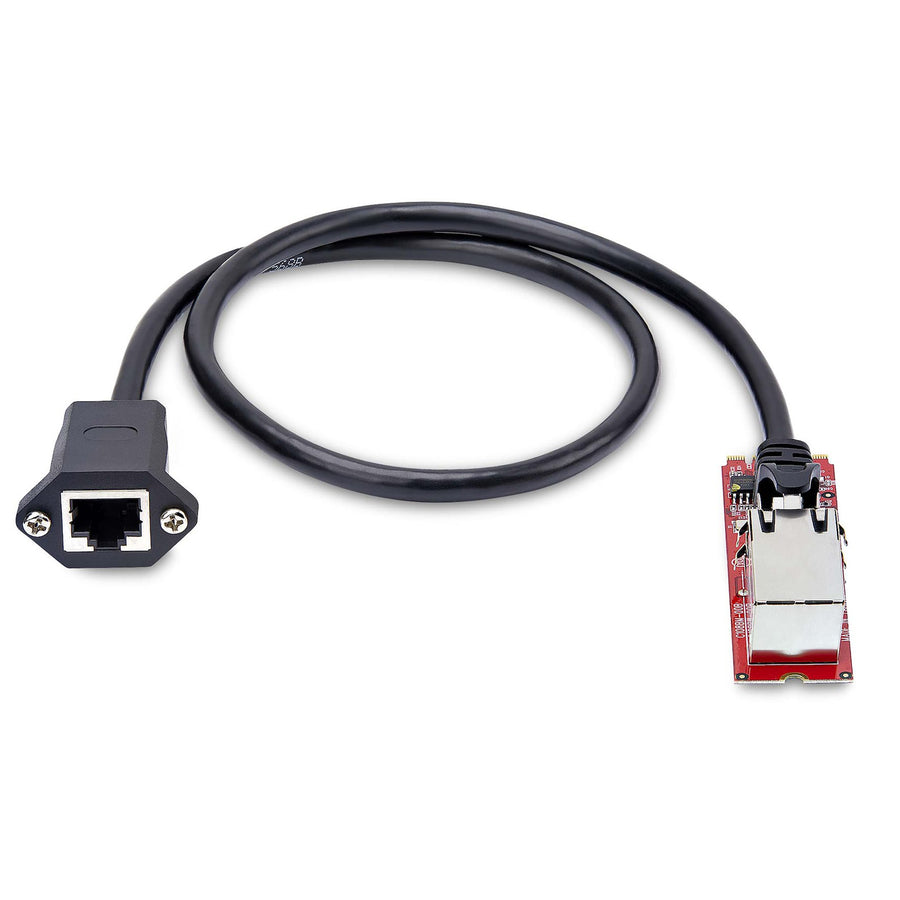

Included in Package 1 - M.2 Network Card 1 - CAT6 Cable Adapter 1 - Full-Profile Bracket 1 - Low-Profile Bracket 1 - M3x2 Screw 1 - Quick-Start Guide
Connector Type(s) 1 - M.2 (B+M-Key, PCIe)
External Ports 1 - RJ-45
Ports 1
Interface RJ45 (2.5G Ethernet) M.2 PCIe
Bus Type M.2
Card Type Standard Profile (LP bracket incl.)
Industry Standards IEEE 802.3bz (2.5GBASE-T) IEEE 802.3ab (1000BASE-T ) IEEE 802.3u (100BASE-TX ) IEEE 802.3i (10BASE-TX) IEEE 802.1Q (VLAN) IEEE 802.1p (QoS) IEEE 802.1AS (AVB) IEEE P802.3az (EEE) I
Chipset ID Intel - I225-V
LED Indicators 1 - Left LED Indicator is Link Status Solid Green: Active Link Flashing Green: Activity 1 - Right LED Indicator is Link Speed Solid Green: 2.5 Gbps Solid Amber: 1.0 Gbps Off: 100 o
Wake On Lan Yes
Maximum Data Transfer Rate 2.5Gbps
Compatible Networks 2.5G/1G/100Mbps/10Mbps
Auto MDIX Yes
PXE Yes
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Promiscuous Mode Yes
Power Source Bus Powered
OS Compatibility Windows® 10, 11 Windows Server® 2019, 2022 Linux 5.8.x and up - LTS Versions only
Color Red
Product Height 0.6 in [1.5 cm]
Product Length 0.9 in [2.2 cm]
Weight of Product 0.5 oz [15.0 g]
Product Width 3.1 in [8.0 cm]
Form Factor Separate Cable
Note Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11.
Warranty 12 months
