StarTech.com PEX8S1050LP - Serial Card - 8-Port PCIe - Low Profile
You May Also Like
Unitek Y-7504 - 2 Port Serial PCI-E Card Includes Low Profile Brackets
Unitek Y-7504 - 2 Port Serial PCI-E Card Includes Low Profile Brackets
StarTech.com PEX2S953LP - 2Port PCIe RS232 Serial DB9 Adapter Card

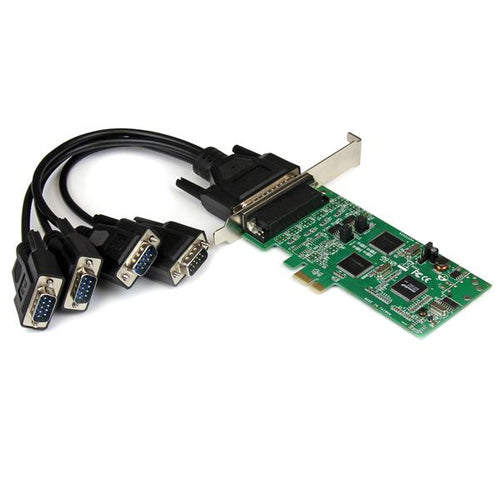

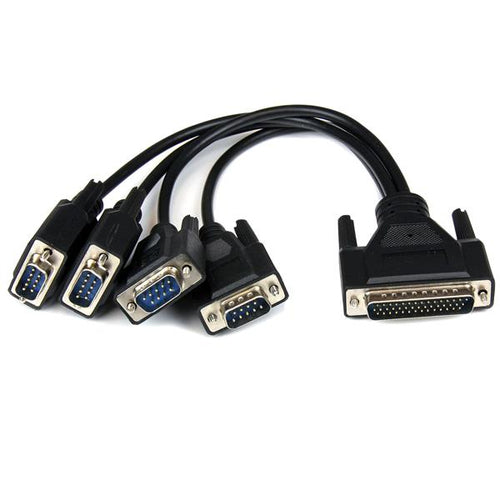

StarTech.com PEX4S232485 - 4 Port RS232/422/485 PCIe Serial Card
Features
Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.
Versatile Use
The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
Specifications
Technical Specifications
| 1 - Connector Type(s) | PCI Express x1 |
|---|---|
| 1 - Internal Ports | SP4 (4 pin, Small Drive Power) |
| 8 - External Ports | DB-9 (9 pin, D-Sub) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | 5~95% RH |
| Ports | 8 |
| Interface | Serial |
| Bus Type | PCI Express |
| Card Type | Low Profile (SP bracket incl.) |
| Port Style | Dongle (Included) |
| Chipset ID | ASMEDIA - ASM1083SYSTEMBASE - SB16C1058PCI |
| Serial Protocol | RS-232 |
| Max Baud Rate | 921.6 Kbps |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 256 Bytes |
| Flow Control | RTS/CTS, XON/XOFF |
| Parity | None, Even, Odd, 1, 0 |
| Stop Bits | 1, 1.5, 2 |
| Color | Yellow |
| Product Height | 2.4 in [6 cm] |
| Product Length | 5.7 in [14.5 cm] |
| Weight of Product | 4.1 oz [116 g] |
| Product Width | 0.9 in [2.2 cm] |
| Material | Steel |
| Cable Length | 11.8 in [30 cm] |
| OS Compatibility | Windows® CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11Windows Server® 2003, 2008 R2, 2012, 2016, 2019Linux 2.4.x to 4.11.x LTS Versions only |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Parts > IO, SCSI, IDE Cards > Serial Cards |
| Weight | 0.272 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
