StarTech.com

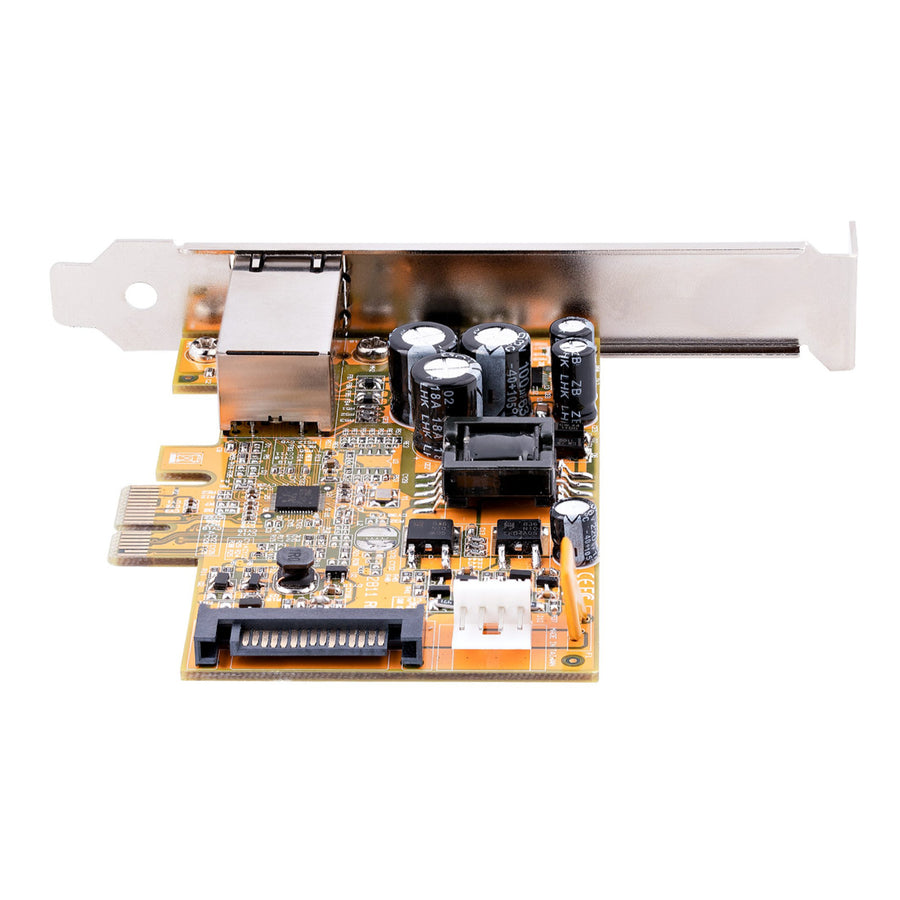

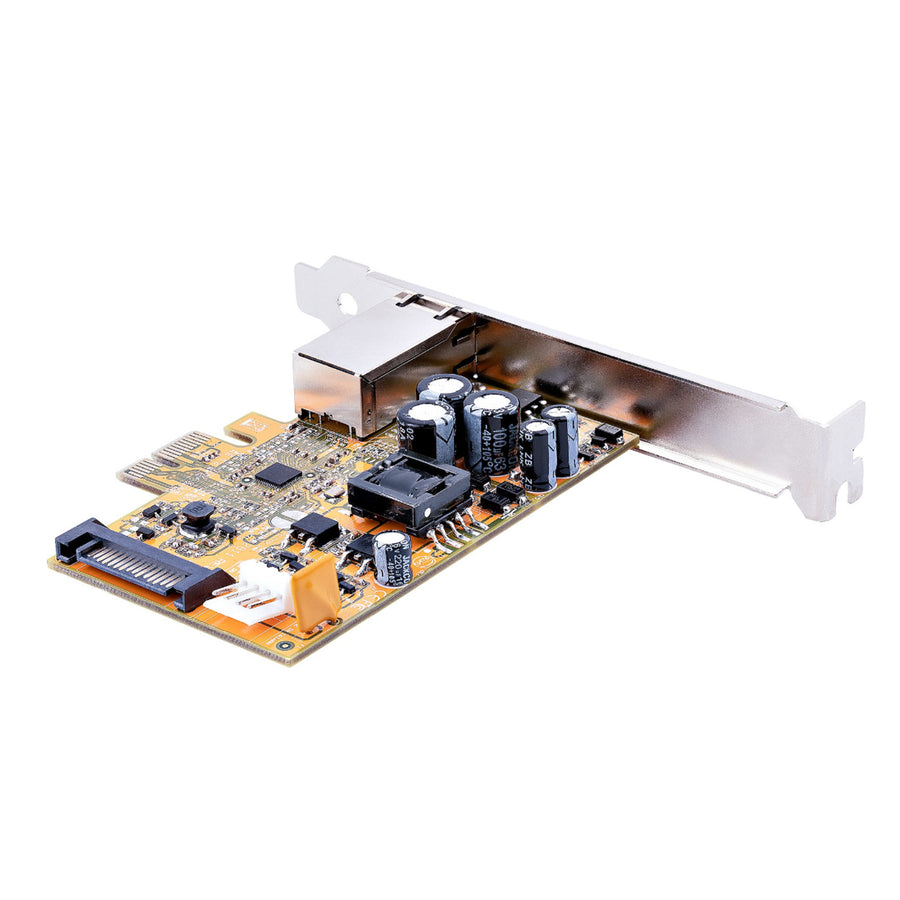

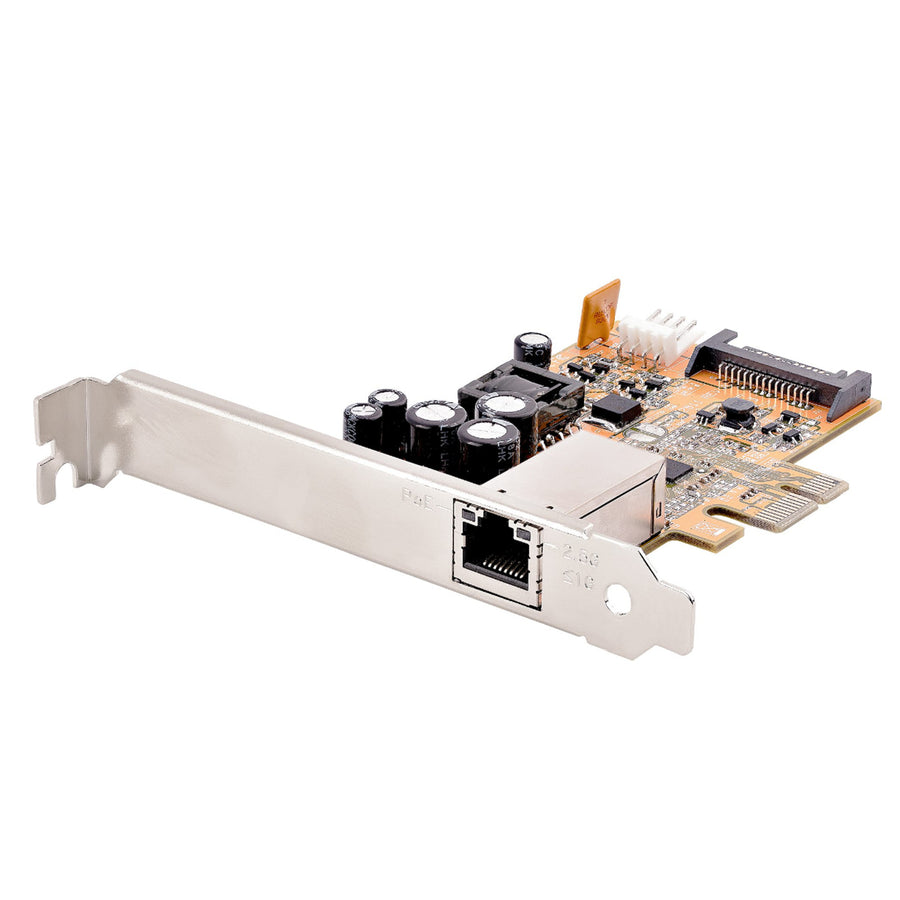

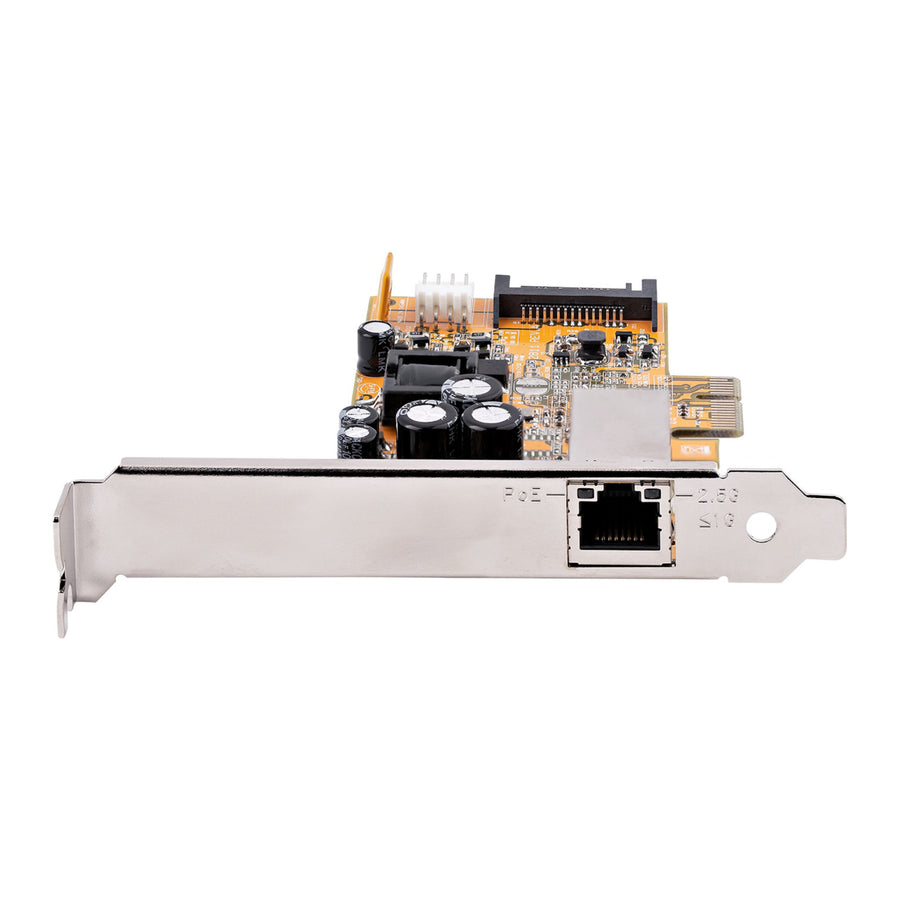

StarTech.com ST1000PEXPSE 1 Port 2.5Gbps PoE Network Card PCIe Ethernet Card w/RJ45 30W802.3at PoENICfor Desktops/Servers Network PoE LAN Adapter w/Low-Profile Bracket NBaseT Windows/Linux
$193.91
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
StarTech.com ST1000PEXPSE 1 Port 2.5Gbps PoE Network Card PCIe Ethernet Card w/RJ45 30W802.3at PoENICfor Desktops/Servers Network PoE LAN Adapter w/Low-Profile Bracket NBaseT Windows/Linux
Specifications
Technical Specifications
| Manufacturer part number | ST1000PEXPSE |
|---|---|
| Connector Type(s) | 1 - PCI Express x1 |
| Connector A | 1 - RJ-45 (PoE+) |
| Internal Ports | 1 - SATA Power (15 pin) 1 - 4 pin Small Power (SP4, Floppy) Male |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | 40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% ~ 95% RH |
| Ports | 1 |
| Interface | RJ45 (Gigabit Ethernet) |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Port Style | Integrated on Card |
| Industry Standards | IEEE802.3at Power over Ethernet (25 W) IEEE802.3af Power over Ethernet (15 W) IEEE 802.3bz (2.5GBASE-T) IEEE 802.3ab (1000BASE-T ) IEEE 802.3u (100BASE-TX ) IEEE 802.3i (10BASE-T) |
| Chipset ID | Realtek - RTL8125B |
| LED Indicators | 1 - PoE LED: Green when supplying power 1 - 2.5G <1G LED: 2.5 Gbps Amber 1 Gbps /100 Mbps/10 Mbps Green |
| Package Length | 5.7 in [14.4 cm] |
| Package Width | 8.1 in [20.7 cm] |
| Package Height | 1.5 in [3.8 cm] |
| Shipping (Package) Weight | 7.8 oz [220.0 g] |
| Package Quantity | 1 |
| Maximum Data Transfer Rate | 2500 Mbps |
| Maximum Cable Length | 328.0 ft [100 m] |
| Flow Control | Yes |
| Compatible Networks | 2.5G/1G/100Mbps/10Mbps |
| Auto MDIX | Yes |
| PXE | Yes |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 16K max. |
| Product Length | 3.7 in [9.5 cm] |
| Product Width | 2.5 in [6.3 cm] |
| Product Height | 0.6 in [1.5 cm] |
| Weight of Product | 7.8 oz [220.0 g] |
| Output Voltage | 48 DC |
| OS Compatibility | Windows 11 Windows 10 Windows 8.1 Windows 7 Windows Server 2022 Windows Server 2019 Windows Server 2012 R2 Windows Server 2008 R2 Linux Kernel 2.4.20 and up - LTS Versions only |
| Included in Package | 1 - Network Card 1 - Low-profile Bracket 1 - Quick-start Guide |
| Product type | IO/SCSI/IDE/Card |
| Weight | 1.01 kg |
| Warranty | 12 months |
| Brand | StarTech.com |
|---|---|
| Product Type | IO/SCSI/IDE/Card |
| Weight | 1.01 kg |
| Warranty |
|---|
