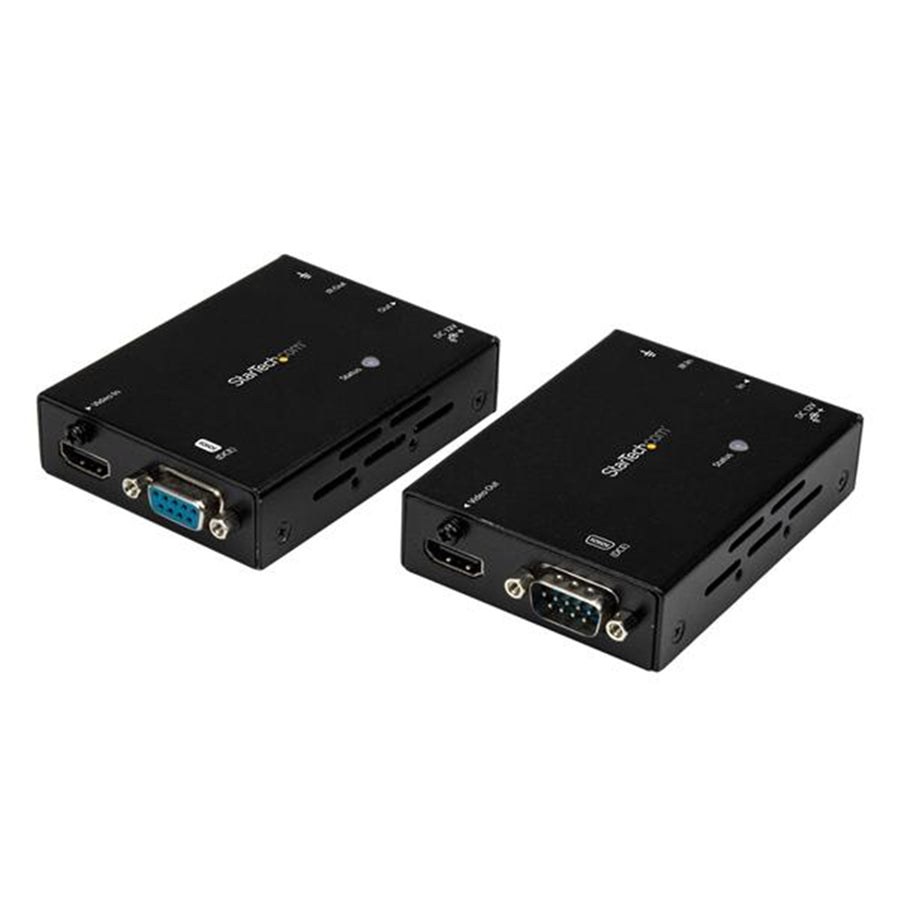

StarTech.com ST121HDBTL
StarTech.com ST121HDBTL
StarTech.com

StarTech.com ST121HDBTL HDMI over CAT5 Extender with IR and Serial - HDBaseT Extender - 4K - ExtendHDMIover CAT6 or CAT5 cabling with RS232 serial and IR control

SKU: ST121HDBTL ● In Stock
$665.22
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

StarTech.com

StarTech.com RKCONS17HD Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

$1,912.17
inc GST ▲ +GST
StarTech.com

StarTech.com ST121HDBT20L HDMI Over CAT6 Extender - Up to 70 m

$852.17
inc GST ▲ +GST
StarTech.com

StarTech.com SV231DPU34K 2 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dell HP Apple Lenovo - TAA Compliant

$699.13
inc GST ▲ +GST
StarTech.com

StarTech.com ST12MHDLNHR HDMI over IP Receiver for ST12MHDLNHK - Video over IP - HDMI over IP Extender - 1080p

$353.04
inc GST ▲ +GST
StarTech.com

StarTech.com SV841HDIE 8 Port Rackmount USB PS/2 Digital IP KVM Switch

$1,417.39
inc GST ▲ +GST

Features

StarTech.com ST121HDBTL HDMI over CAT5 Extender with IR and Serial - HDBaseT Extender - 4K - ExtendHDMIover CAT6 or CAT5 cabling with RS232 serial and IR control

Specifications

Technical Specifications

HARDWARE Audio Yes Cabling Cat 5e UTP or better Daisy-Chain Yes Ports 1
PERFORMANCE Audio Specifications 7.1 Surround Sound Max Distance 70 m / 230 ft Maximum Cable Length 229.6 ft [70 m] Maximum Digital Resolutions 4096 x 2160 (4K) @ 30 Hz (35 meters) 1920 x 1080
CONNECTOR(S) Local Unit Connectors 1 - HDMI (19 pin) Female Input 1 - DB 9-pin Serial Male 1 - RJ-45 Female Output 1 - 3.5 mm Mini-Jack (3 Position) Female Remote Unit Connectors 1 - HDMI (19 p
SPECIAL NOTES / REQUIREMENTS Note If you want to add more displays, you can daisy chain this product with the HDBaseT repeater ST121HDBTRP.
INDICATORS LED Indicators 1 - status LED (transmitter) 1 - status LED (receiver)
POWER Center Tip Polarity Positive Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage 12 DC Plug Type M Power Consumption (In Watts) 18 Power Source AC Ad
ENVIRONMENTAL Humidity 0% - 80 % Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -10°C to 60°C (14°F to 140°F)
PHYSICAL CHARACTERISTICS Color Black Enclosure Type Steel and Plastic Product Height 1.1 in [2.7 cm] Product Length 3.6 in [92 mm] Product Width 2.6 in [66 mm] Weight of Product 16 oz [452 g]
PACKAGING INFORMATION Package Height 2.8 in [70 mm] Package Length 11.1 in [28.1 cm] Package Width 7.6 in [19.4 cm] Shipping (Package) Weight 2.4 lb [1.1 kg]
WHAT'S IN THE BOX Included in Package 1 - HDBaseT transmitter 1 - HDBaseT receiver 1 - universal power adapter (NA, EU, UK, ANZ) 1 - IR receiver 1 - IR blaster 1 - CAT5 cable 2 - mounting brackets 8
Warranty 12 months
